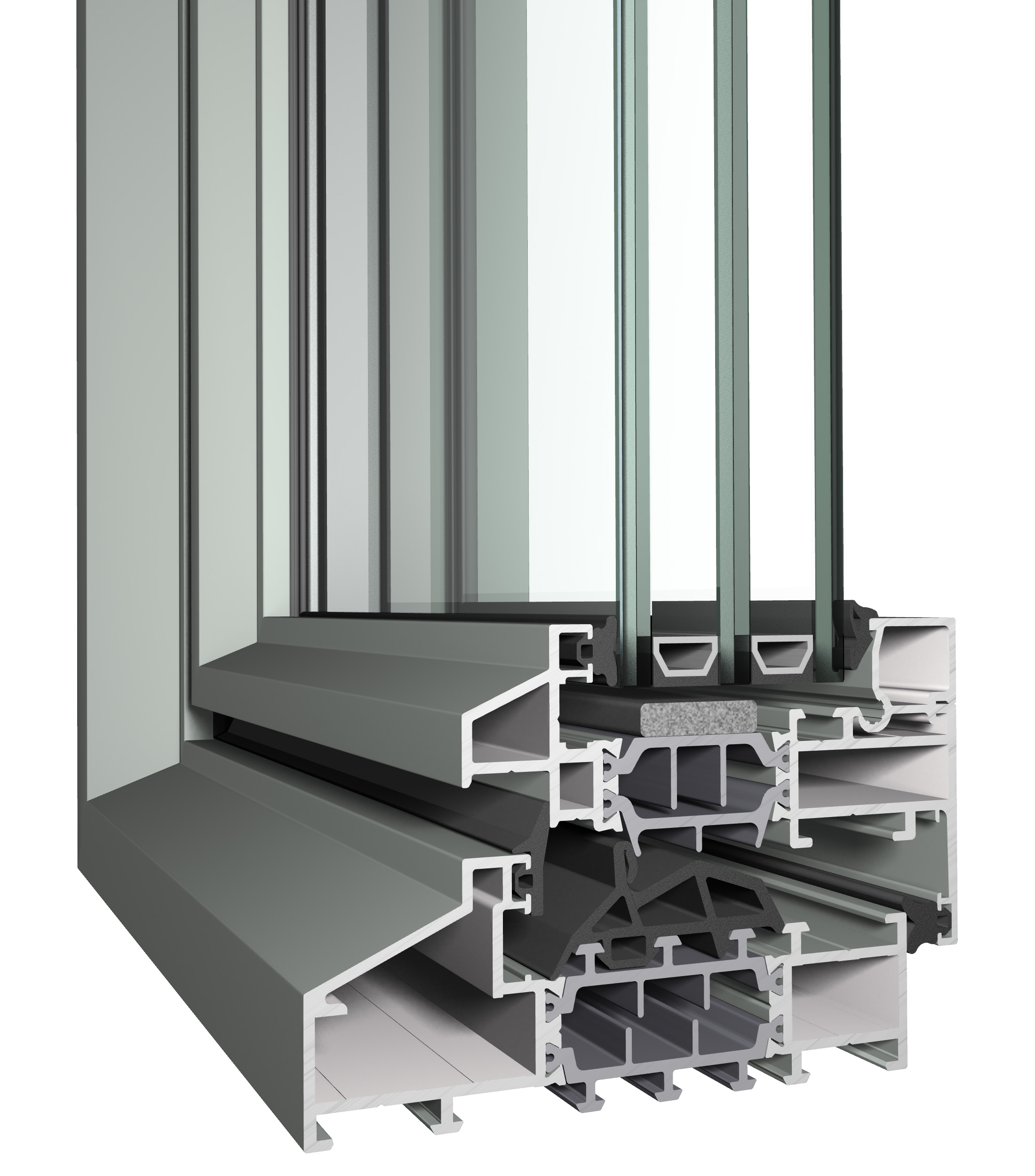

Reynaers SlimLine 38 aluminum windows ans doors system
Thermal insulation
Uw = 0.96 W/m²K
Air permeability
Class 4 (600 Pa)
Watertightness
Class 9A (600 Pa)
Wind load resistance
Class C4 (1600 Pa)
Description
Reynaers SlimLine 38 - Where Heritage Meets High Performance The Reynaers SlimLine 38 reimagines architectural finesse with its ultra-slim, steel-inspired aluminum profiles-blending vintage charm with contemporary precision. Designed for spaces where slender sightlines are essential, this high-insulation window system delivers a sleek, minimalist aesthetic without forfeiting structural integrity or thermal performance. Equally at home in heritage renovations and avant-garde builds, SlimLine 38 merges form with function-offering superior energy efficiency and robust security in a design that whispers sophistication.
Advantages
Ultra-slim profiles (as narrow as 33.5 mm), providing maximum natural light and unobstructed views.
High thermal insulation performance with Uw values as low as 0.96 W/m²K, suitable for energy-efficient buildings.
Excellent air, water, and wind resistance, ensuring durability in various weather conditions.
Enhanced security features with burglar resistance up to RC2, and options for fire-resistant variants.
Accommodates large vent sizes up to 2800 mm in height and 1200 mm in width, with a maximum weight of 170 kg, allowing for expansive glazing areas.
Compatible with various glazing methods and thicknesses, supporting glass thicknesses up to 55 mm, providing flexibility in design and performance.
Certificates

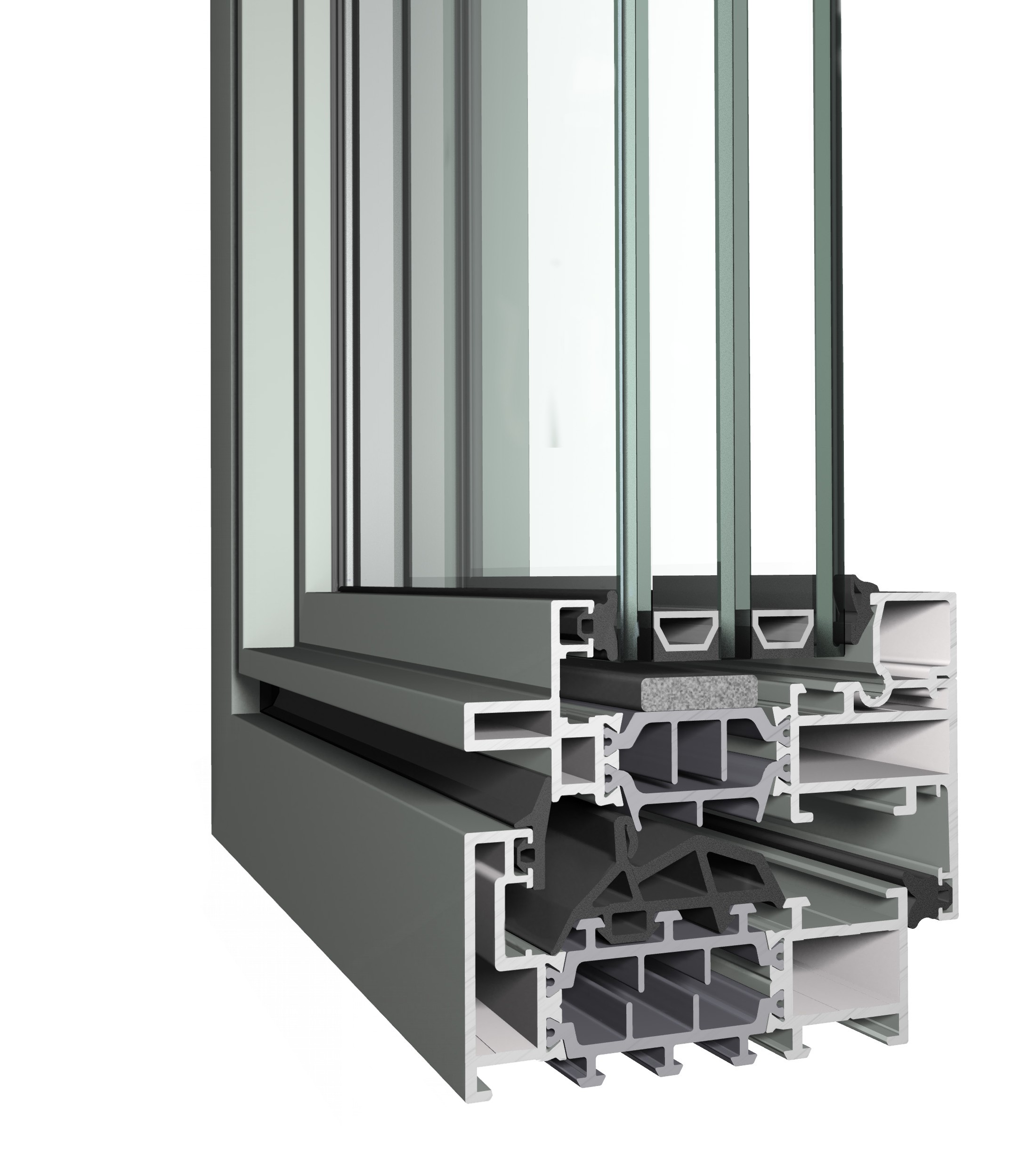

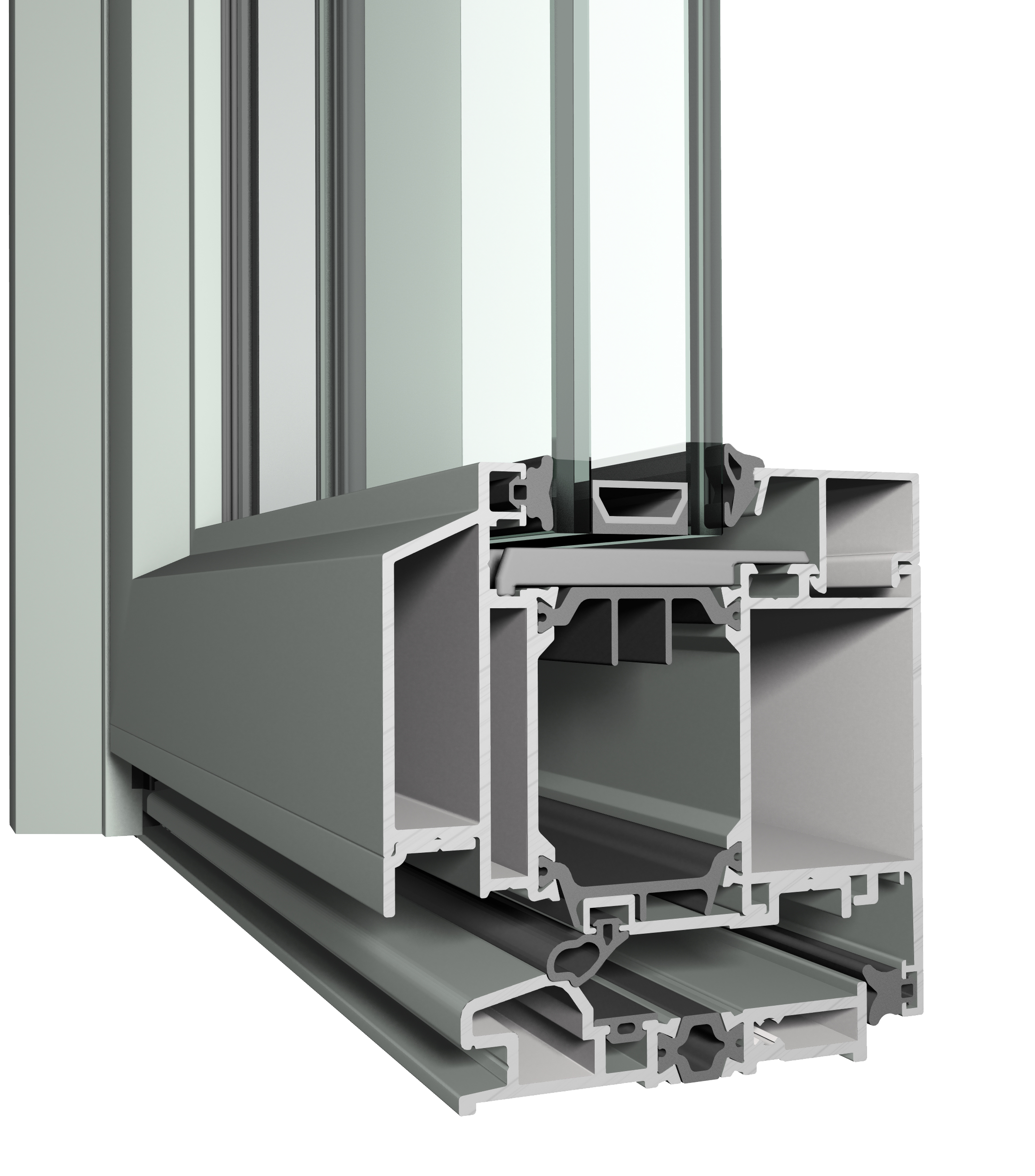

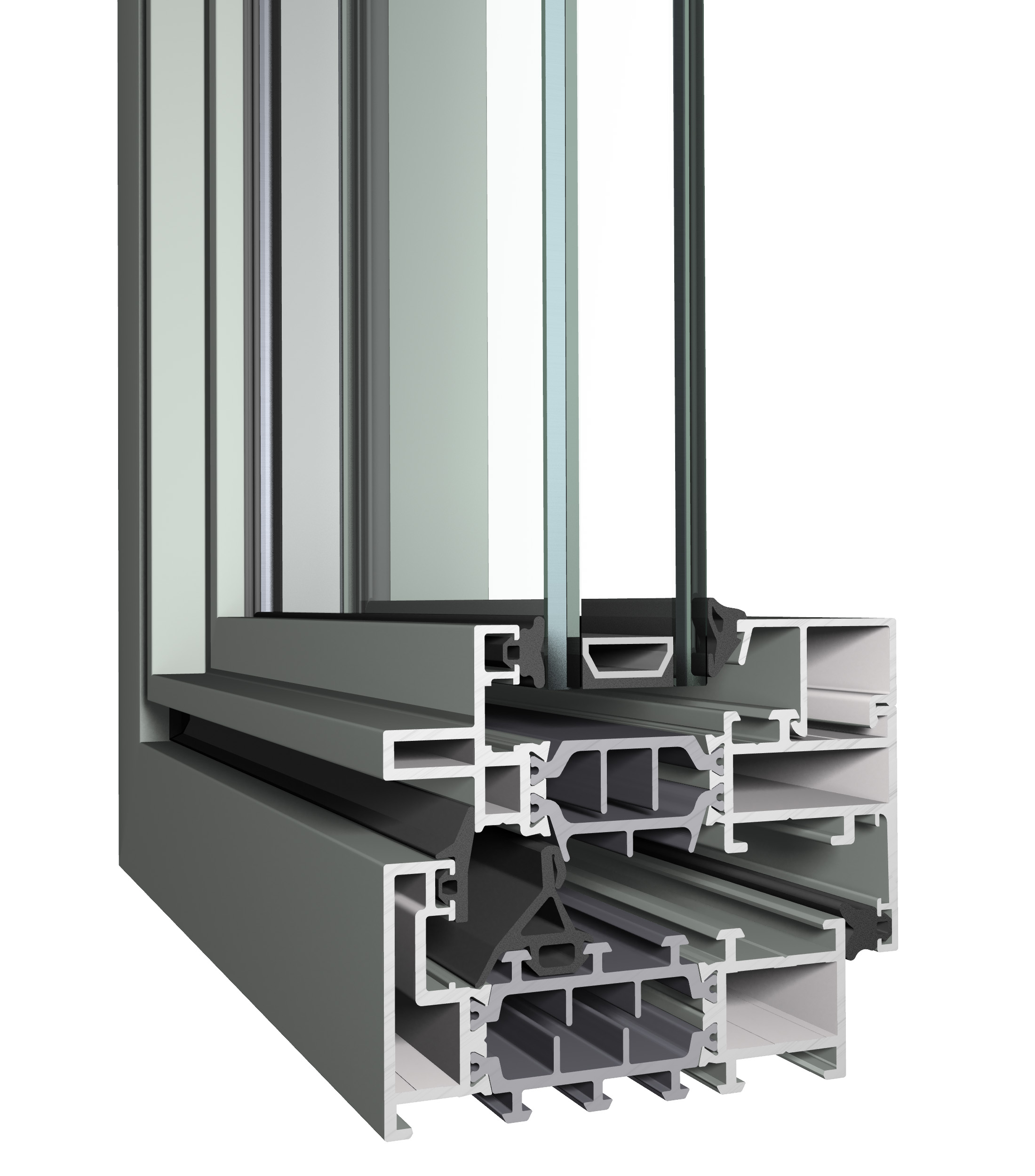

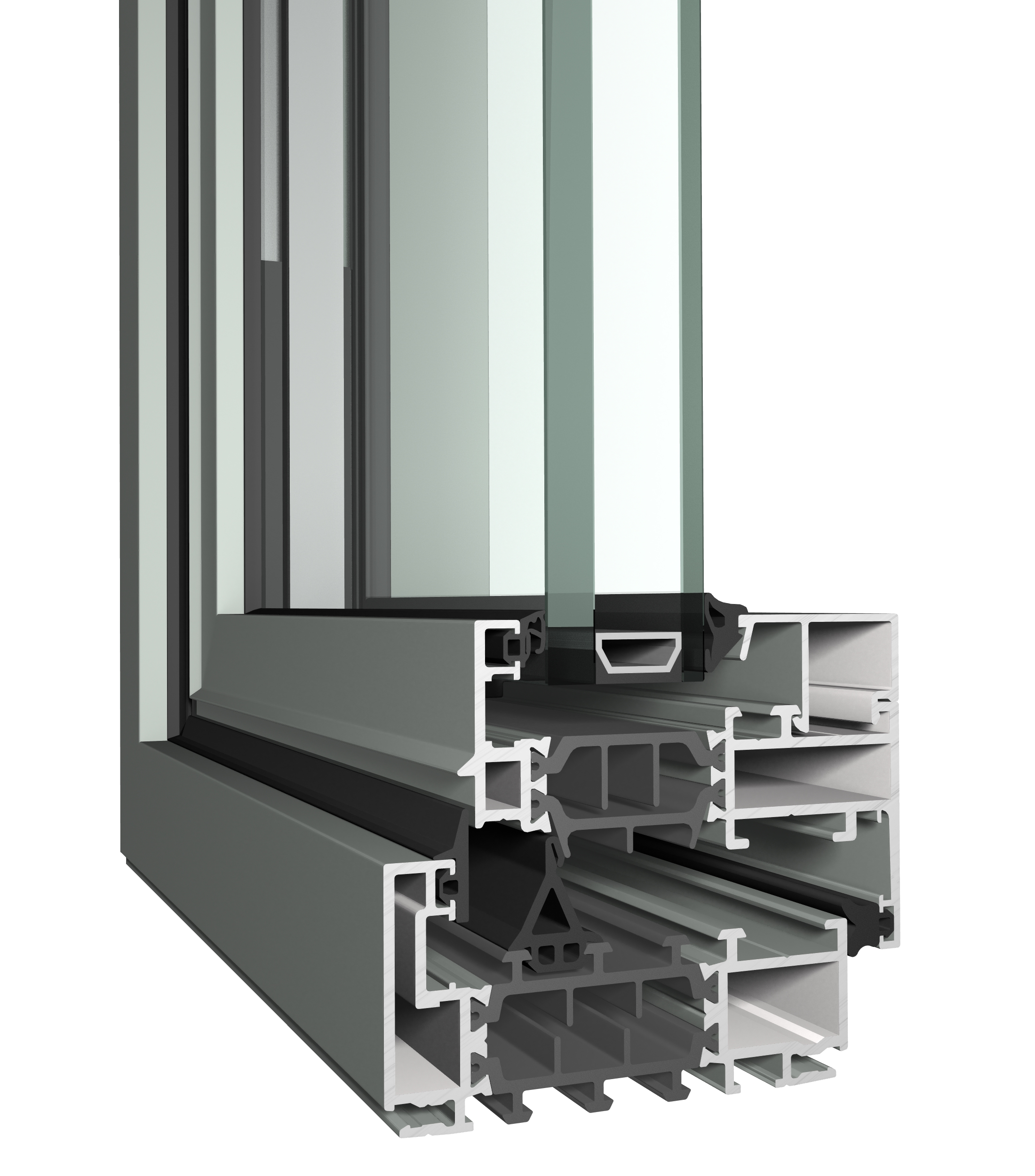

Technical Characteristics
Min. height of vent
600 mm
Max. height of vent
2800 mm
Min. width of vent
450 mm
Max. width of vent
1200 mm
Max. weight of vent
170 kg
Min. frame width (inward opening)
33.5 mm
Min. vent width (inward opening)
23 mm
Min. frame-vent width (inward opening)
67 mm
Min. frame width (outward opening)
29 mm
Min. vent width (outward opening)
60.5 mm
Min. frame-vent width (outward opening)
80 mm
Min. width transom profile
48 mm
Profile design slope
24.2 degrees
Depth frame
99 mm
Depth Vent
86 mm
Depth frame-vent
99 mm
Rebate height
13.5 mm
Performance
Thermal insulation (Best) - Uf
1.9 W/m²K
Thermal insulation - Uw
0.96 W/m²K
Uw Dependencies
Ug 0.6W/m²K,
Air tightness
Class 4 (600Pa)
Water tightness
Class 9A (600Pa)
Wind load resistance
Class C4 (1600Pa)
Acoustics - Rw(C;Ctr)
45(-1,-5) dB
Durability
Class 3 (20000 cycles)
Burglar resistance
PAS 24 - RC2
Fire resistance
EW 30
