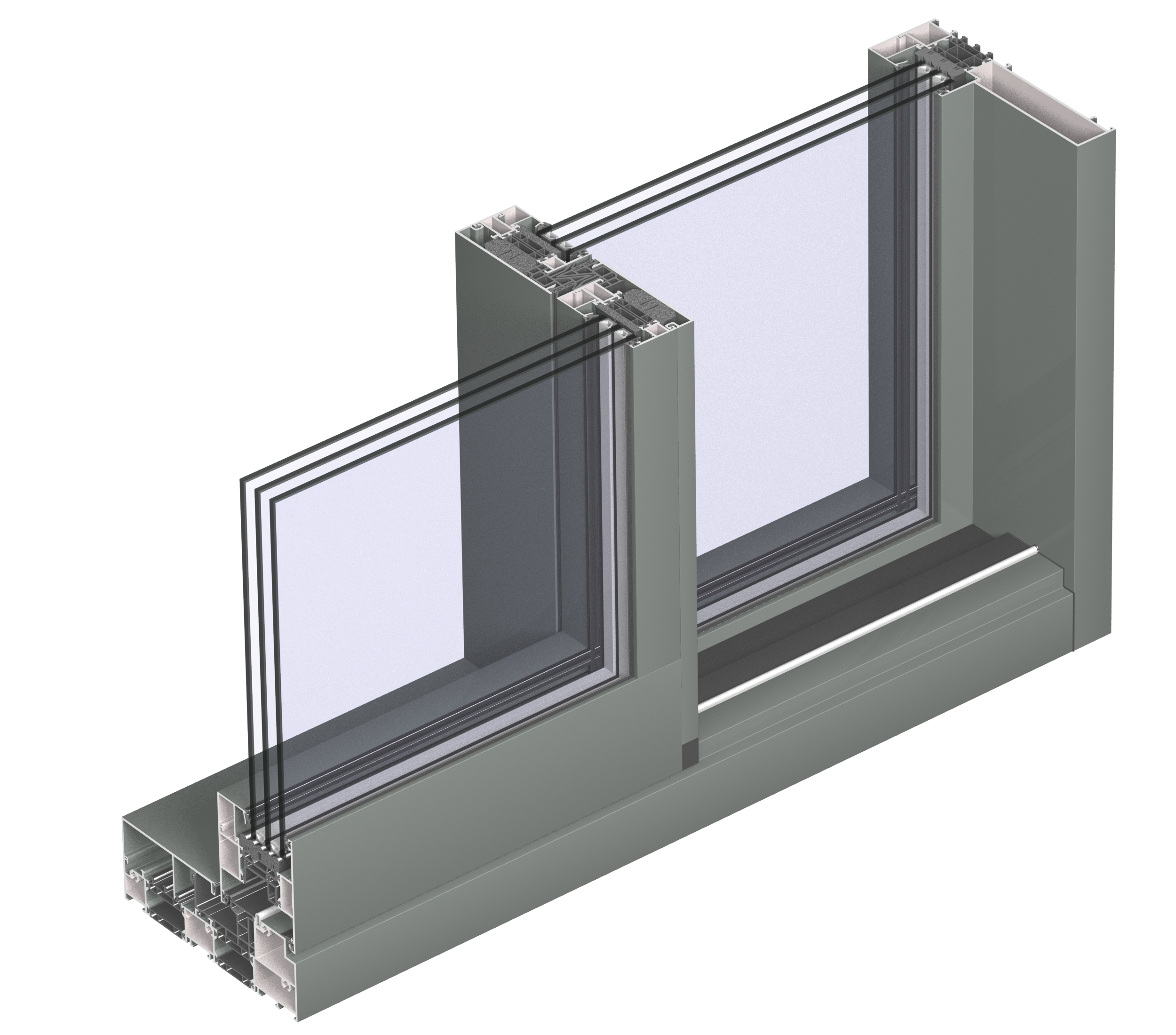

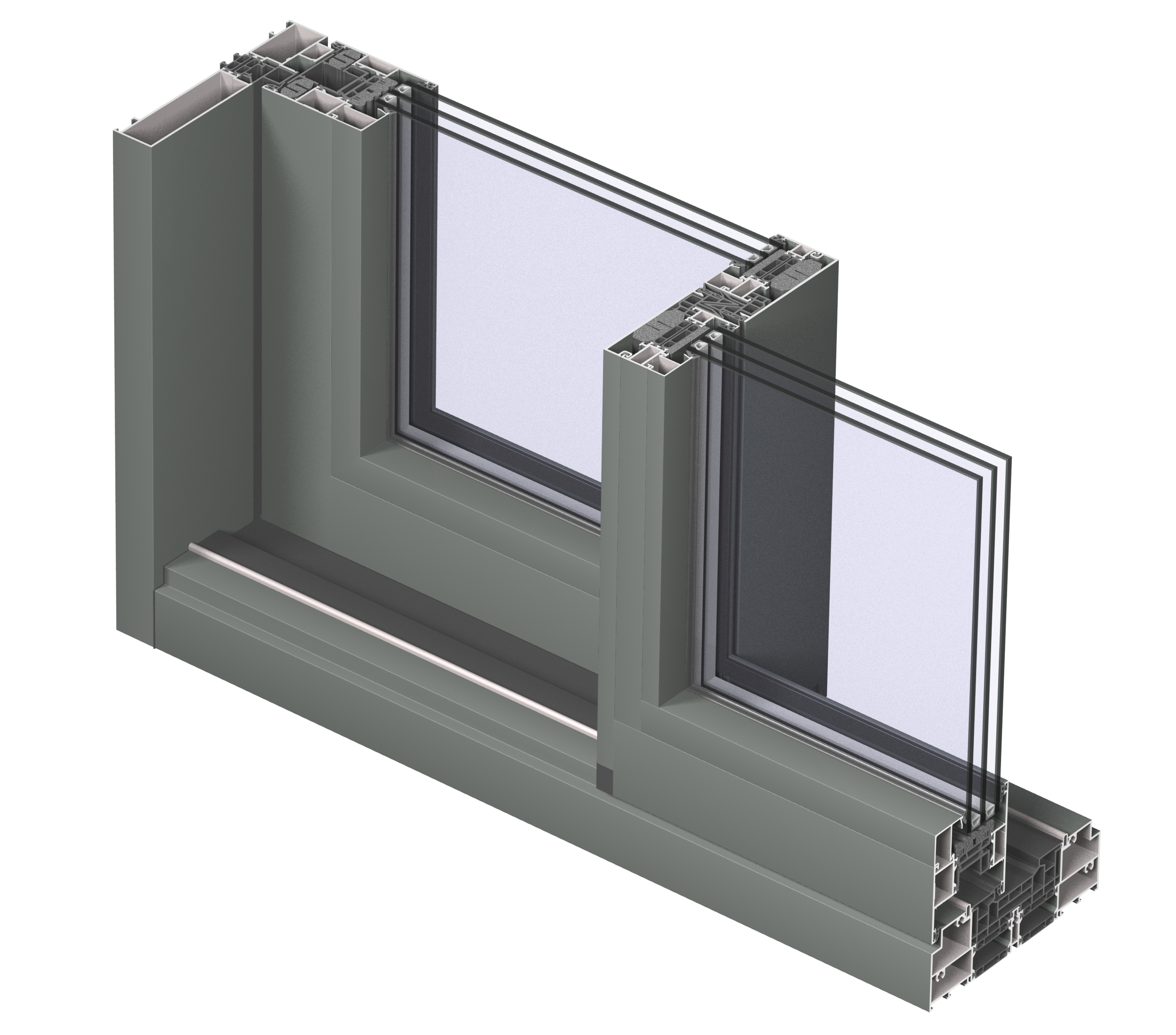

Reynaers MasterPatio aluminum sliding system
Thermal insulation
Uw = 0.8 W/m²K
Air permeability
Class 4 (600 Pa)
Watertightness
Class E1200 (1200 Pa)
Wind load resistance
Class C5 (2000 Pa)
Description

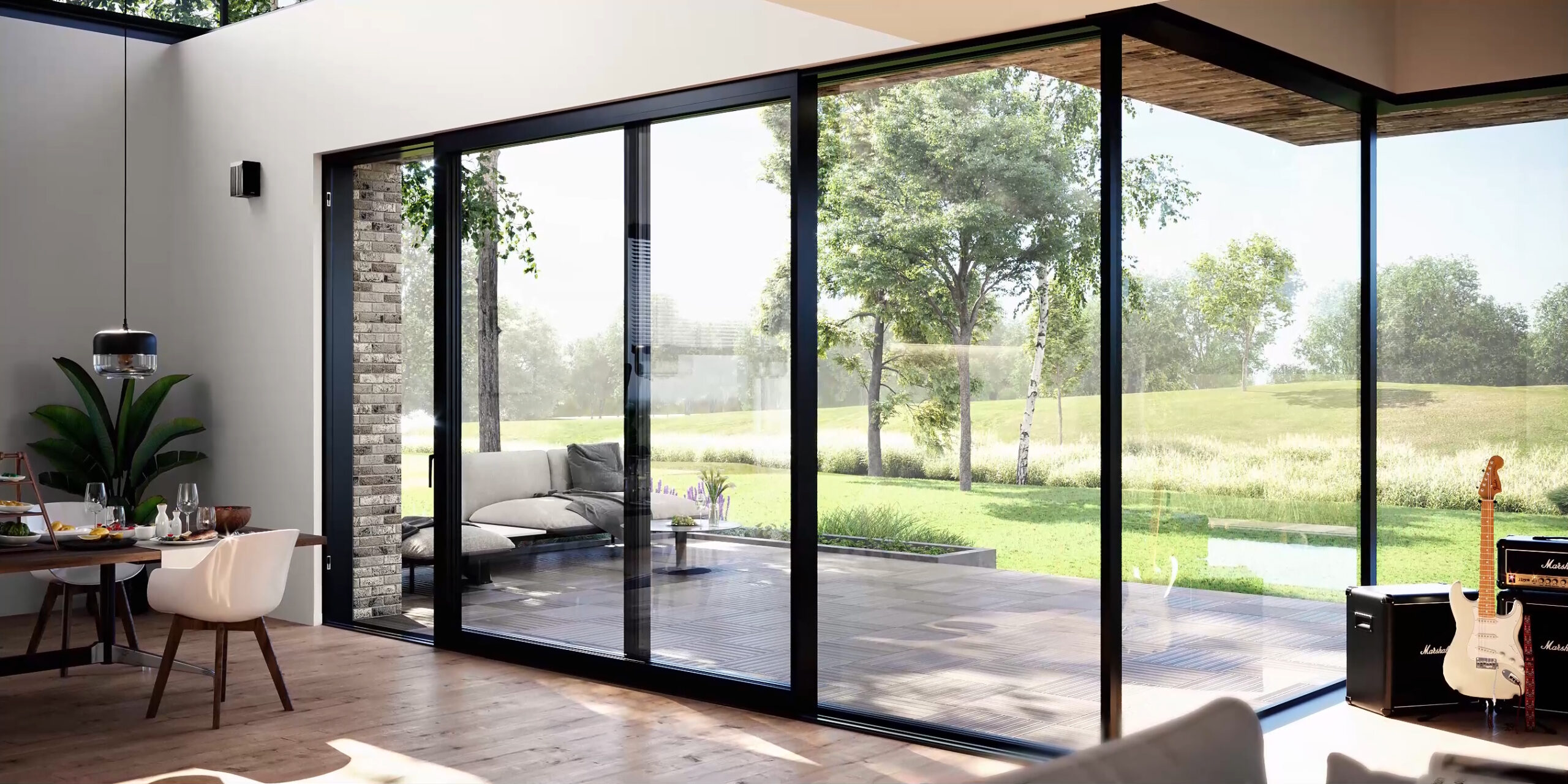

The Reynaers MasterPatio is a high-performance aluminum sliding door system designed for large openings, offering excellent thermal insulation, air and water tightness, and wind resistance. Its minimalist design with slim sightlines ensures maximum transparency and natural light, making it ideal for modern architectural projects.
Advantages
High thermal insulation performance (Uw = 0.8 W/m²K), suitable for energy-efficient buildings.
Excellent air, water, and wind resistance, ensuring durability in various weather conditions.
Supports large glass panels up to 3600 mm in height and 3000 mm in width, with vent weights up to 500 kg.

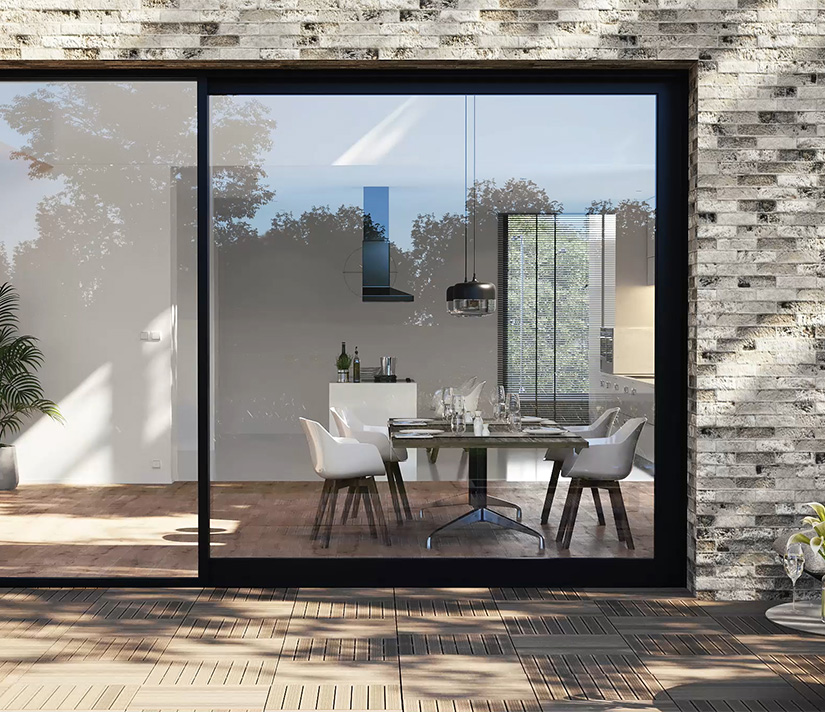

Minimalist design with slim sightlines (50 mm meeting section), providing unobstructed views and maximum natural light.
Compatible with smart home systems, offering options like motorization and access control for enhanced convenience.
Clean, consistent and contemporary look for a complete façade solution
Certificates

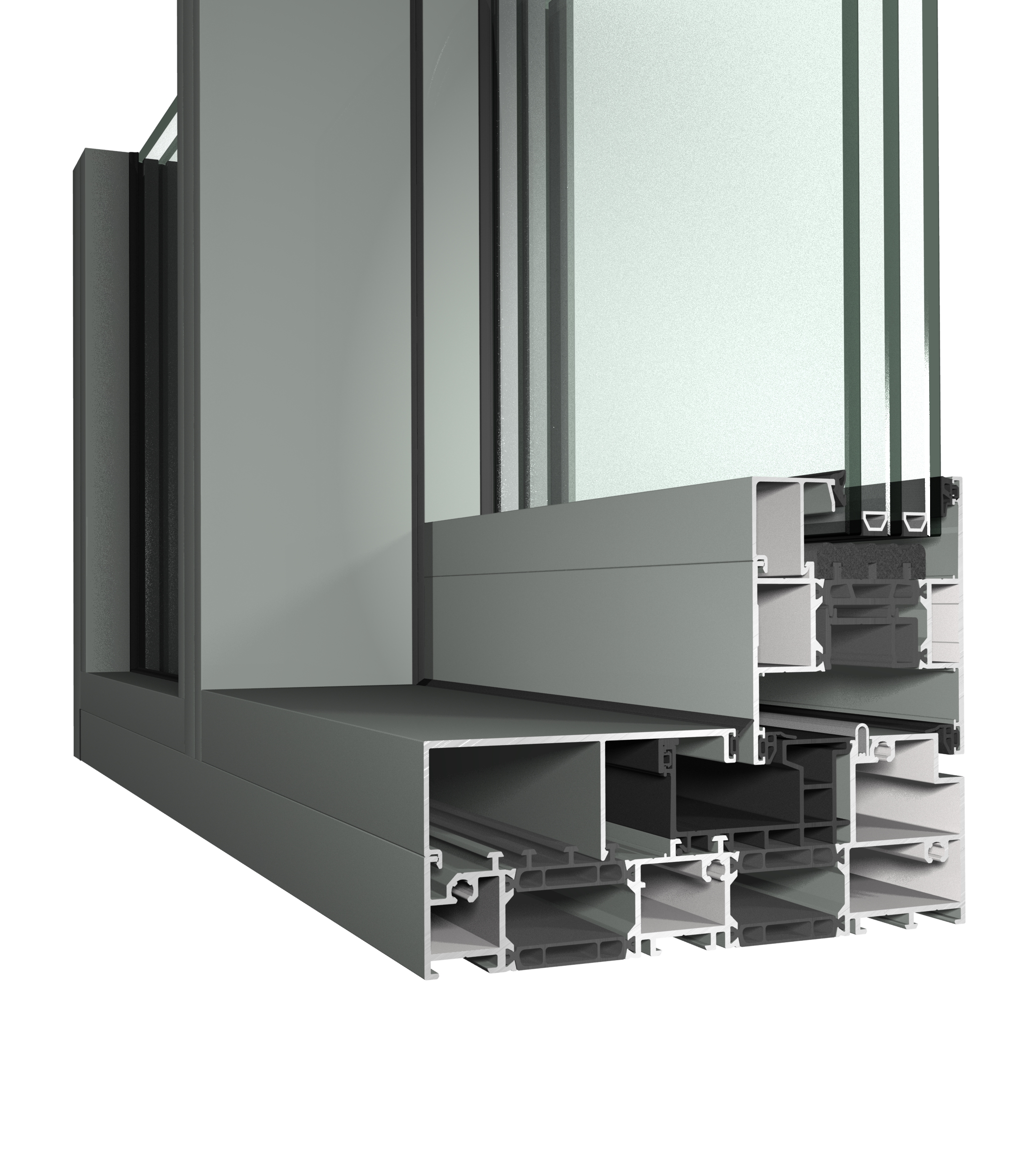

Technical Characteristics
Min. height of vent
1800 mm
Max. height of vent
3600 mm
Min. width of vent
700 mm
Max. width of vent
3000 mm
Max. weight of vent
500 kg
Max. weight of fixed vent
1200 kg
Min. width central closer
181 mm
Min. width meeting section
50 mm
Min. width transom profile
50 mm
Min. height threshold
4 mm
Depth Vent
77 mm
Depth frame-vent
180 mm
Depth frame monorail
180 mm
Depth frame 2-rail
180 mm
Depth frame 3-rail
283 mm
Min. glass thickness - vent
16 mm
Max. glass thickness - vent
62 mm
Rebate height
27 mm
Performance
Thermal insulation - Uw
0.8 W/m²K
Uw Dependencies
Ug 0.6W/m²K
Air tightness
Class 4 (600Pa)
Water tightness
Class E1200 (1200Pa)
Wind load resistance
Class C5 (2000Pa)
Acoustics - Rw(C;Ctr)
44(-1;-4) dB
Durability
Class 4 (50000 cycles)
