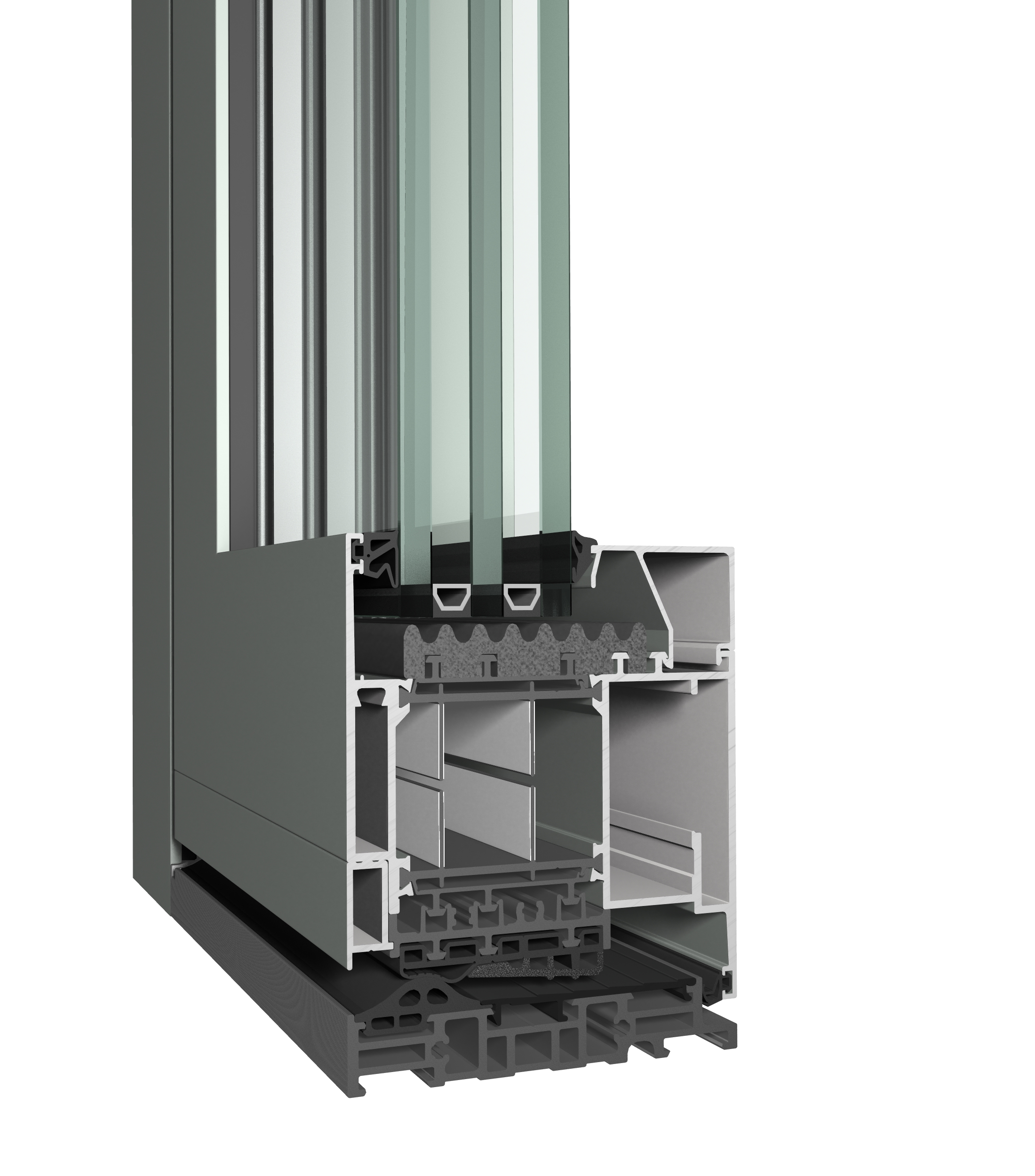

Reynaers MasterLine 10 aluminum doors and windows systems
Thermal insulation
Uw = 0.80 W/m²K
Air permeability
Class 4 (600 Pa)
Watertightness
Class E900 (900 Pa)
Wind load resistance
Class C4 (1600 Pa)
Burglar resistance
RC2 – RC3
Description
Reynaers MasterLine 10 – Passive Power, Precision Built Masterfully engineered for the architecture of tomorrow, the Reynaers MasterLine 10 window system sets a new benchmark in energy-efficient design. Tailored to exceed the rigorous standards of passive house construction, this aluminum solution offers unrivalled thermal insulation, airtight precision, and advanced water resistance—all encased in a sleek, durable frame. Its reinforced security options and design adaptability make it ideal for projects where sustainability, performance, and safety are non-negotiable. MasterLine 10 doesn’t just meet modern expectations—it redefines them.
Advantages
Exceptional thermal insulation with Uw values as low as 0.78 W/m²K, suitable for passive house standards.
High air, water, and wind resistance ratings ensure durability and comfort in various weather conditions.
Enhanced security features with burglar resistance up to RC3.
Supports large vent sizes up to 2800 mm in height and 1200 mm in width, accommodating expansive glazing areas.
Compatible with various glazing methods and thicknesses up to 88 mm, allowing for diverse design and performance requirements.

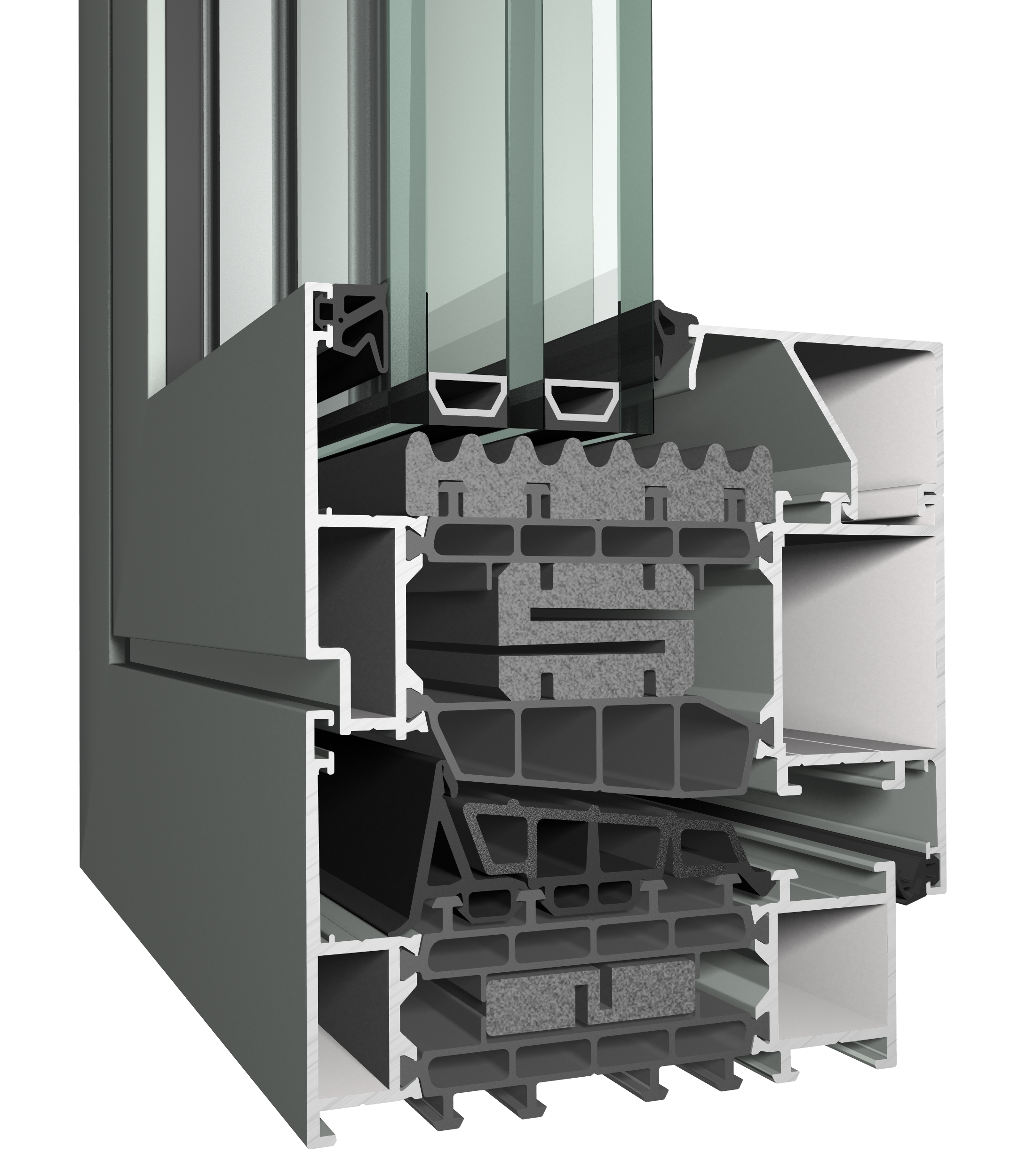

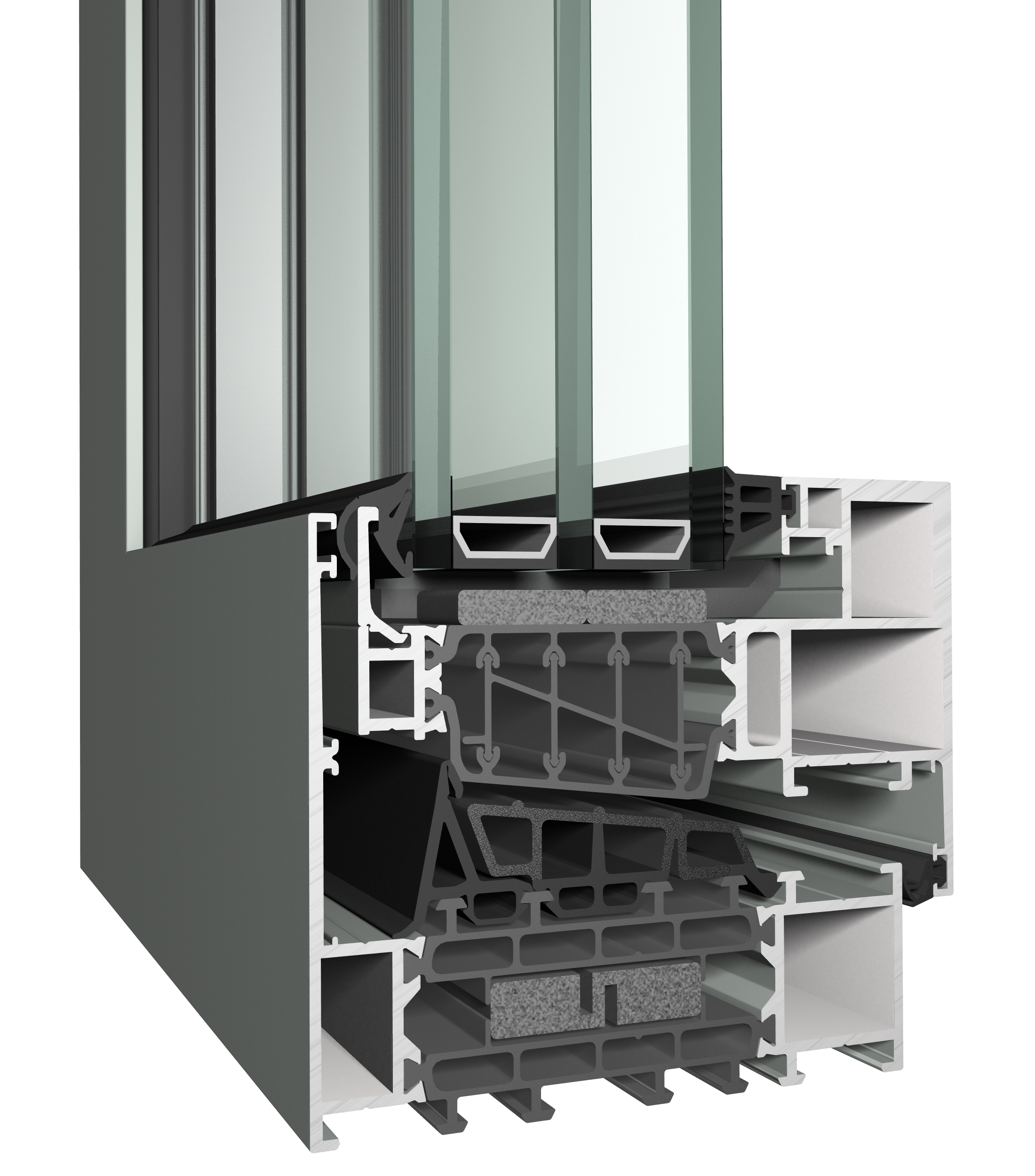

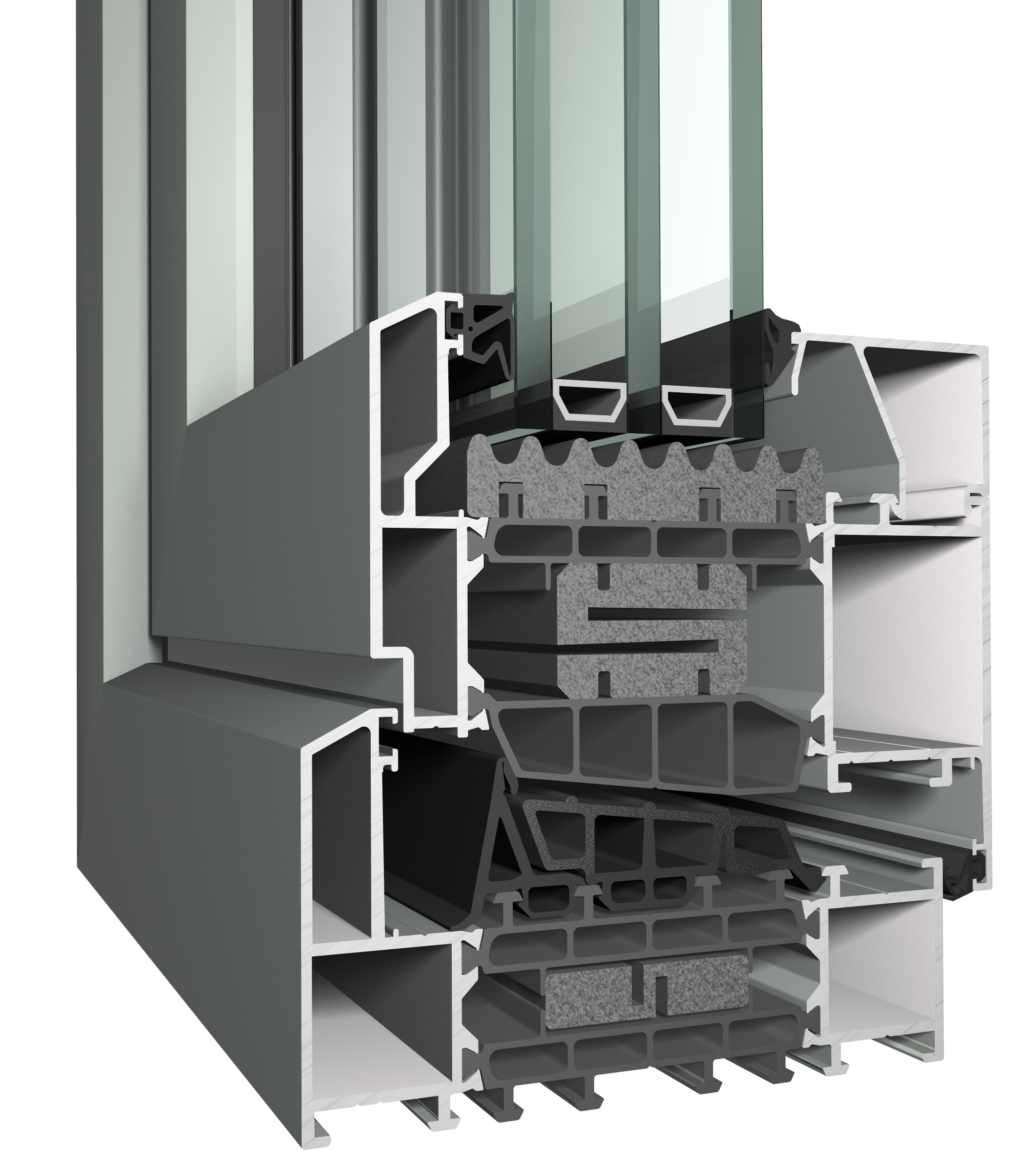

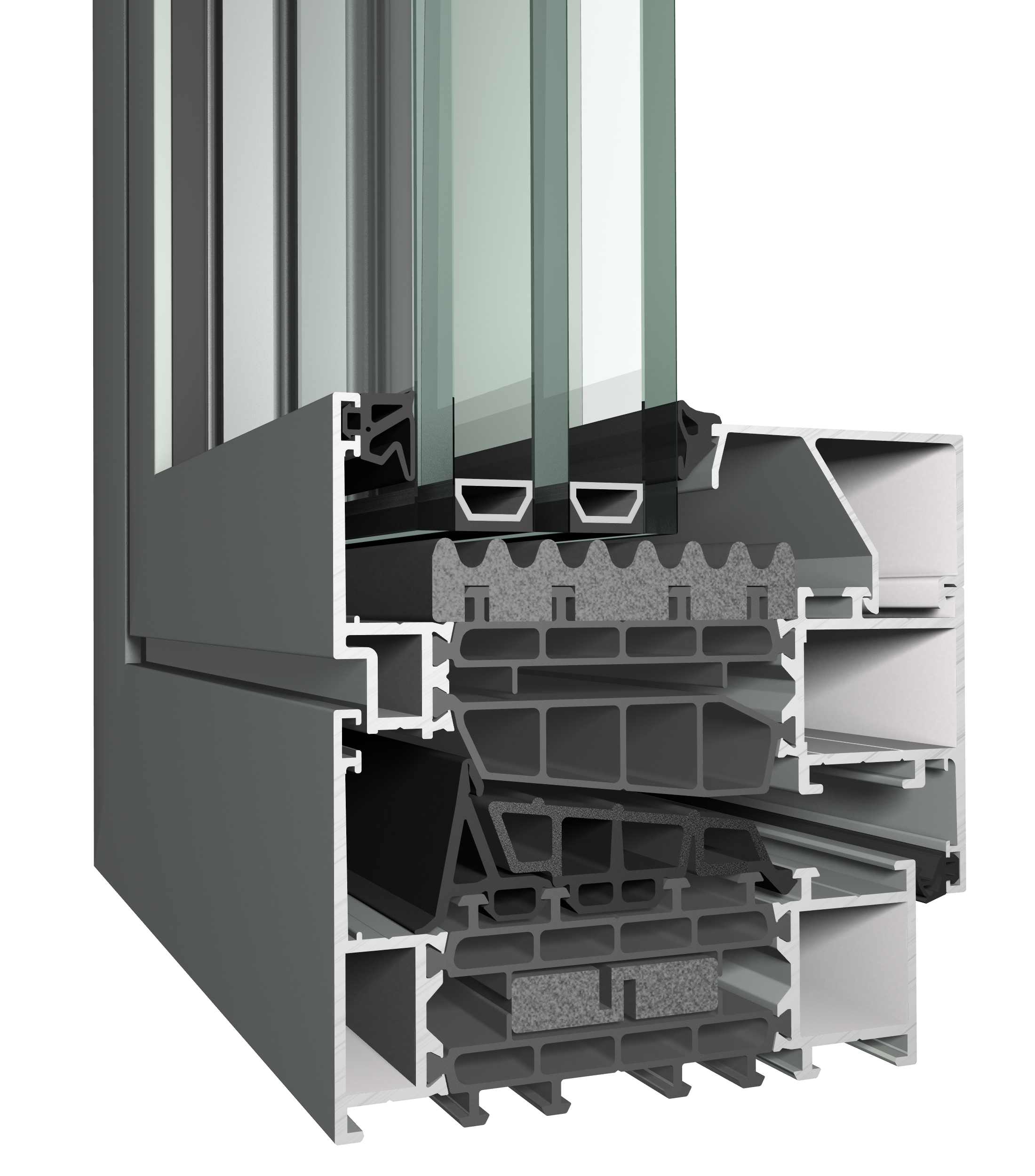

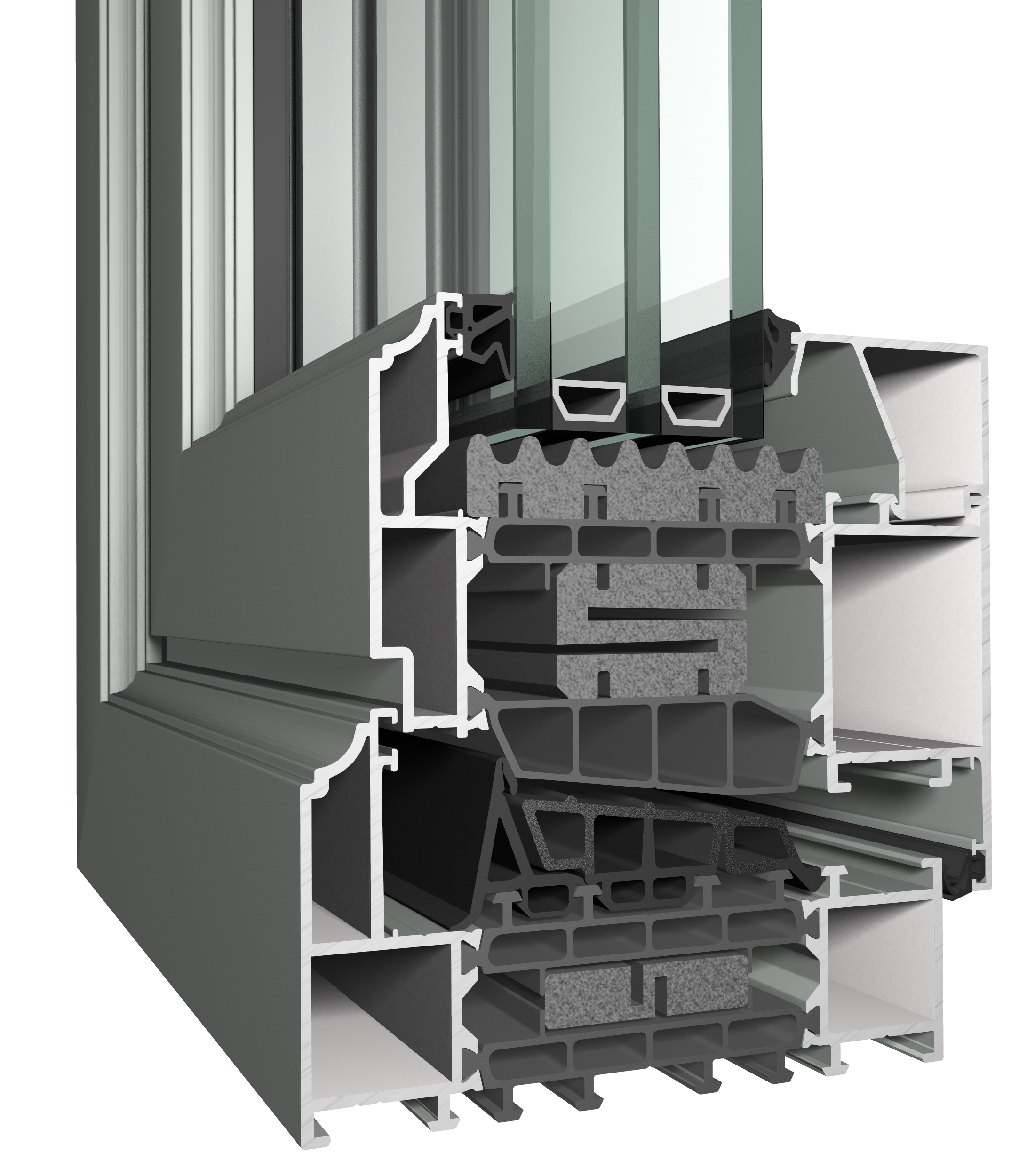

Offers multiple design variants, including Functional, Deco, Hidden Vent, and Renaissance, catering to diverse architectural styles.
Technical Characteristics
Min. height of vent
600 mm
Max. height of vent
2800 mm
Min. width of vent
550 mm
Max. width of vent
1200 mm
Max. weight of vent
200 kg
Max. weight of glass
800 kg
Min. frame width (inward opening)
60 mm
Min. vent width (inward opening)
37 mm
Min. frame-vent width (inward opening)
104 mm
Min. frame width (outward opening)
27 mm
Min. vent width (outward opening)
113 mm
Min. frame-vent width (outward opening)
140 mm
Min. width transom profile
87 mm
Depth frame
97 mm
Depth Vent
107 mm
Depth frame-vent
107 mm
Performance
Thermal insulation (Best) - Uf
0.99 W/m²K
Thermal insulation - Uw
0.8 W/m²K
Uw Dependencies
Ug 0.6W/m²K
Air tightness
Class 4 (600Pa)
Water tightness
Class E900 (900Pa)
Wind load resistance
Class C4 (1600Pa)
Acoustics - Rw(C;Ctr)
DC: 44(-2;-4) dB
Durability
Class 3 (20000 cycles)
Min. glass thickness
20 mm
Max. glass thickness
78 mm
Min. glass thickness - vent
30 mm
Max. glass thickness - vent
88 mm
Rebate height
27 mm
