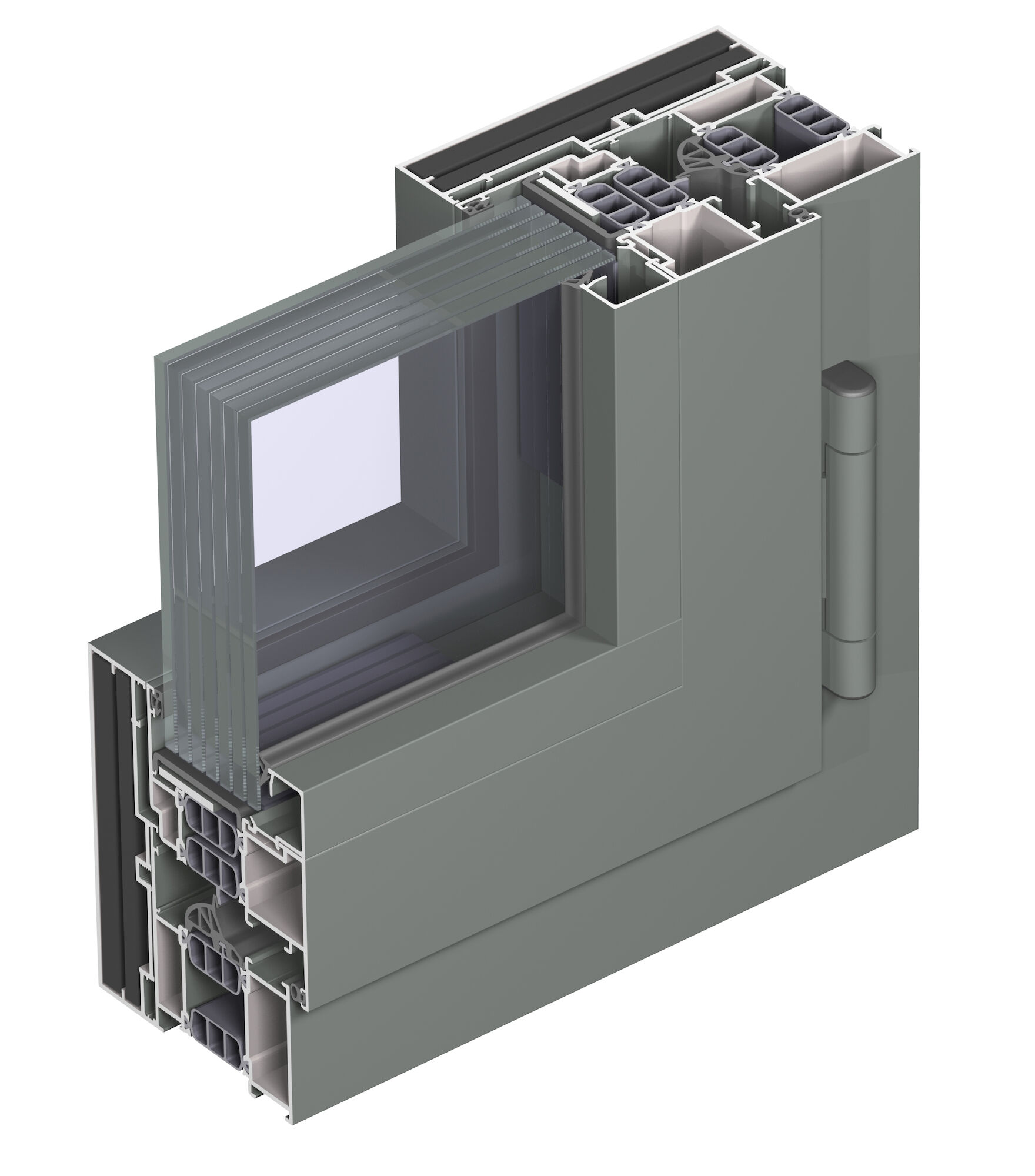

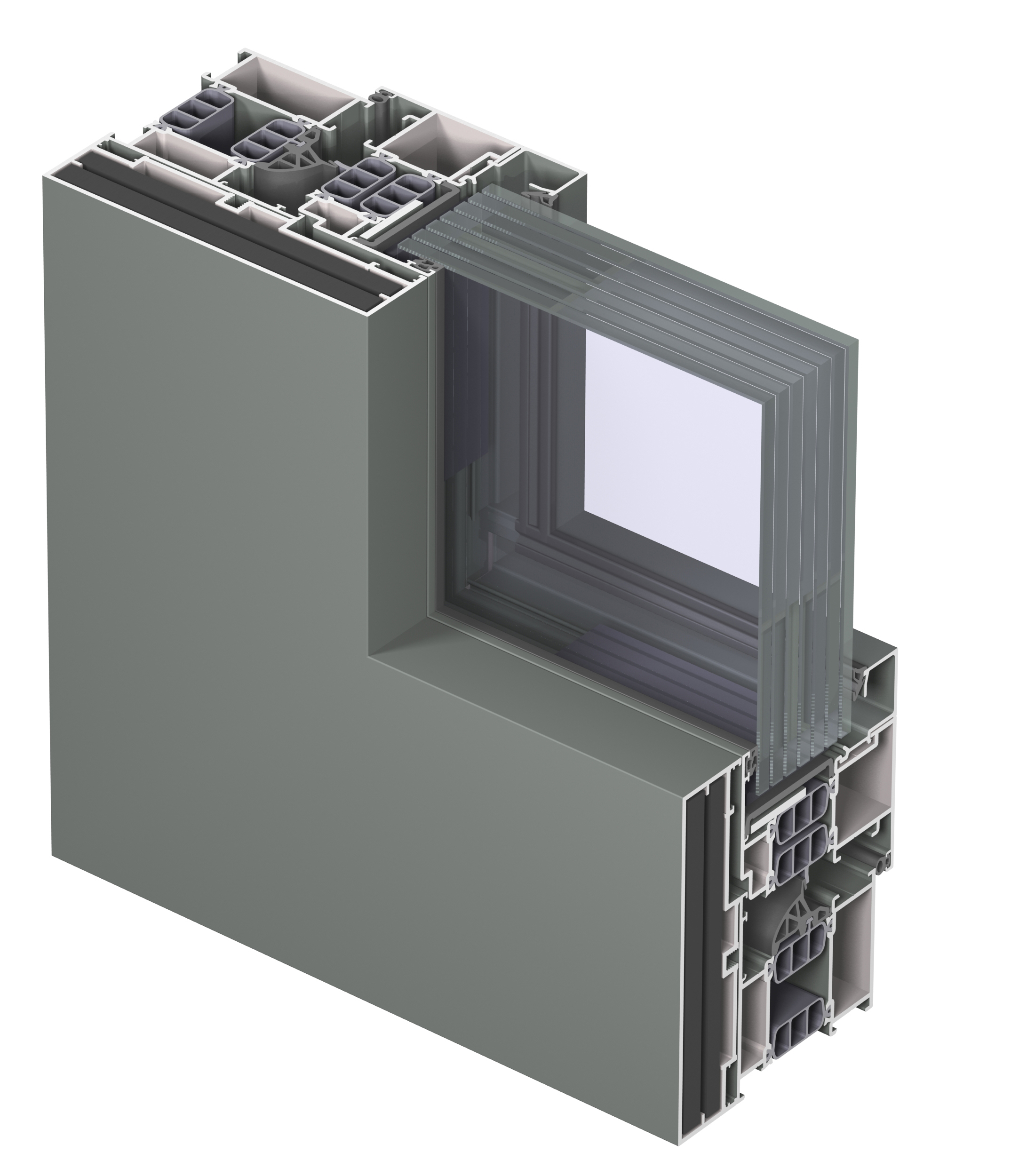

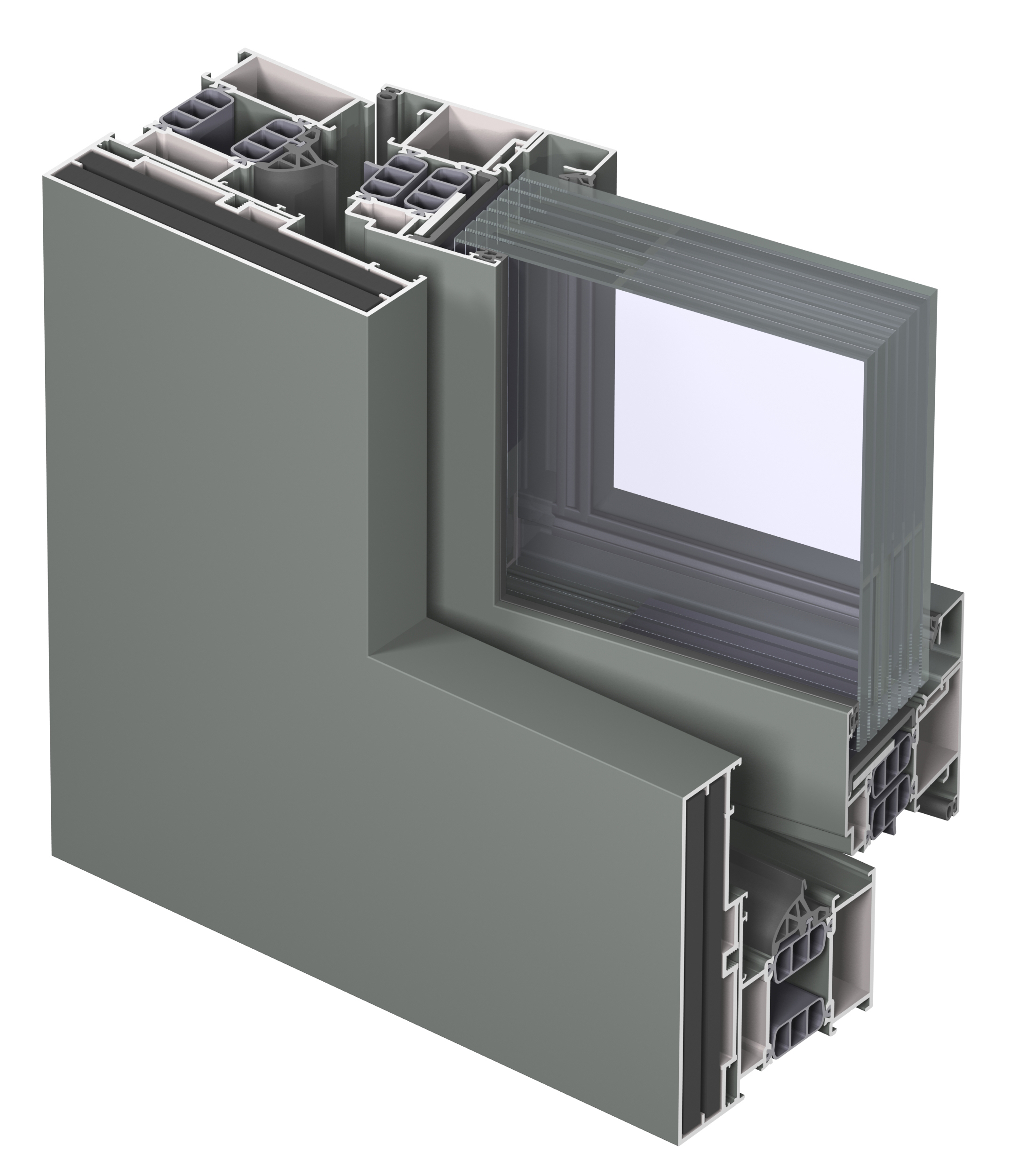

Reynaers ConceptSystem 77 aluminum window and door system

Description

Reynaers ConceptSystem 77 - Precision Engineering Meets Secure Elegance The Reynaers CS 77 system fuses architectural versatility with high-level performance, delivering a refined aluminum window and door solution tailored for exceptional thermal insulation and elevated security. Meticulously crafted for projects that demand both aesthetic adaptability and structural integrity, CS 77 seamlessly adapts to diverse design languages-from cutting-edge modernism to classic facades. Engineered with security in mind, the system is available in specialized variants, including bullet-resistant and fire-retardant models. This ensures uncompromising protection, while maintaining comfort, style, and energy efficiency in residential, commercial, or high-security environments.

Advantages

Excellent thermal insulation with Uw values as low as 1.3 W/m²K, contributing to energy efficiency.

High levels of air, water, and wind resistance, ensuring durability and comfort in various weather conditions.

Enhanced security features with burglar resistance up to RC3, and options for bulletproof and fire-resistant variants.

Wide range of design possibilities, including inward and outward opening configurations, suitable for various building types.

Accommodates large vent sizes up to 2800 mm in height and 1700 mm in width, with a maximum weight of 170 kg, allowing for expansive glazing areas.

Compatible with various glazing methods and thicknesses, supporting glass thicknesses up to 63 mm, providing flexibility in design and performance.

Certificates

Technical Characteristics

Min. height of vent

600 mm

Max. height of vent

2800 mm

Min. width of vent

450 mm

Max. width of vent

1200 mm

Max. weight of vent

170 kg

Min. frame width (inward opening)

51 mm

Min. vent width (inward opening)

33 mm

Min. frame-vent width (inward opening)

89 mm

Min. frame width (outward opening)

17.5 mm

Min. vent width (outward opening)

76 mm

Min. frame-vent width (outward opening)

93.5 mm

Min. width transom profile

76 mm

Depth frame

68 mm

Depth Vent

77 mm

Depth frame-vent

77 mm

Performance

Thermal insulation (Best) - Uf

1.8 W/m²K

Thermal insulation - Uw

1.3 W/m²K

Uw Dependencies

Ug 1.0W/m²K

Air tightness

Class 4 (600Pa)

Water tightness

Class E900 (900Pa)

Wind load resistance

Class C5 (2000Pa)

Acoustics - Rw(C;Ctr)

42(-2; -4) dB

Durability

Class 3 (20000 cycles)

Characteristics

Burglar resistance

PAS 24 - RC2 - RC3

Fire resistance

EW 30

Bullet resistance

FB4 - FSG

RAL-1013

RAL-3005

RAL-5010

RAL-6005

RAL-6009

RAL-7005

RAL-7015

RAL-7016

RAL-7024

RAL-7030

RAL-7032

RAL-7035

RAL-7036

RAL-7037

RAL-7039

RAL-7040

RAL-7042

RAL-7043

RAL-8014

RAL-8017

RAL-9005

RAL-9006

RAL-9007

RAL-9010

RAL-9016

RAL-1013 MATT

RAL-1019 MATT

RAL-1035 MATT

RAL-5014 MATT

RAL-6009 MATT

RAL-6013 MATT

RAL-7006 MATT

RAL-7009 MATT

RAL-7015 MATT

RAL-7016 MATT

RAL-7021 MATT

RAL-7022 MATT

RAL-7024 MATT

RAL-7030 MATT

RAL-7035 MATT

RAL-7037 MATT

RAL-7039 MATT

RAL-7044 MATT

RAL-8011 MATT

RAL-8014 MATT

RAL-8019 MATT

RAL-9005 MATT

RAL-9010 MATT

RAL-9011 MATT

RAL-9016 MATT

RAL 3005
