Schüco Sliding and Lift-and-Slide System ASE 80.HI
Thermal insulation
1.8 W/(m²·K)
Air permeability
Class 4
Watertightness
Up to 900 Pa
Wind load resistance
Up to class C5/B5
Burglar resistance
RC 2
Description
The Schüco ASE 80.HI emerges as an exemplar of thermally superior engineering, sculpted for forward-thinking, eco-conscious design-meeting the meticulous standards of passive house performance. This sliding and lift-and-slide system is not just a structural element; it's an invitation to merge sustainability with sensory elegance.
Advantages

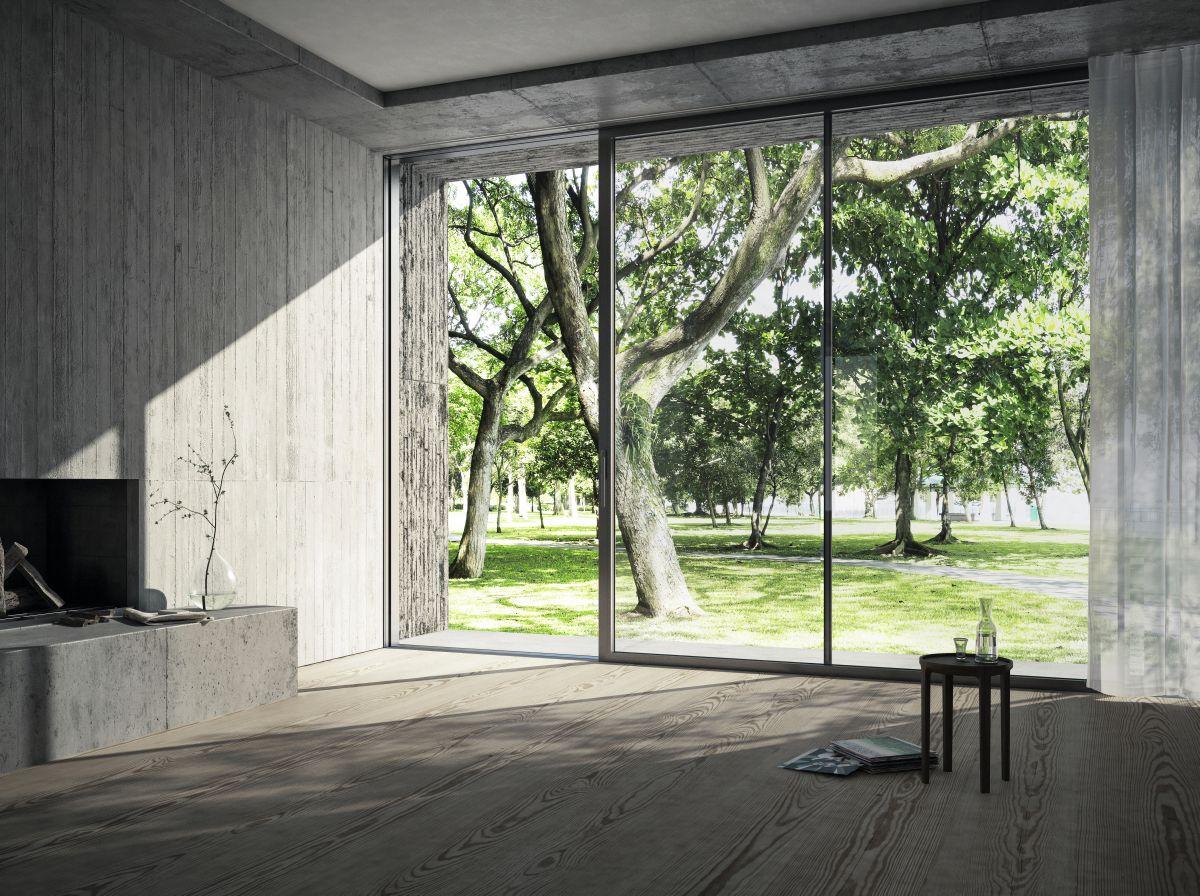

Modularity and a variety of possible opening types, including a 90° corner
The narrow face widths of the vent frames create a slender appearance
DesignLine options with level threshold and slimline interlock
Concealed fittings groove without visible components
Options like SmartStop and SmartClose ensure best handling
High flexibility in configuration and design options
Area of application : Internal use, External use, Residential projects, Commercial projects
Technical Characteristics
Min. vent height
1334 mm
Max. vent height
3500 mm
Min.-max. vent height
1334...3500 mm
Min. vent width
630 mm
Max. vent width
3500 mm
Min.-max. vent width
630...3500 mm
Vent frame face width
82 mm
Min. face width of interlocking section
40 mm
Min. system basic depth
140 mm
Min.-max. system basic depth
140...232 mm

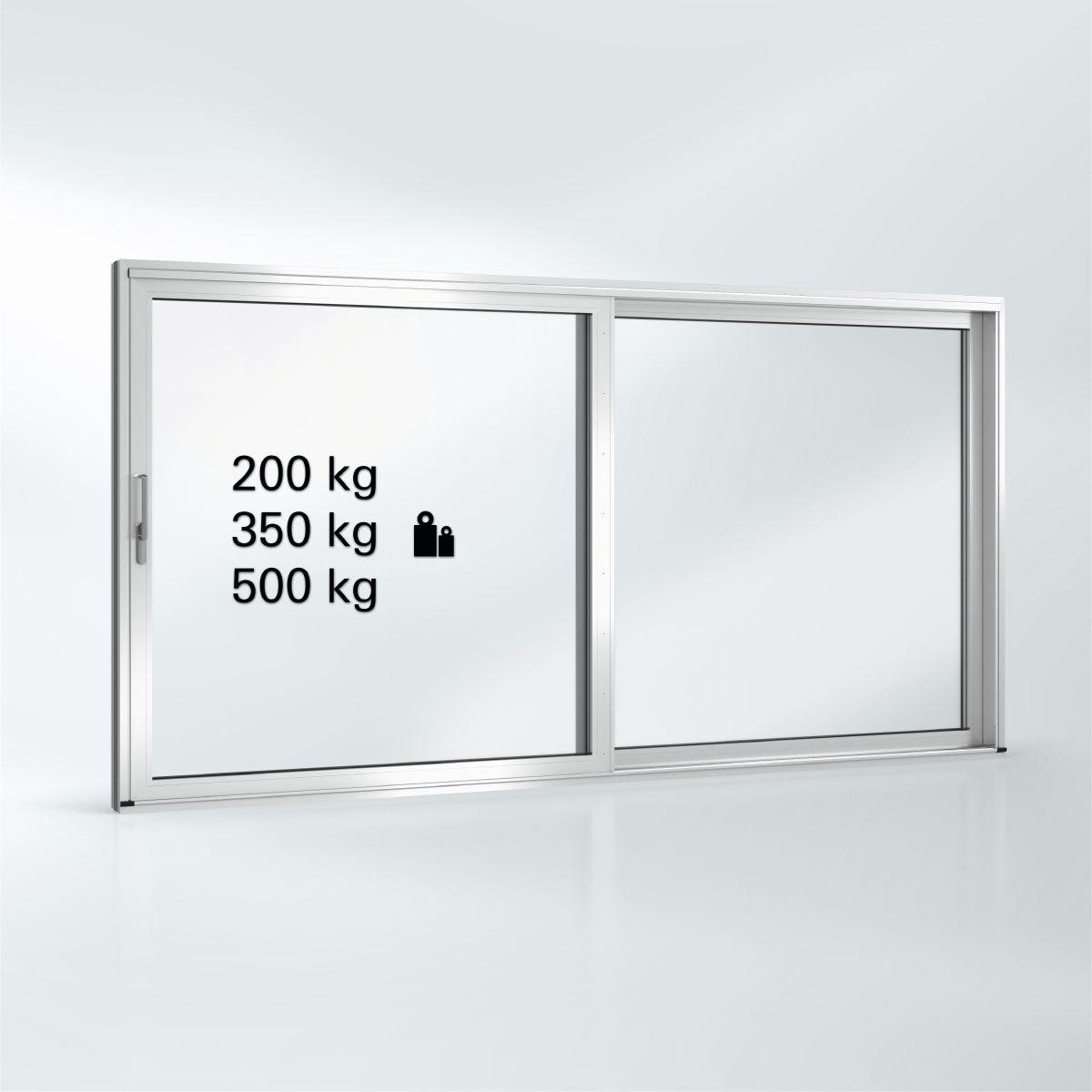

Max. vent weight
500 kg
Min. face width
40 mm
Max. glass/panel thickness
40 mm
Width of vent frame
60 mm
Max. unit width
21000 mm
Max. unit height
3500 mm
Outer frame face width
0 mm
Min. face width of mullion
40 mm
Min.-max. face width of mullion
40...107 mm
Min. face width of meeting stile
172 mm
Min.-max. face width of meeting stile
172...192 mm
Min.-max. glass/panel thickness
24...40 mm
Threshold height
< 12,5 mm
Performance
Uw value of window (≥)
1.1 W/(m²·K)
Uf value of frame (≥)
1.8 W/(m²·K)
Max. sound reduction index Rwp
41 dB(A)
Watertightness
E 900
Burglar resistance
Up to RC 2
Air permeability
Class 4
Wind load resistance
C5/B5
Characteristics
CE marking
Yes
Colour-independent
Yes
Electronic monitoring
Yes
Electronic drive
Yes
TipTronic
Yes
Concealed drive system
Yes
Choose color
RAL 3005
