Schüco Sliding and Lift-and-Slide System ASE 60
Thermal insulation
Uw ≥ 1.1 W/(m²·K)
Air permeability
Class 4
Watertightness
Up to Class 8A
Wind load resistance
Up to Class C5/B5
Burglar resistance
Up to RC2
Description
Schüco ASE 60 is a modular and scalable sliding and lift-and-slide system offering excellent thermal insulation, slim face widths, and modern design.
Advantages

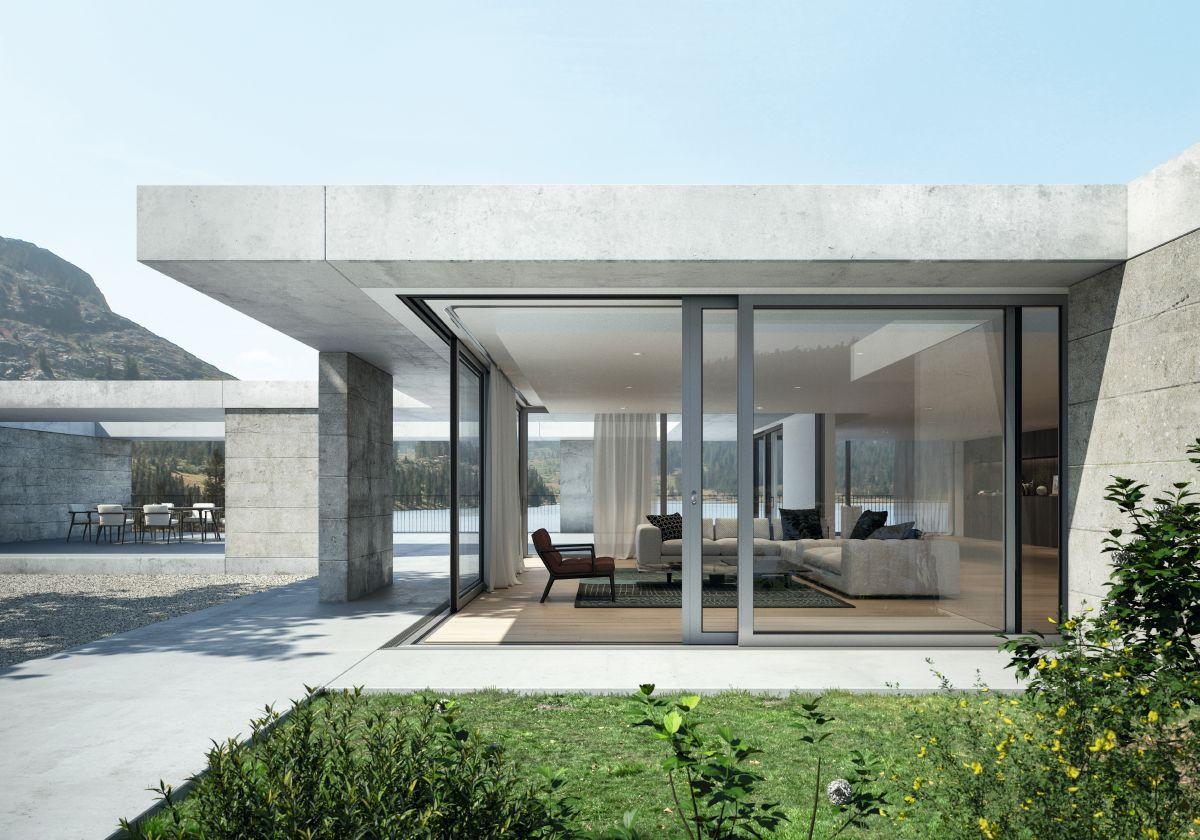

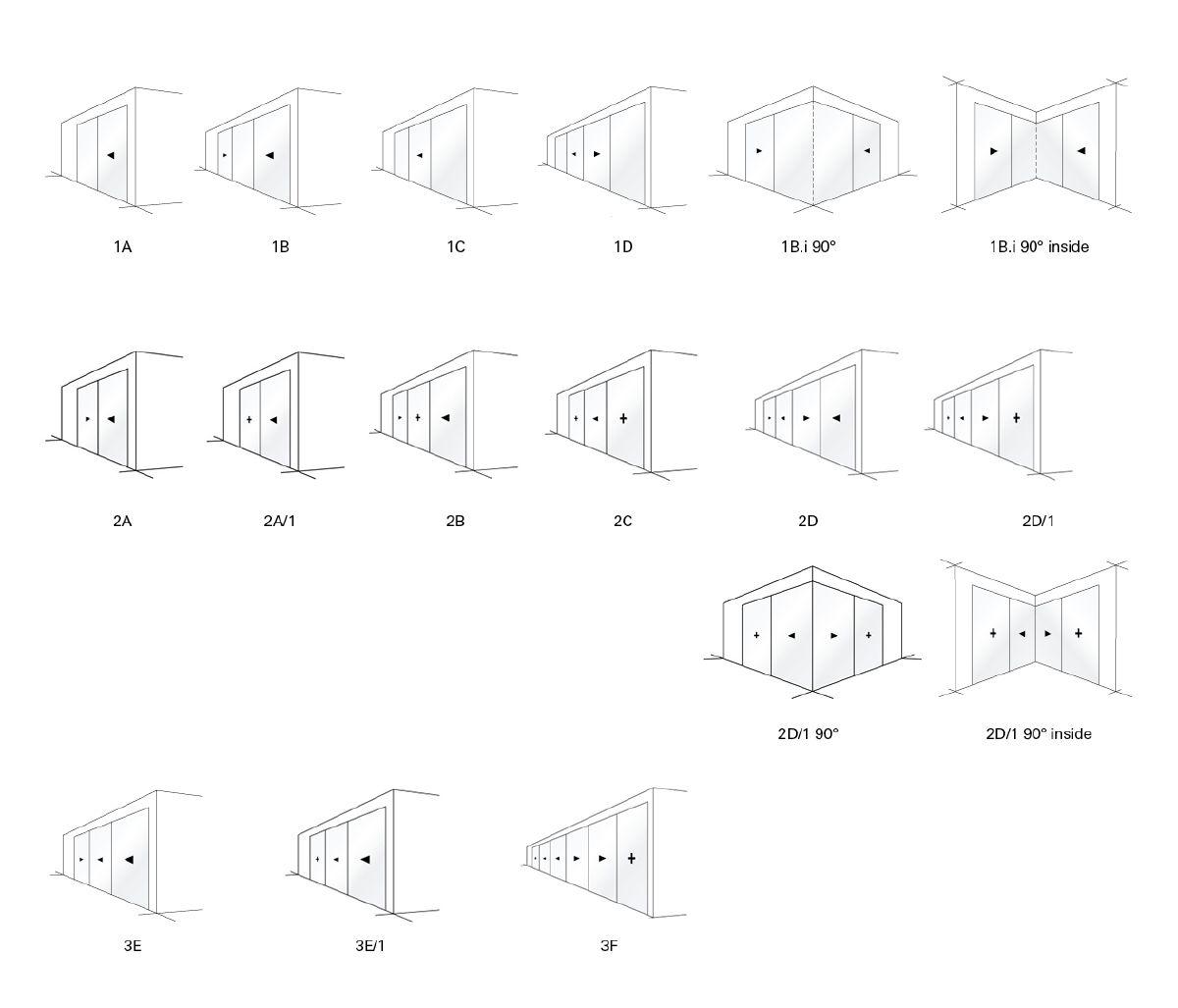

Modular system with multiple opening types for design flexibility.

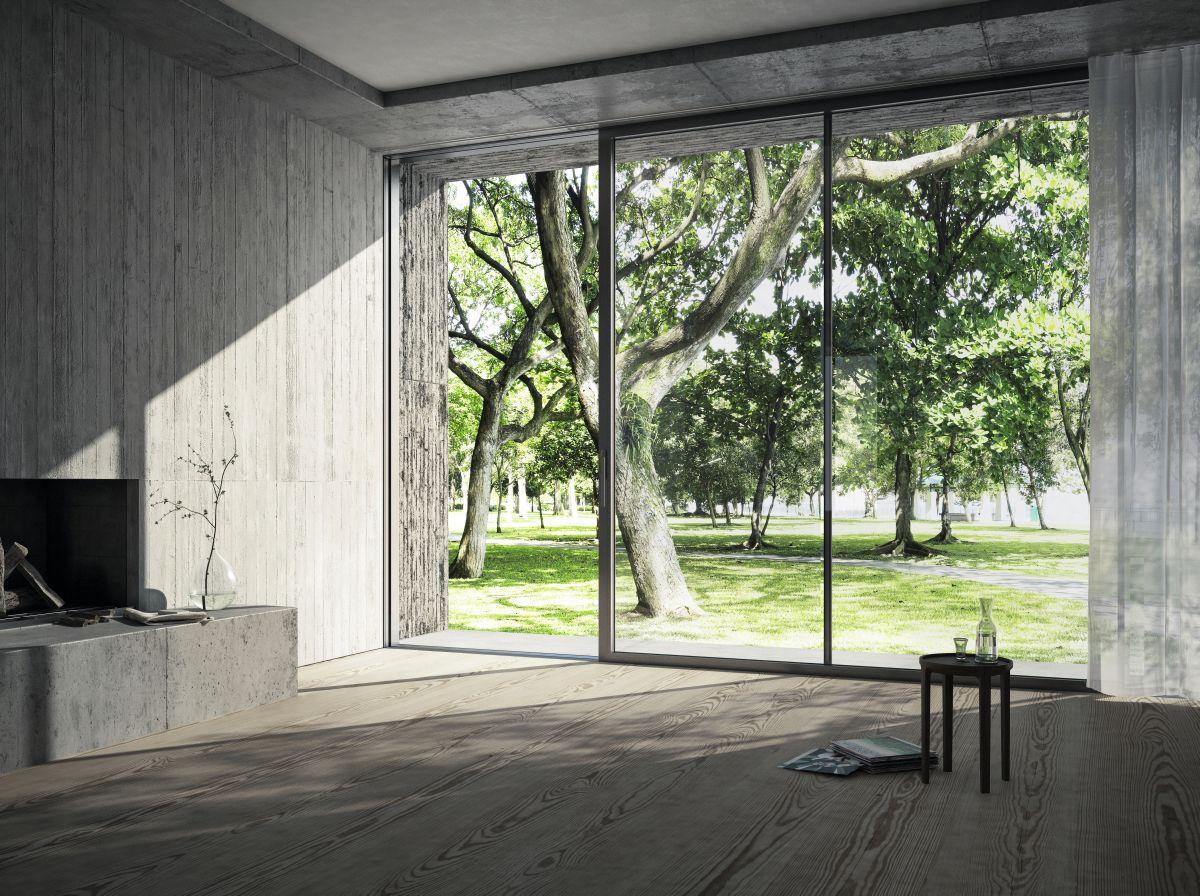

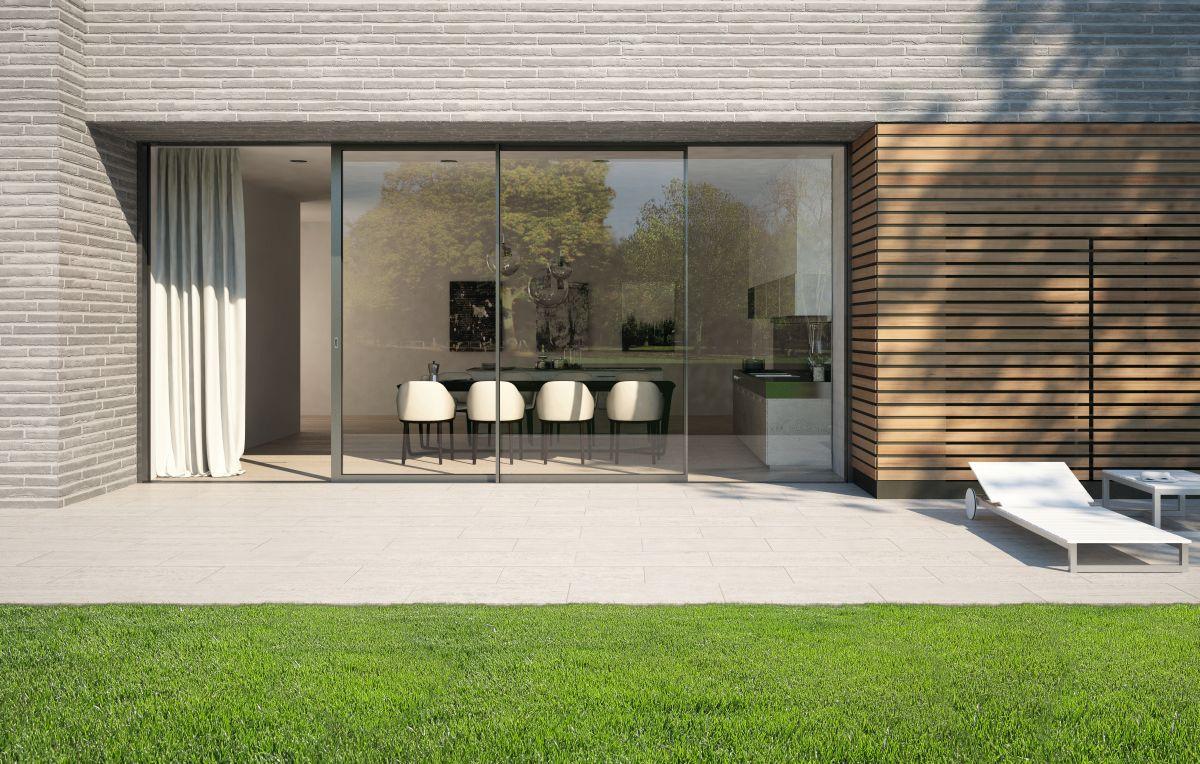

Slim visible profiles for a sleek architectural appearance.

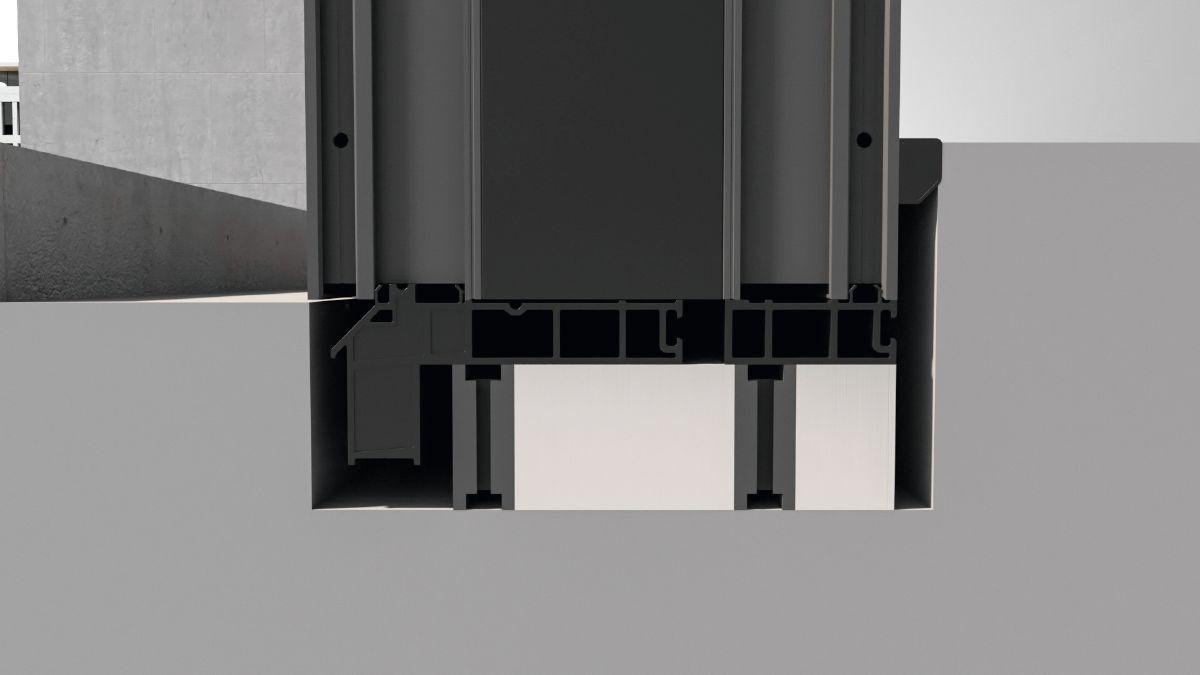

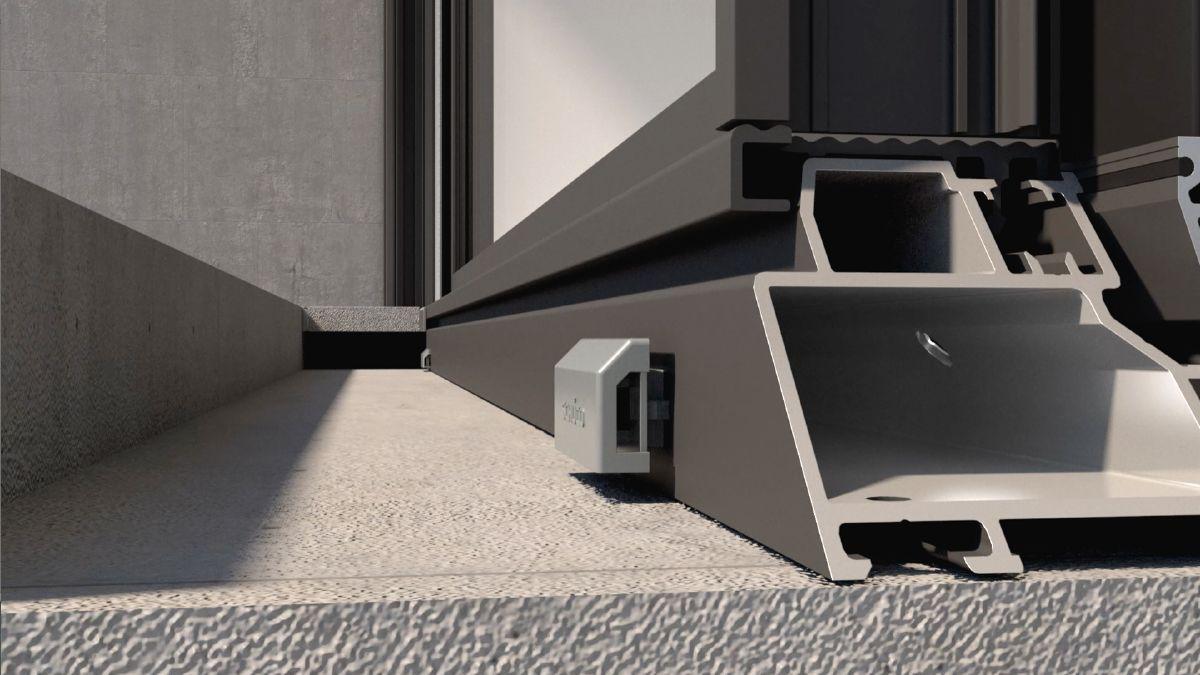

DesignLine options with flush threshold and narrow interlock for enhanced aesthetics and comfort.
Concealed fittings groove for clean lines without visible hardware.

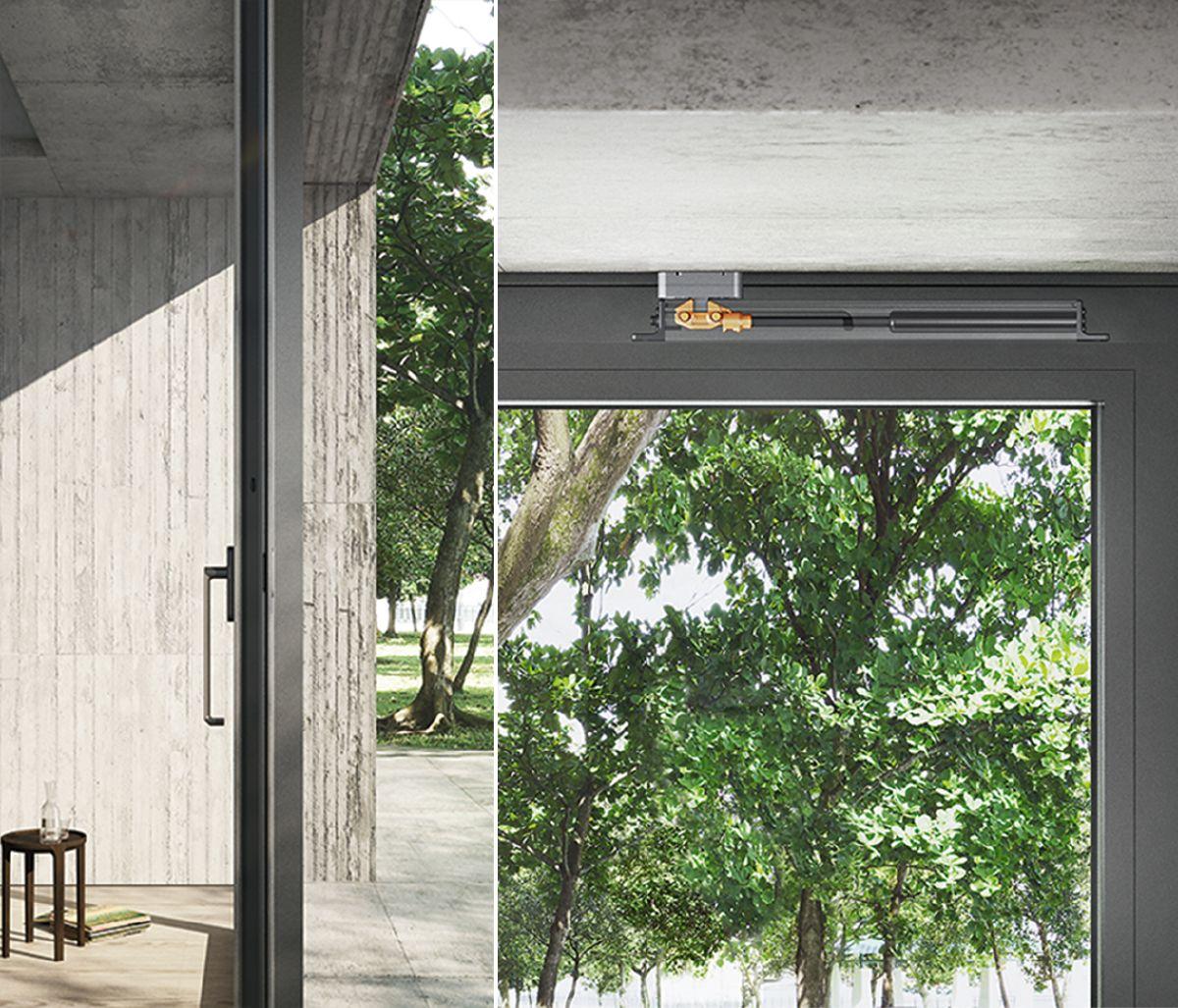

Optional Schüco SmartStop and SmartClose enhance user comfort and safety.
Certified security up to RC2 class, meeting high safety requirements.

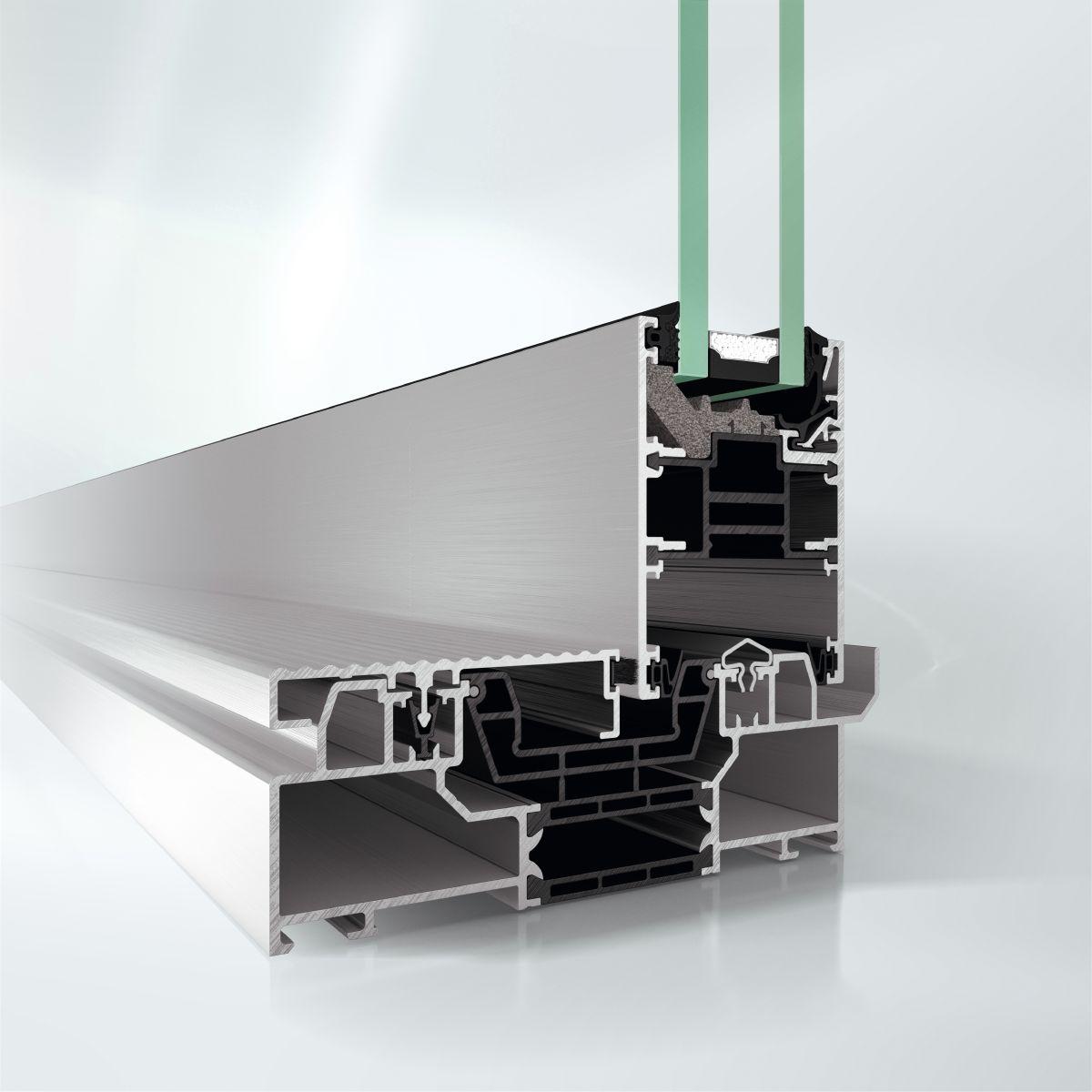

Technical Characteristics
Max. glass/panel thickness
40 mm
Max. unit height
3000 mm
Max. unit width
3500 mm
Max. vent height
3000 mm

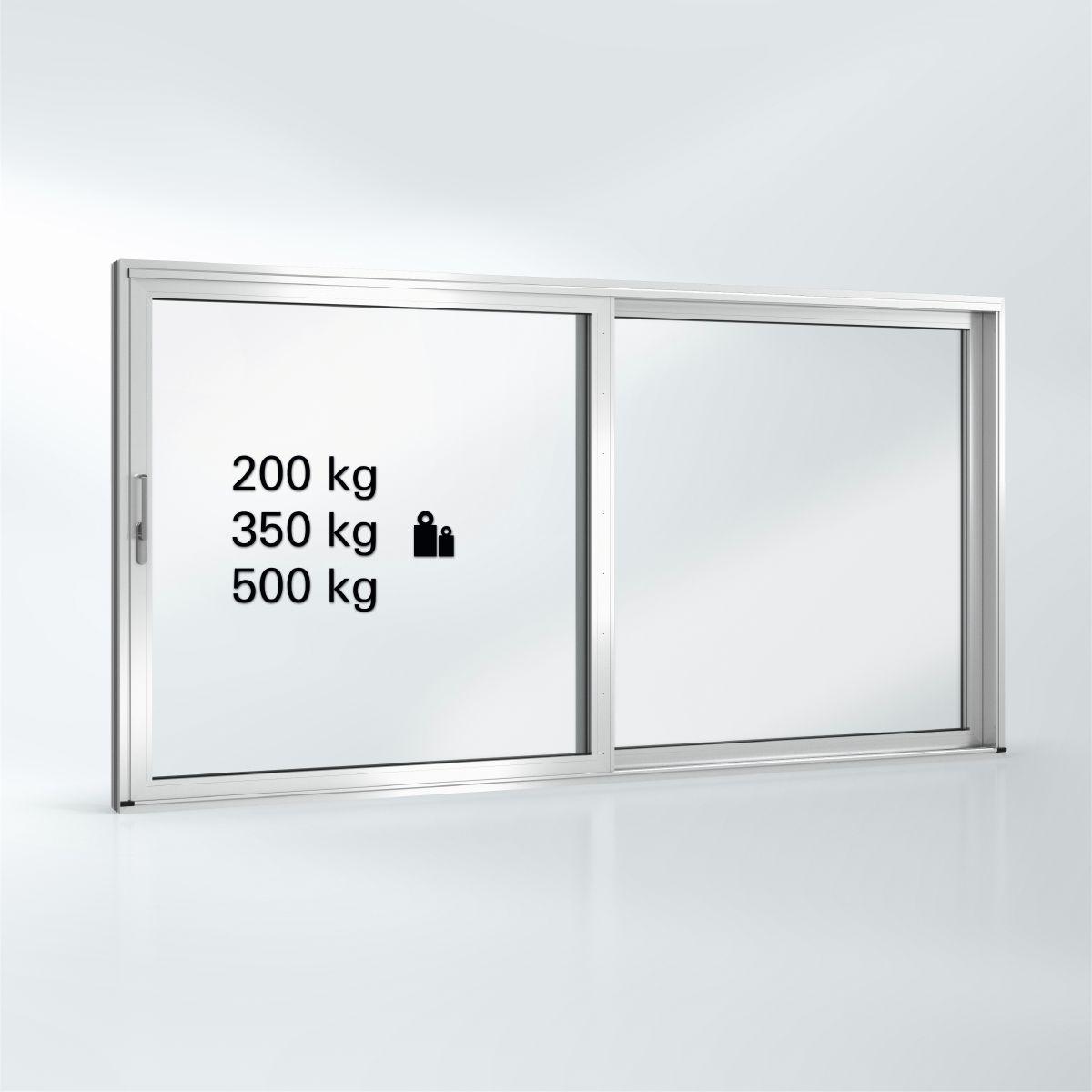

Max. vent weight
500 kg
Max. vent width
3500 mm
Min. face width
40 mm
Min. face width of meeting stile
40 mm
Min. system basic depth
60 mm
Min. vent height
1000 mm
Min. vent width
800 mm
Min.-max. glass/panel thickness
24–40 mm
Min.-max. system basic depth
60 mm
Min.-max. vent height
1000–3000 mm
Min.-max. vent width
800–3500 mm
Number of tracks
2 or 3 (depending on configuration)
Operating forces
Low
Outer frame face width
60 mm
Proof of durability
Class 3 (20,000 cycles)
Threshold height
Up to 7 mm (depending on configuration)
Vent frame face width
60 mm
Width of vent frame
60 mm
Performance
Max. sound reduction index Rwp
Up to 45 dB
Uf value of frame (≥)
≥ 1.8 W/(m²K)
Watertightness
Class E900
Wind load resistance
Class C5 / B5
Characteristics
Electronic drive
Optional
Electronic monitoring
Optional
TipTronic
Optional
Fixed lights/identified vents
Yes
Meeting stile design
Slim profile for maximum glazing
Opening type
Manual or automatic (optional)
Opening type
Sliding or lift-and-slide
Roller carriage material
High-quality materials for smooth operation and durability
Track material
High-quality materials
Surface finishes
Various finishes available
Choose color
RAL 3005
