Description

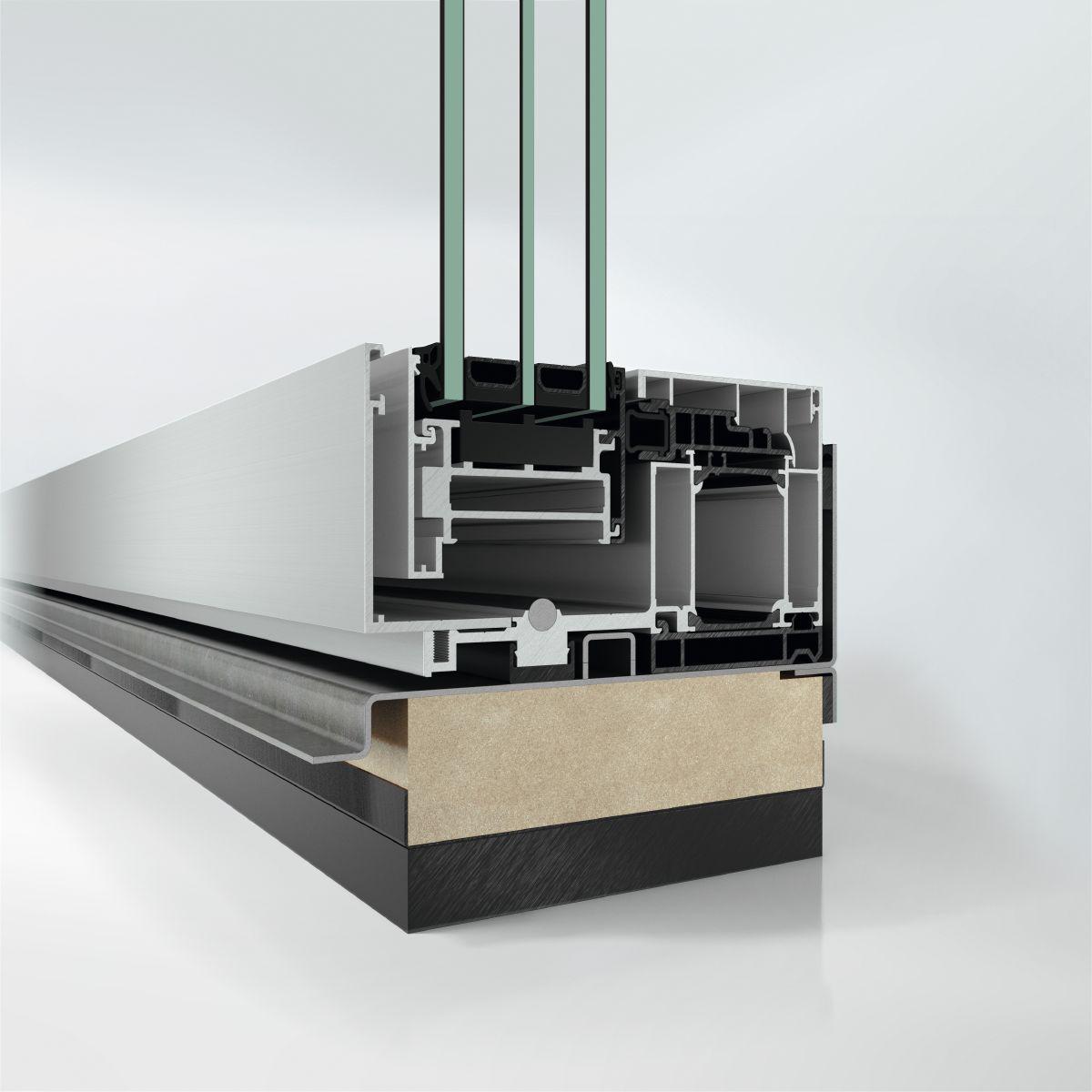

Gaskets with Air in the Schüco AS AL 75 Panorama Design Sliding System - The air-lux Gasket Concept Schüco, in collaboration with air-lux, introduces an innovative sealing solution for its AS AL 75 Panorama Design sliding system. This partnership brings a patented, inflatable gasket system that redefines performance standards in weather sealing and operational ease. 100% Impermeability Without Compromise Unlike traditional brush or static rubber gaskets, the air-lux concept uses inflatable gaskets. When activated, the gasket inflates and presses tightly against the sliding profile. This eliminates any gaps, creating a completely airtight and watertight seal, even in large-format sliding doors or under extreme weather conditions.

Advantages

Patented inflatable gasket system ensures 100% weathertightness.
Gasket system accommodates building settlement.

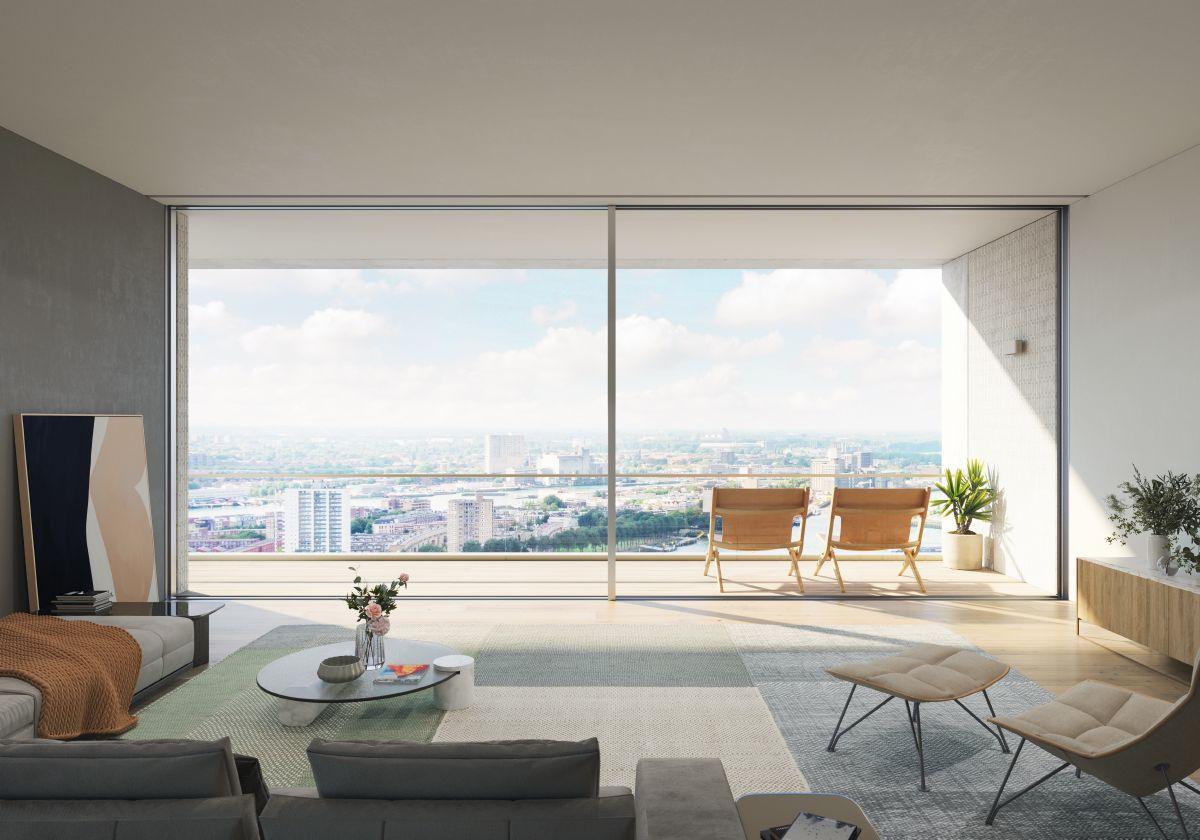

Slim face widths for a frameless look.
Barrier-free threshold for seamless indoor-outdoor transition.
High burglar resistance up to RC3.

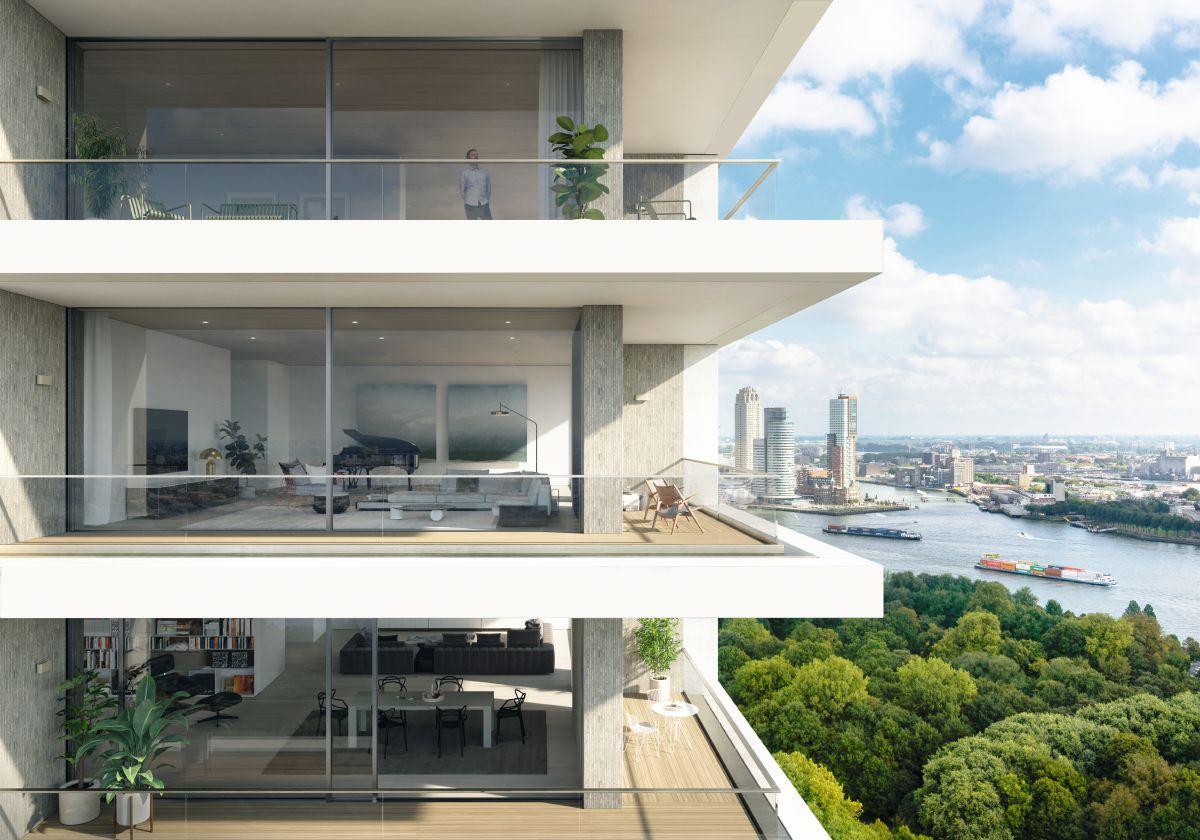

Suitable for high-rise buildings with impressive design and performance.

Technical Characteristics

Min. vent height
1500 mm
Max. vent height
6000 mm
Min.-max. vent height
1500...6000 mm
Min. vent width
877 mm
Max. vent width
8000 mm
Min.-max. vent width
877...8000 mm
Vent frame face width
0 mm
Min. face width of interlocking section
66 mm
Min. system basic depth
173 mm
Min.-max. system basic depth
173...173 mm
Max. vent weight
1800 kg

Performance

Uw value of window (≥)
0.83 W/(m²·K)
Max. sound reduction index Rwp
44 dB(A)
Watertightness
E 1500
Burglar resistance
Up to RC3
Air permeability
Class 4
Wind load resistance
Class C4 / B4

Characteristics

Operating type
electric, manual
Fixed lights/identified vents
Yes
Track material
Stainless steel
Roller carriage material
Stainless steel
Concealed drive system
Yes
Electronic drive
Yes
Electronic monitoring
Yes
CE marking
Yes

Choose color

RAL-1013
RAL-3005
RAL-5010
RAL-6005
RAL-6009
RAL-7005
RAL-7015
RAL-7016
RAL-7024
RAL-7030
RAL-7032
RAL-7035
RAL-7036
RAL-7037
RAL-7039
RAL-7040
RAL-7042
RAL-7043
RAL-8014
RAL-8017
RAL-9005
RAL-9006
RAL-9007
RAL-9010
RAL-9016
RAL-1013 MATT
RAL-1019 MATT
RAL-1035 MATT
RAL-5014 MATT
RAL-6009 MATT
RAL-6013 MATT
RAL-7006 MATT
RAL-7009 MATT
RAL-7015 MATT
RAL-7016 MATT
RAL-7021 MATT
RAL-7022 MATT
RAL-7024 MATT
RAL-7030 MATT
RAL-7035 MATT
RAL-7037 MATT
RAL-7039 MATT
RAL-7044 MATT
RAL-8011 MATT
RAL-8014 MATT
RAL-8019 MATT
RAL-9005 MATT
RAL-9010 MATT
RAL-9011 MATT
RAL-9016 MATT
window-color
RAL 3005
