Schüco Folding Sliding System AS FD 90.HI
Thermal insulation
from 0.8 W/(m²K)
Air permeability
up to class 4
Watertightness
E750
Wind load resistance
C3/B5
Burglar resistance
RC 2 / PAS 24
Description

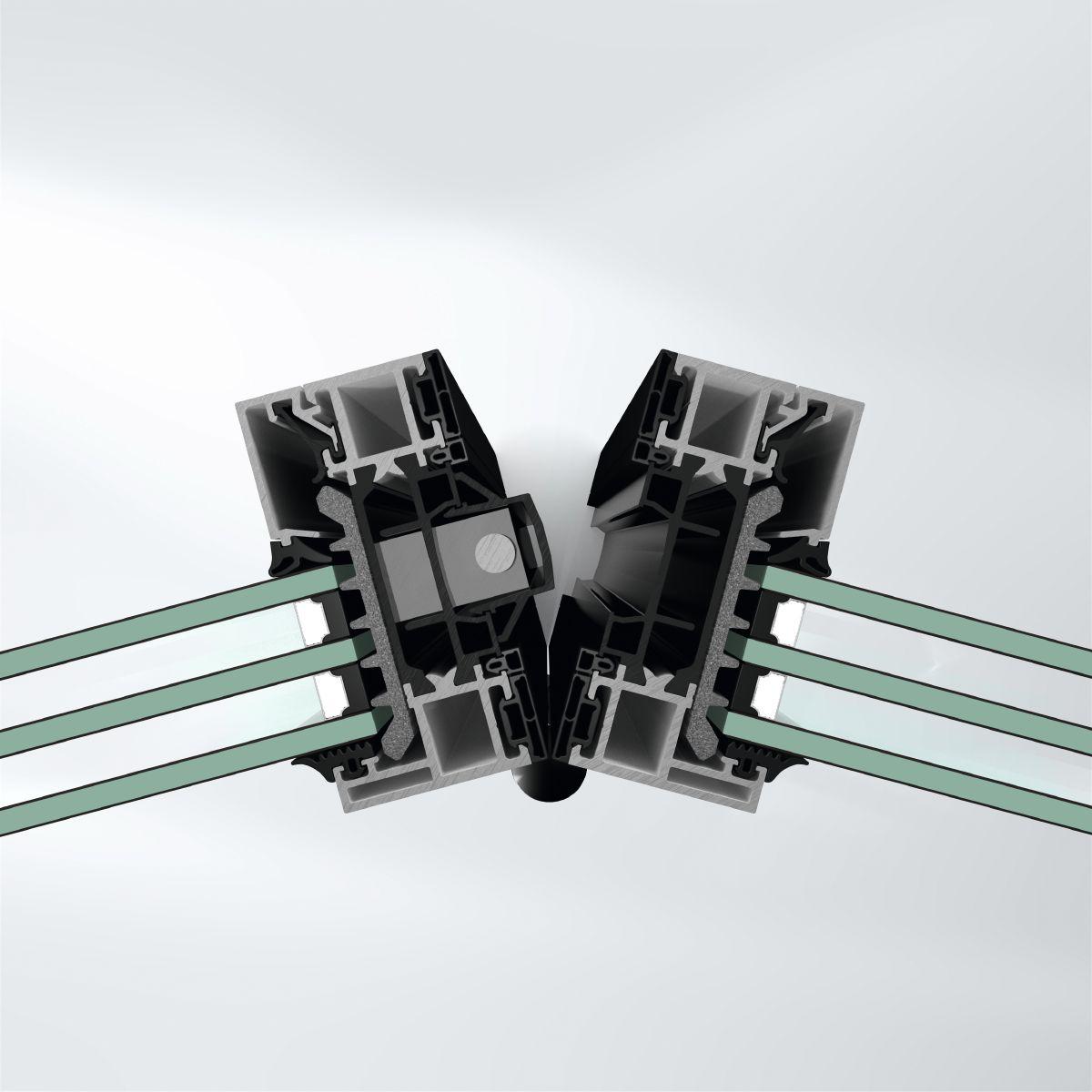

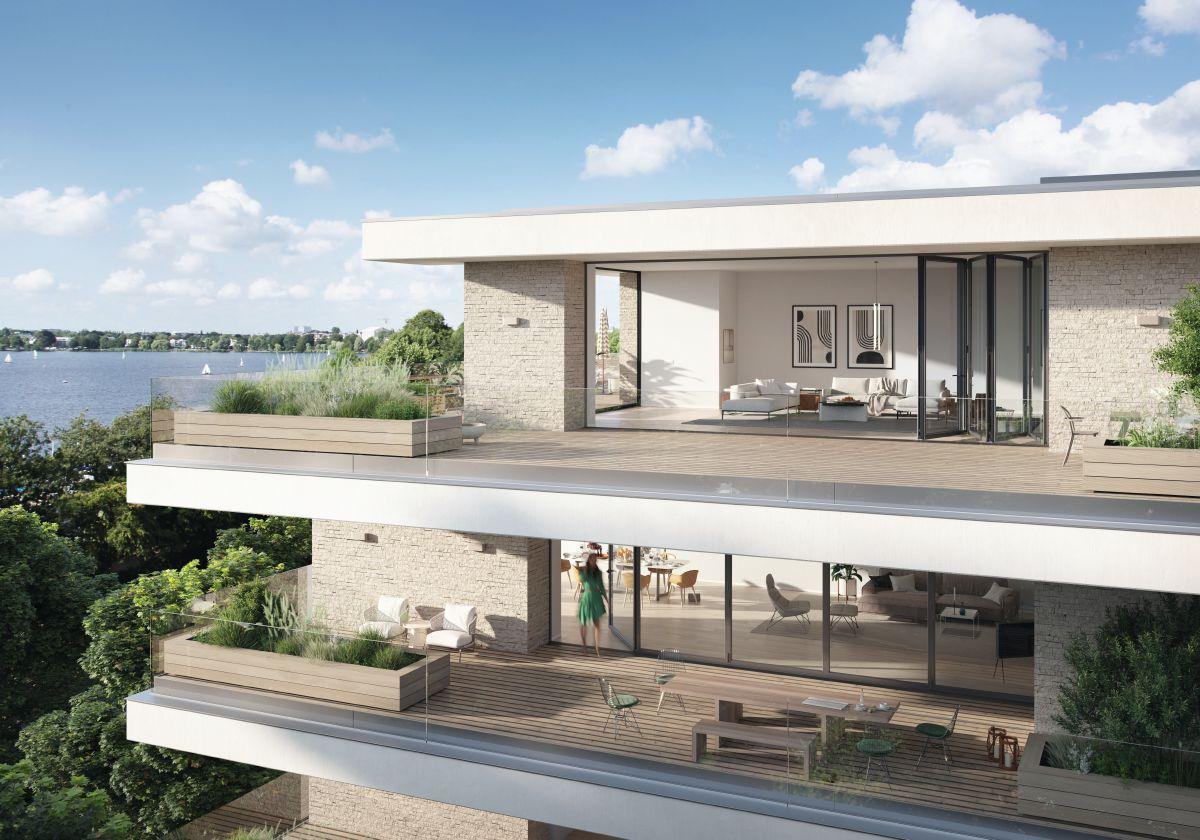

Schüco AS FD 90.HI – Where Sleek Design Meets Thermal Mastery The Schüco AS FD 90.HI folding sliding system makes a bold architectural statement with its ultra-slim face widths and superior thermal insulation—seamlessly merging aesthetics with technical excellence. A wide variety of opening and locking configurations allows for extensive design flexibility, giving architects and planners the freedom to create bespoke, high-performance facades tailored to specific needs.
Advantages
Slim face width of 90 mm ensures maximum transparency.
High thermal insulation with Uf values from 0.8 W/(m²K).

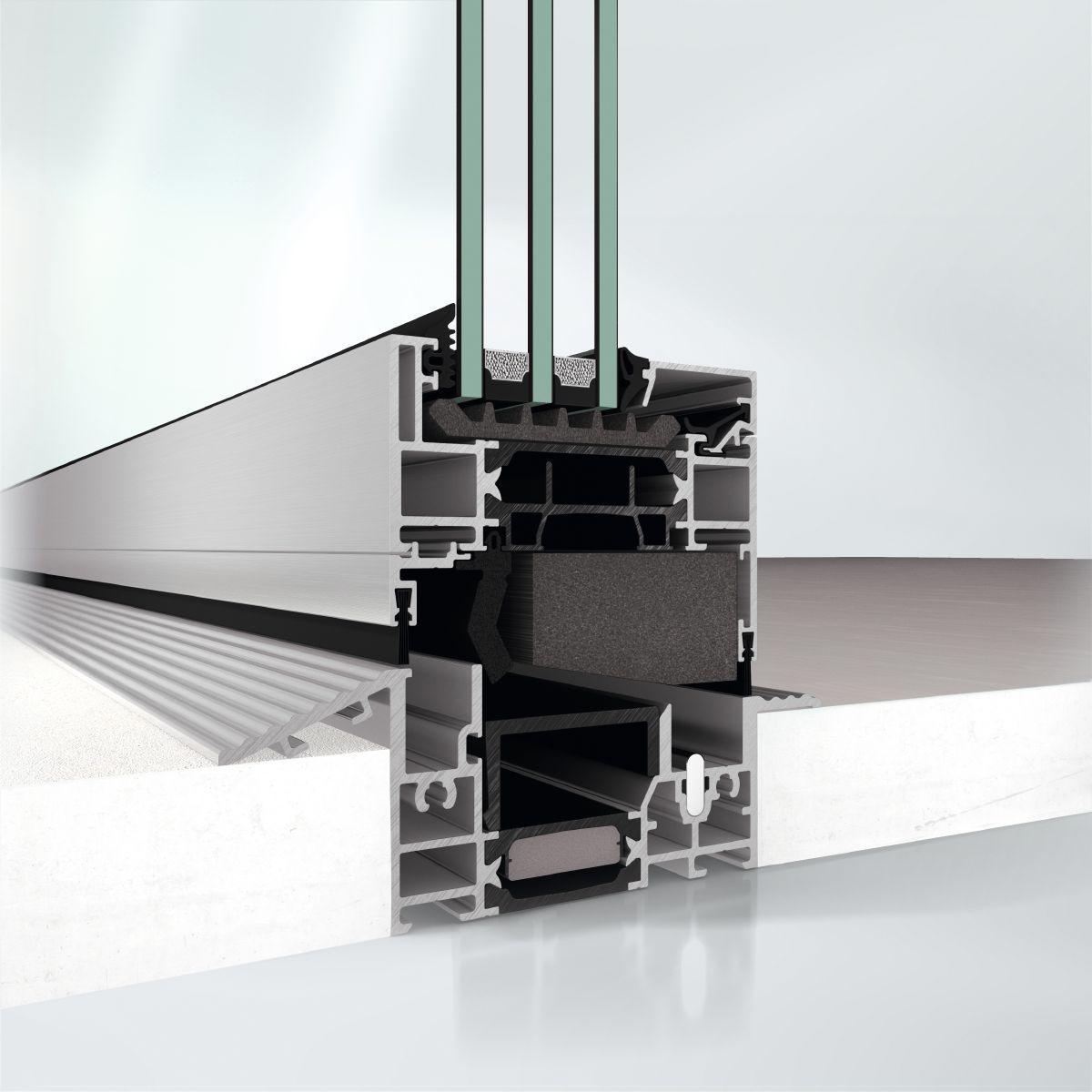

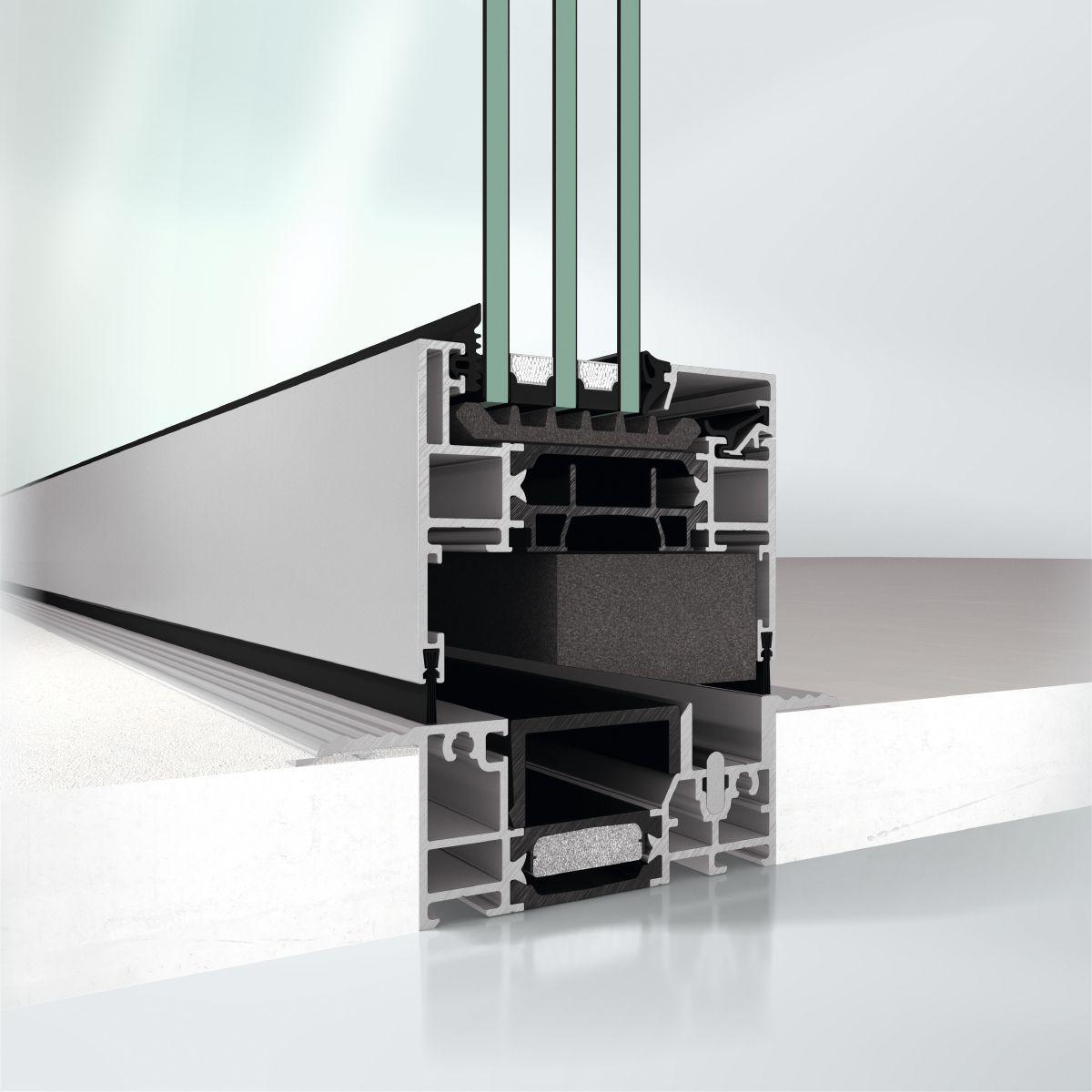

Three threshold options including flat threshold for easy access.
Optional single swing door for quick access without opening full system.

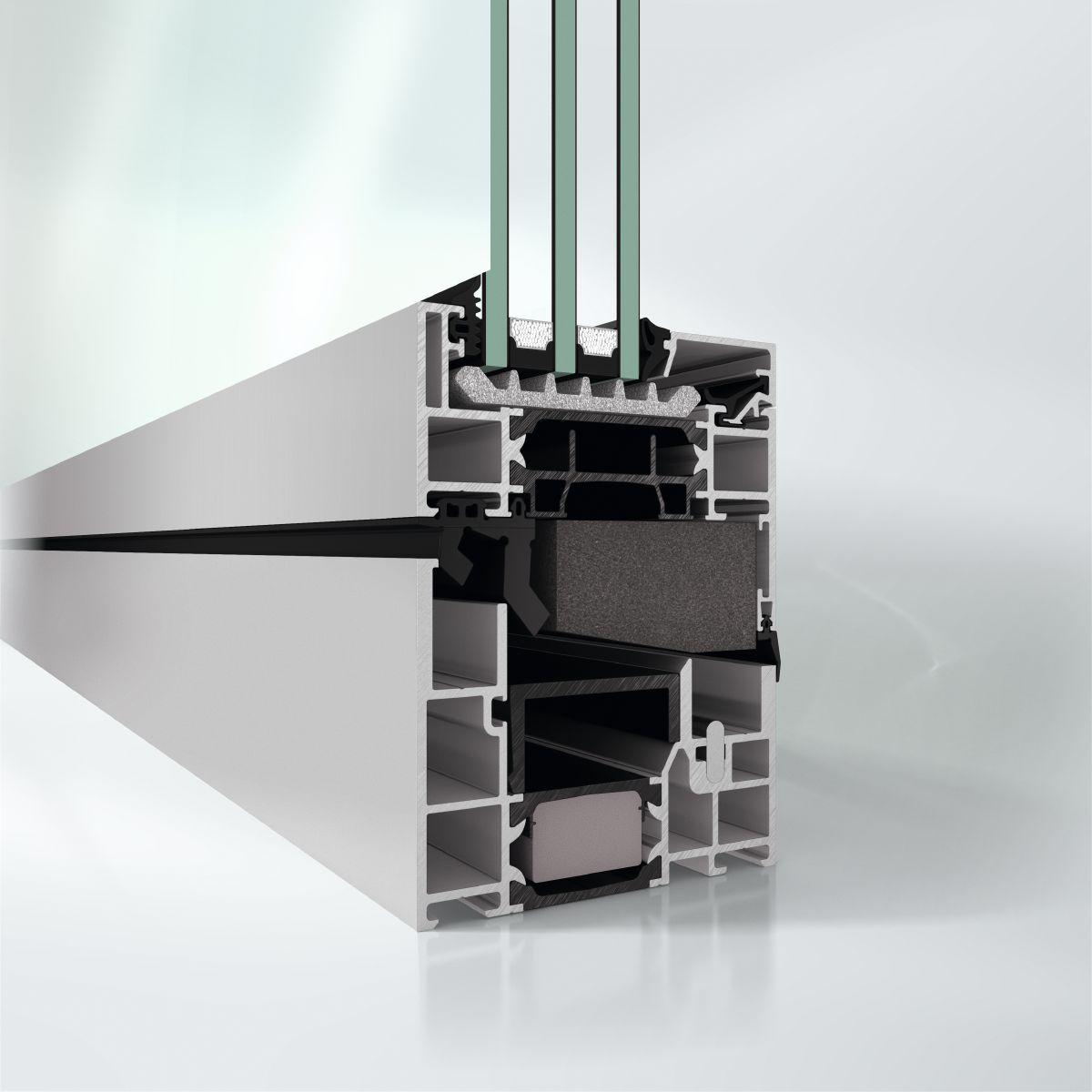

Enhanced sealing with dual gasket levels.
High security with burglar resistance up to RC 2.
Certificates
Technical Characteristics
Min. vent height
660 mm
Max. vent height
3500 mm
Min.-max. vent height
660...3500 mm
Min. vent width
600 mm
Max. vent width
1500 mm
Min.-max. vent width
600...1500 mm
Vent frame face width
41 mm
Min. face width of interlocking section
90 mm
Min. system basic depth
90 mm
Min.-max. system basic depth
90...90 mm
Max. vent weight
150 kg
Min. face width
90 mm
Max. glass/panel thickness
65 mm
Total basic depth
90 mm
Width of vent frame
90 mm
Max. unit width
10500 mm
Max. unit height
3608 mm
Outer frame face width
71 mm
Min. face width of mullion
90 mm
Min.-max. face width of mullion
90...104 mm
Min. face width of meeting stile
138 mm
Min.-max. face width of meeting stile
138...171 mm
Min.-max. glass/panel thickness
23...65 mm
Number of vents
1-7
Performance
Uw value of window (≥)
0.8 W/(m²·K)
Uf value of frame (≥)
1.3 W/(m²·K)
Max. sound reduction index Rwp
48 dB(A)
Watertightness
E 750
Burglar resistance
Up to RC 2, PAS 24
Operating type
manual
Characteristics
Number of tracks
Single track
Track material
Stainless steel
Security glazing
Yes
CE marking
Yes
Cradle2Cradle
Yes
Colour-independent
Yes
