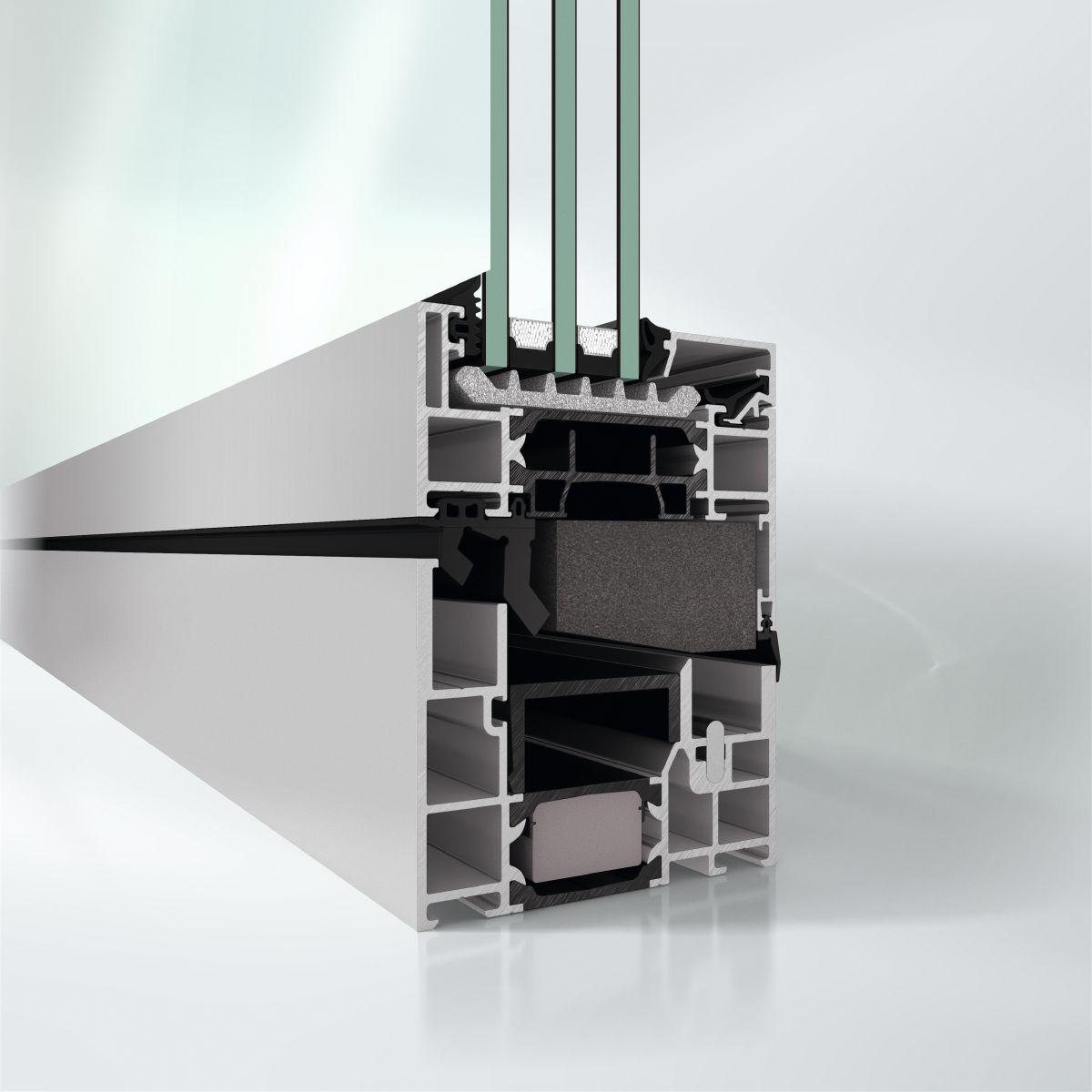

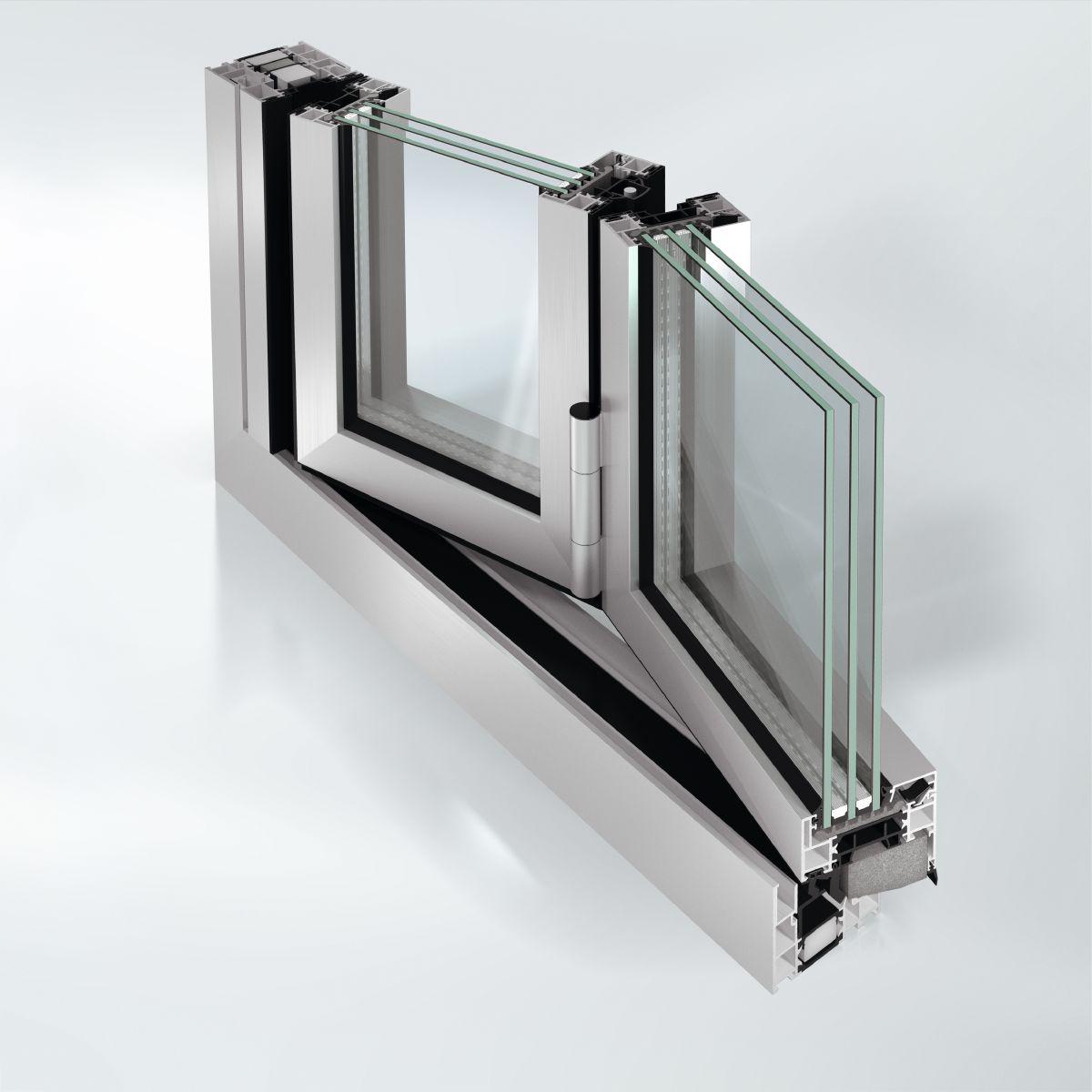

Schüco Folding Sliding System AS FD 75
Thermal insulation
From 1.1 W/(m²K)
Air permeability
Up to Class 4
Watertightness
Class E750 (750 Pa)
Wind load resistance
Class C3 (2000 Pa)
Burglar resistance
RC 2 / PAS 24
Description

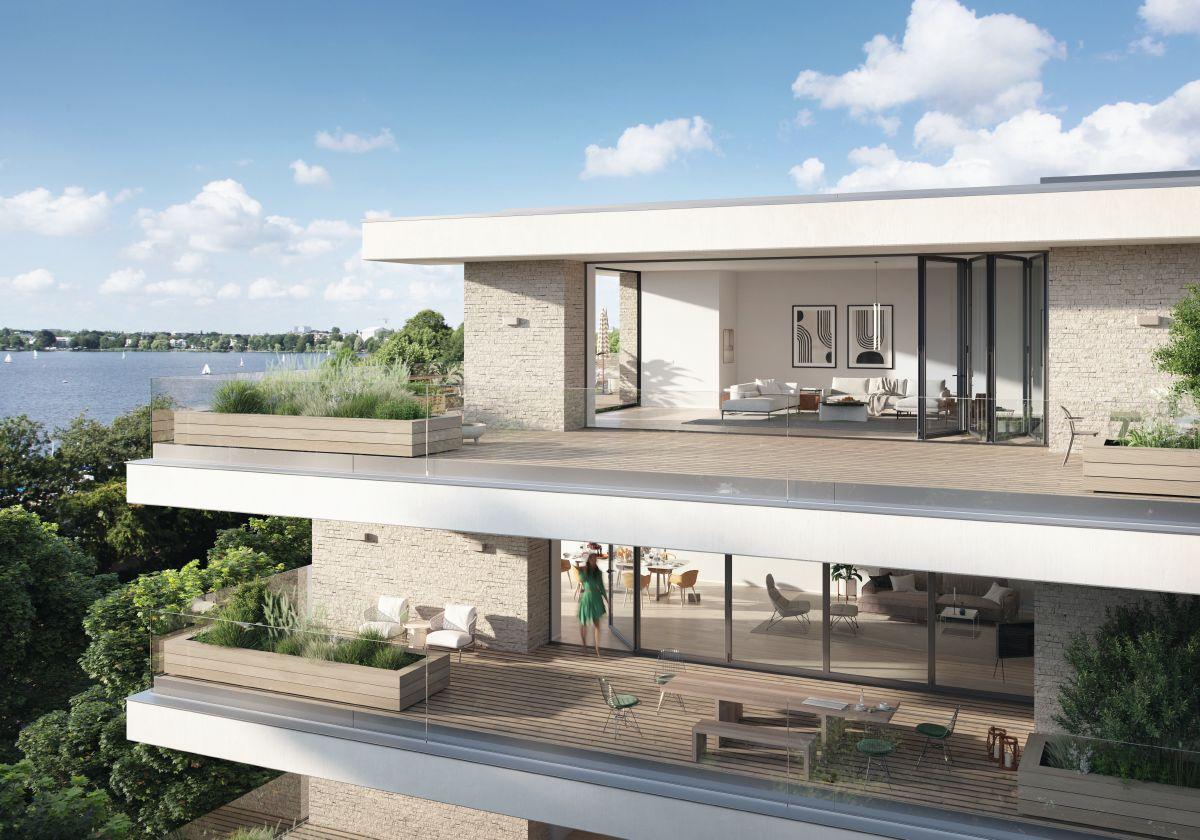

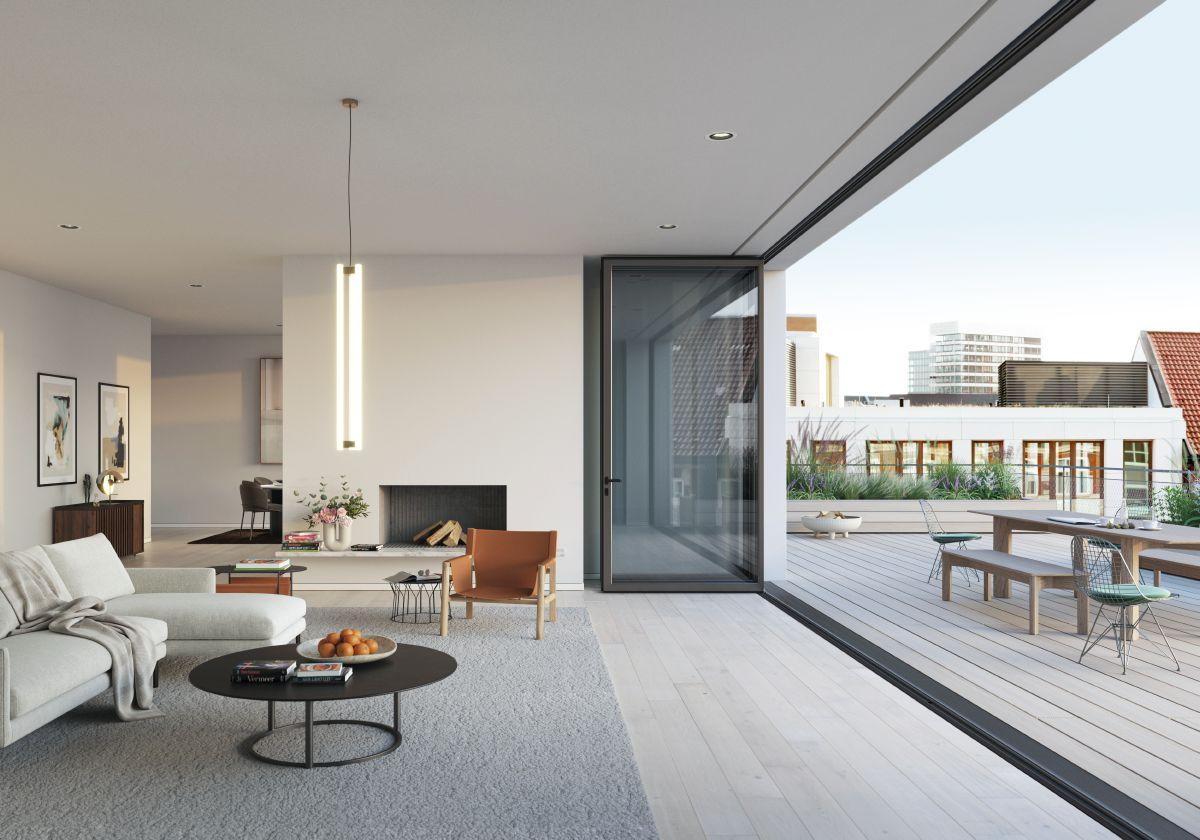

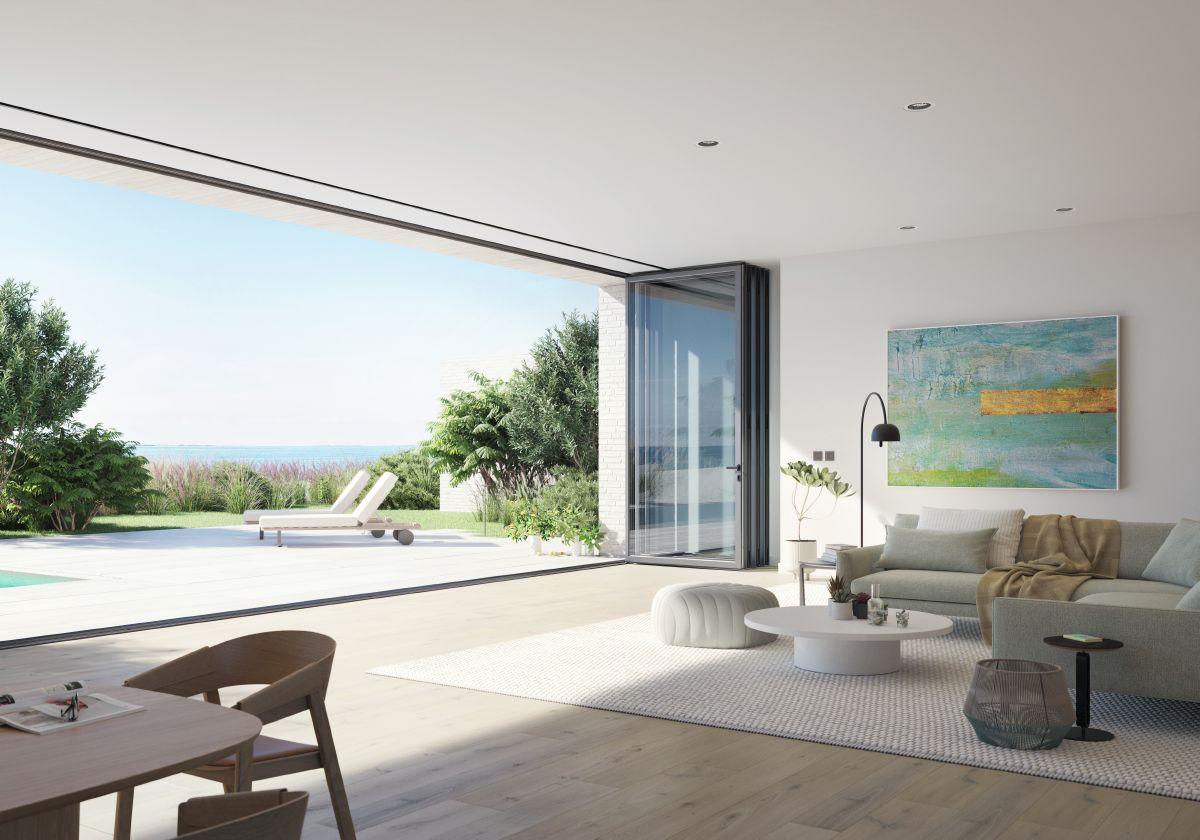

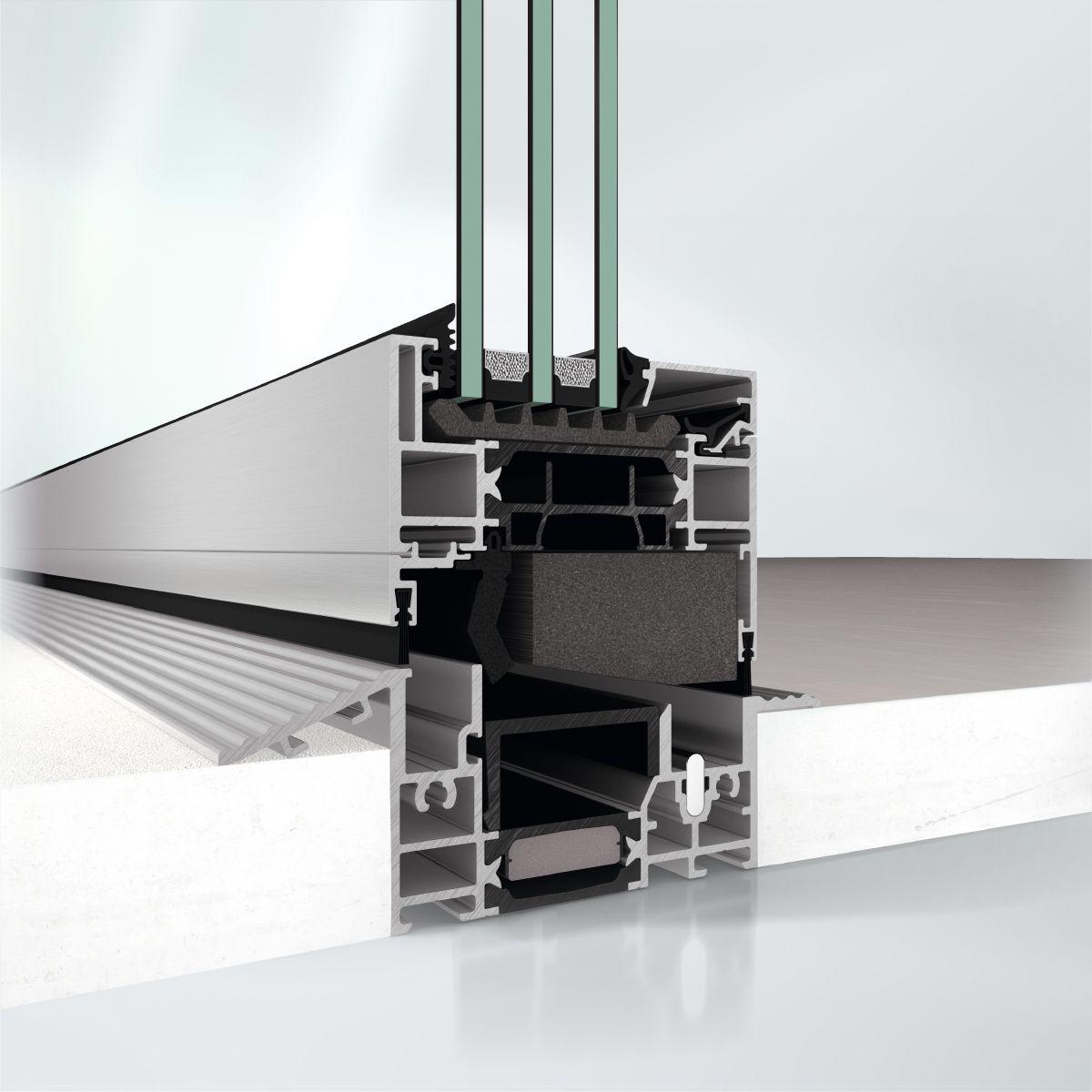

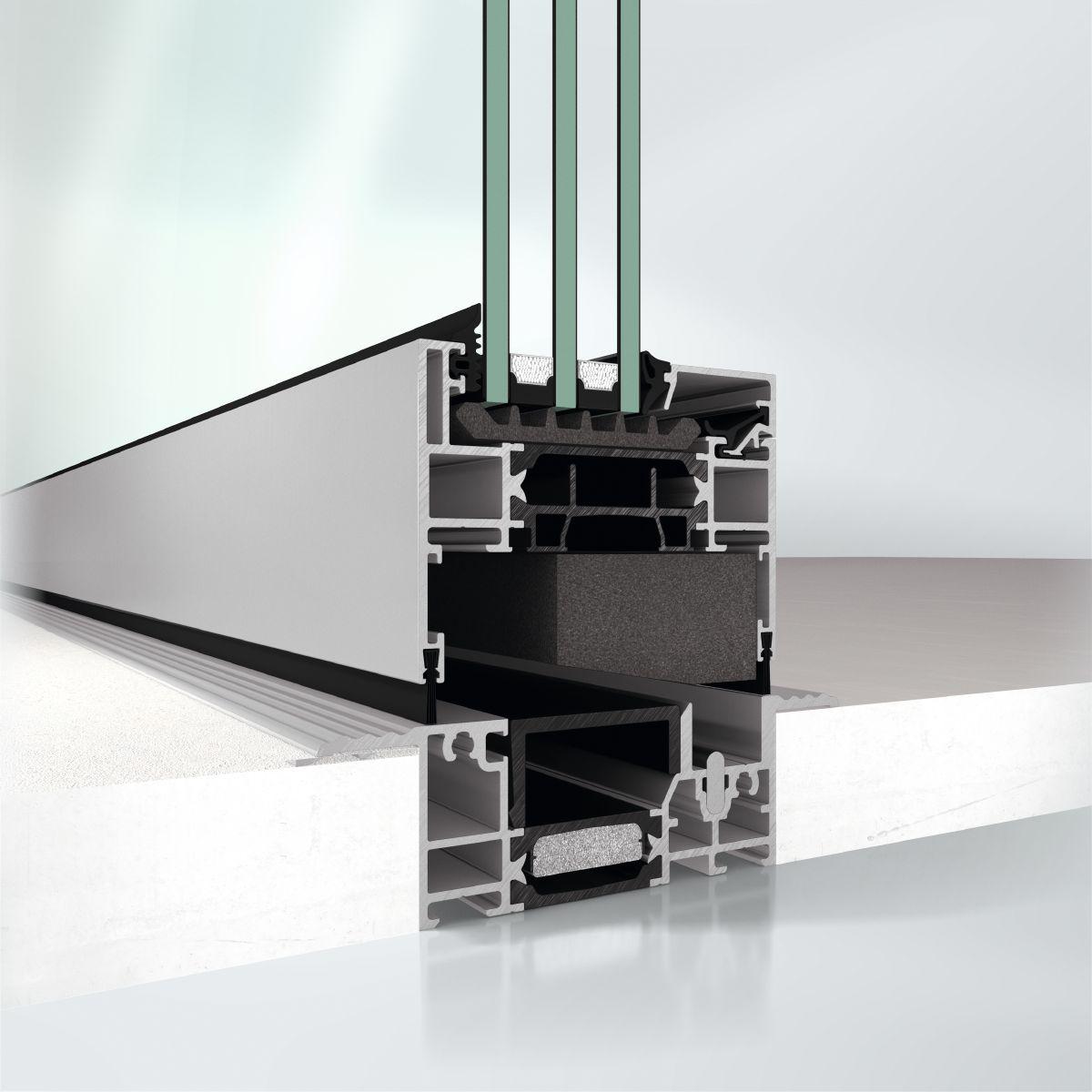

Schüco AS FD 75 – Precision Framed in Minimalism The Schüco AS FD 75 folding sliding system distinguishes itself with its strikingly narrow face widths and seamlessly aligned outer and vent frames—crafted for visual purity and architectural finesse. An expansive variety of opening and locking configurations empowers bespoke design concepts with unmatched freedom during the planning process, offering tailored flexibility for both residential and commercial applications. Engineered for adaptability, the system features three threshold variations—including a flat threshold designed for superior rollover performance—making it ideal for diverse installation environments, from refined interiors to exposed exteriors.
Advantages
Slim face widths of just 90 mm for a minimalist look.
Maximum transparency with large vent dimensions (up to 3000 mm height and 1500 mm width).
High security with burglar resistance class RC 2.
Excellent sound insulation up to 47 dB.
High occupant comfort with thermal insulation as low as 1.1 W/(m²K).
Extensive design freedom with 68 different opening options.

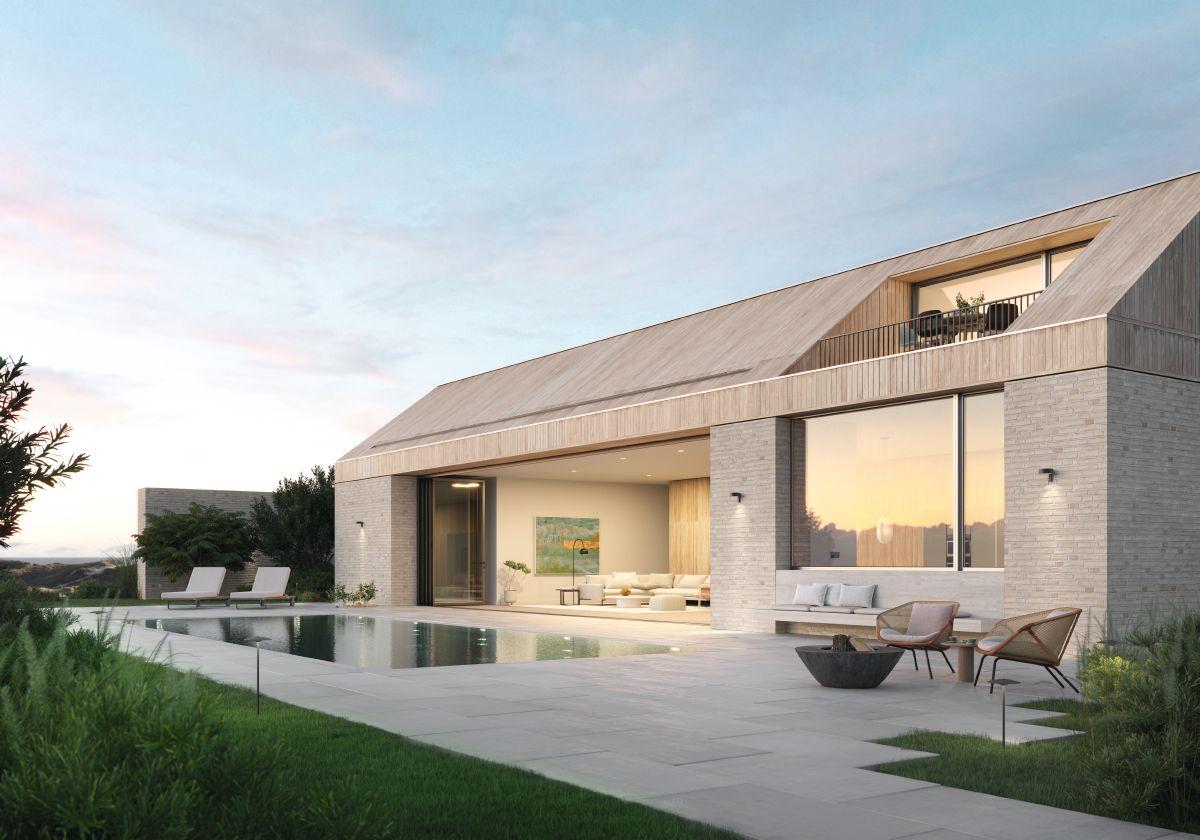

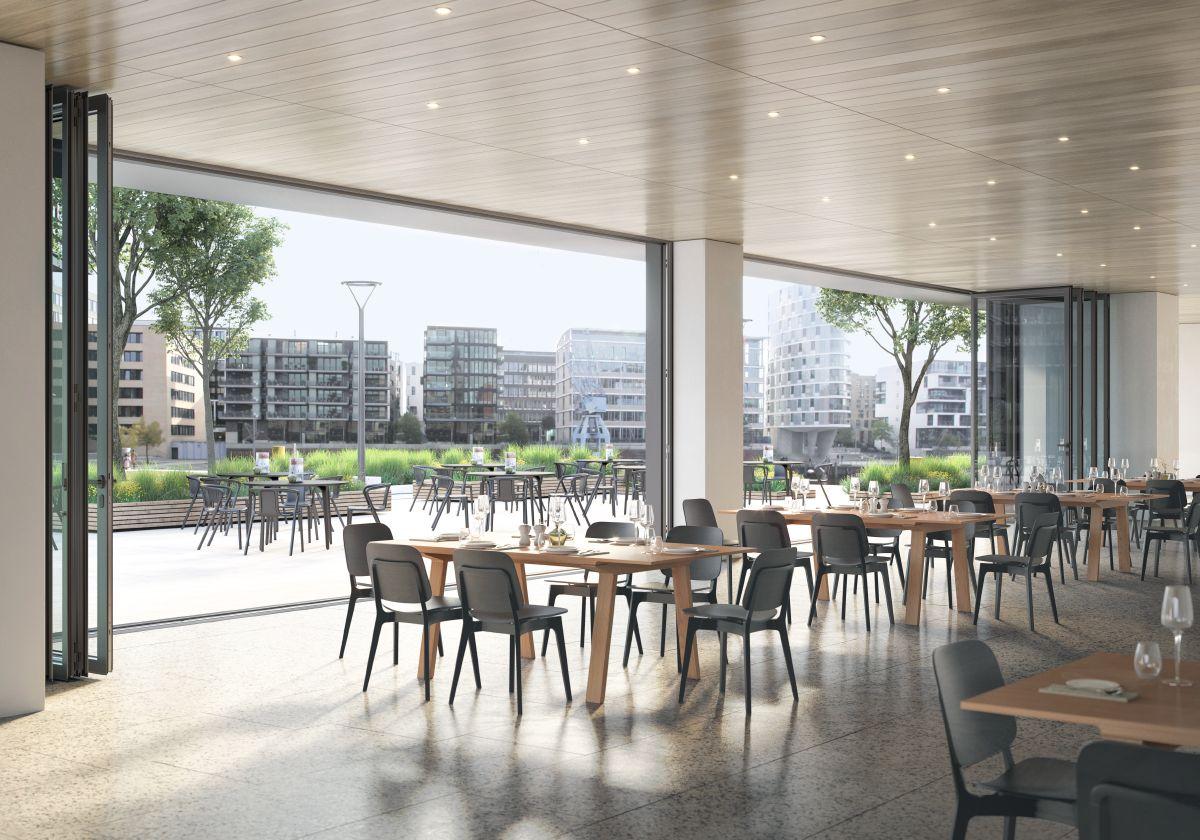

Area of application: Internal use, External use, Residential projects, Commercial projects, Accommodation facilities
Certificates
Technical Characteristics
Min. vent height
660 mm
Max. vent height
3000 mm
Min.-max. vent height
660...3000 mm
Min. vent width
500 mm
Max. vent width
1500 mm
Min.-max. vent width
500...1500 mm

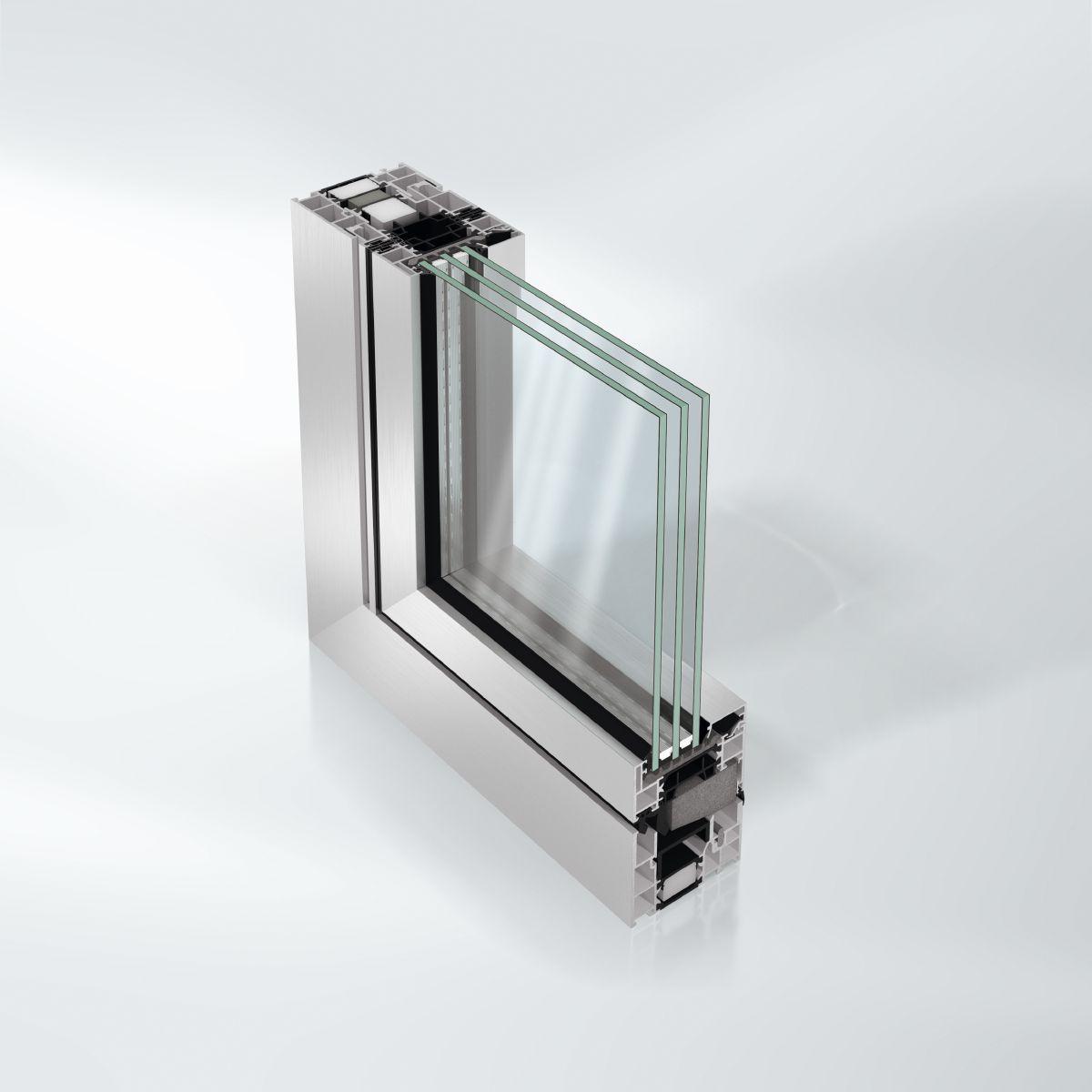

Vent frame face width
41 mm
Min. face width of interlocking section
90 mm
Min. system basic depth
75 mm
Min.-max. system basic depth
75...75 mm
Max. vent weight
150 kg
Min. face width
90 mm
Max. glass/panel thickness
50 mm
Total basic depth
75 mm
Max. unit width
10500 mm
Max. unit height
3108 mm
Outer frame face width
71 mm
Min. face width of mullion
90 mm
Min.-max. face width of mullion
90...104 mm
Min. face width of meeting stile
142 mm
Min.-max. face width of meeting stile
142...171 mm
Min.-max. glass/panel thickness
8...50 mm
Number of vents
1 - 7
Performance
Uw value of window (≥)
1.1 W/(m²·K)
Uf value of frame (≥)
2,15 W/(m²·K)
Max. sound reduction index Rwp
47 dB(A)
Watertightness
E 750
Burglar resistance
Up to RC 2, PAS 24
Corrosion protection class for fittings
Class 4
Air permeability
Class 4
Wind resistance deflection
Klasse B5
Wind load resistance
Class C3, Class B5
Drainage levels
4
Characteristics
Operating type
manual
Number of tracks
Single track
Track material
Stainless steel
Surface finishes
RAL, Powder, Anodised, Paint
Security glazing
Yes
CE marking
Yes
Cradle2Cradle
Yes
Colour-independent
Yes
