Reynaers ConceptPatio 155 Lift-and-Slide aluminum system
Thermal insulation
Uw 0.99 W/m²K
Air permeability
Class 4 (600Pa)
Watertightness
Class E900 (900Pa)
Wind load resistance
Class C4 (1600Pa)
Description
Reynaers ConceptPatio 155 - Expansive Views, Seamless Protection The Reynaers ConceptPatio 155 redefines the possibilities of open architecture, offering a premium aluminium sliding and folding door system engineered for large-scale apertures. With its robust structure and minimalist design, CP 155 delivers panoramic transitions between interior and exterior spaces while ensuring top-tier thermal insulation, airtightness, and watertight performance. Ideal for contemporary homes and commercial environments, this high-spec system enhances security without compromising elegance-offering expansive freedom, energy efficiency, and fortified peace of mind in one harmonious solution.
Advantages
High thermal insulation with Uw values as low as 0.99 W/m²K, enhancing energy efficiency.
Excellent air, water, and wind resistance, ensuring durability in various weather conditions.
Enhanced security features with burglar resistance up to RC2, complying with PAS 24 standards.
Supports large vent sizes up to 3500 mm in height and 2700 mm in width, accommodating expansive glazing areas.
Compatible with various glazing methods and thicknesses up to 52 mm, allowing for diverse design and performance requirements.
Offers multiple design variants, including standard, lift-slide, and monorail options, catering to diverse architectural styles.
Technical Characteristics
Min. height of vent
500 mm
Max. height of vent
3500 mm
Min. width of vent
700 mm
Max. width of vent
2700 mm
Max. weight of fixed vent
1500 kg
Min. width central closer
210 mm
Min. width meeting section
50 mm
Min. width transom profile
50 mm
Min. height threshold
4 mm
Performance
Thermal insulation - Uw
0.99 W/m²K
Uw Dependencies
Ug 0.6W/m²K
Air tightness
Class 4 (600Pa)
Water tightness
Class E900 (900Pa)
Wind load resistance
Class C4 (1600Pa)
Acoustics - Rw(C;Ctr)
42(-1;-3) dB
Durability
Class 4 (50000 cycles)
Depth Vent
68 mm
Depth frame-vent
155 mm

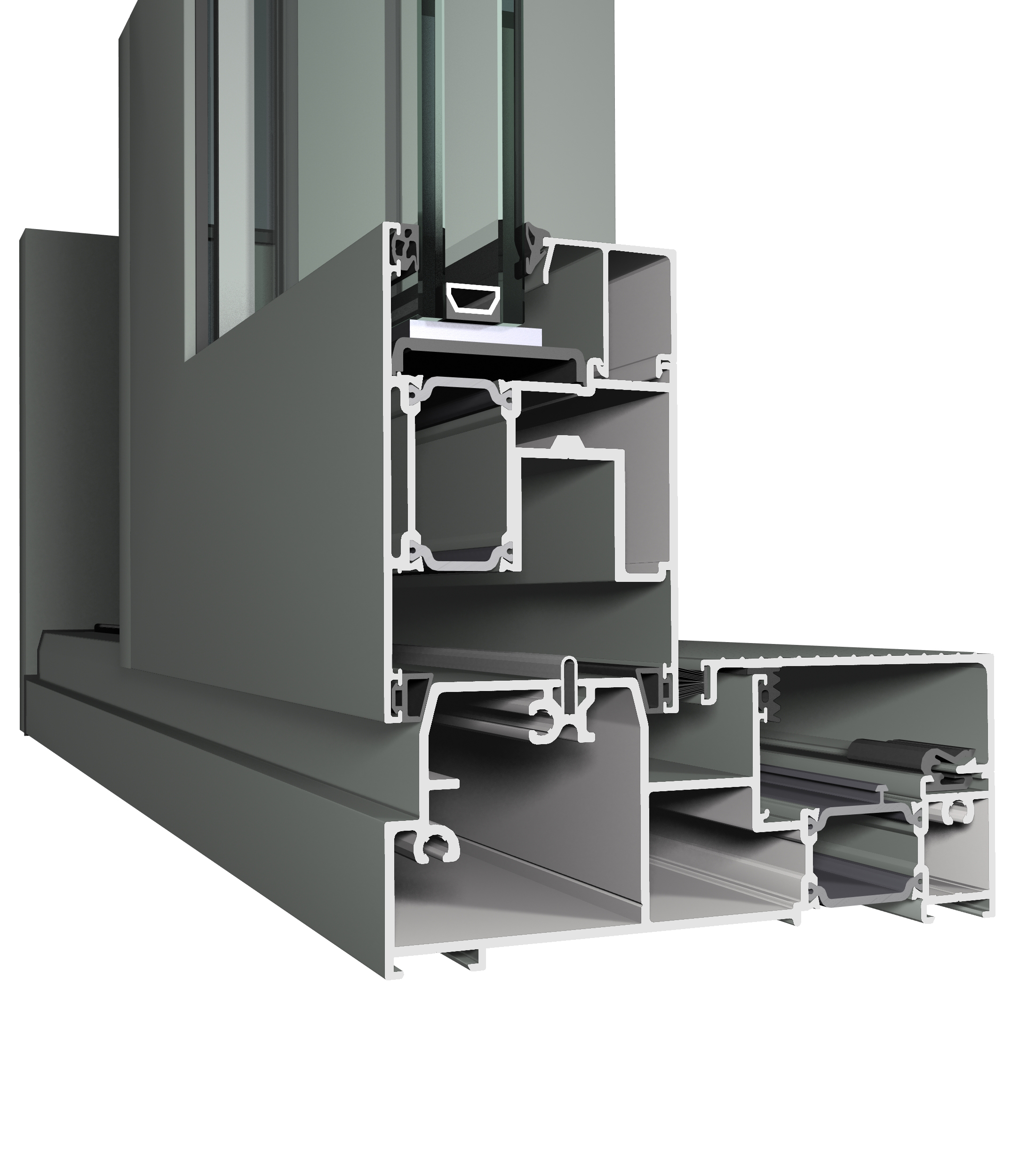

Depth frame monorail
155 mm

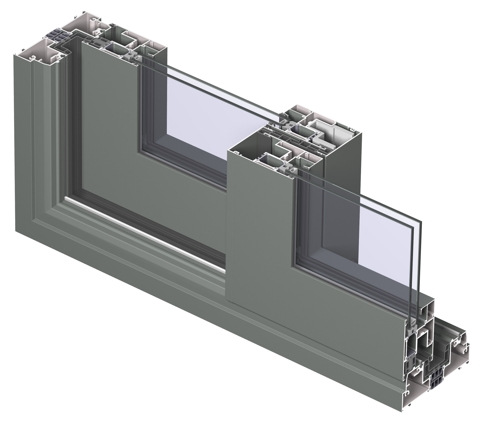

Depth frame 2-rail
155 mm

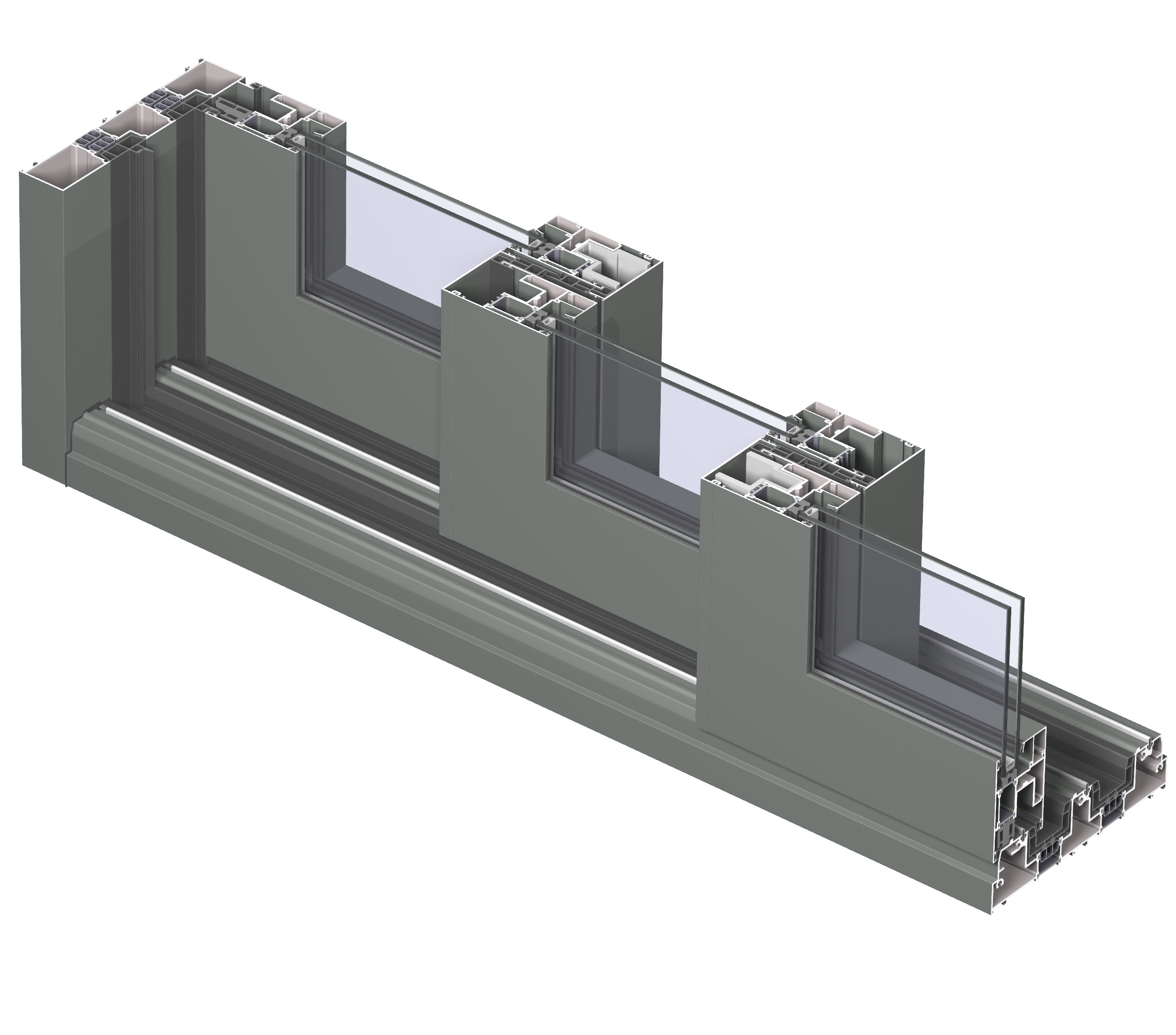

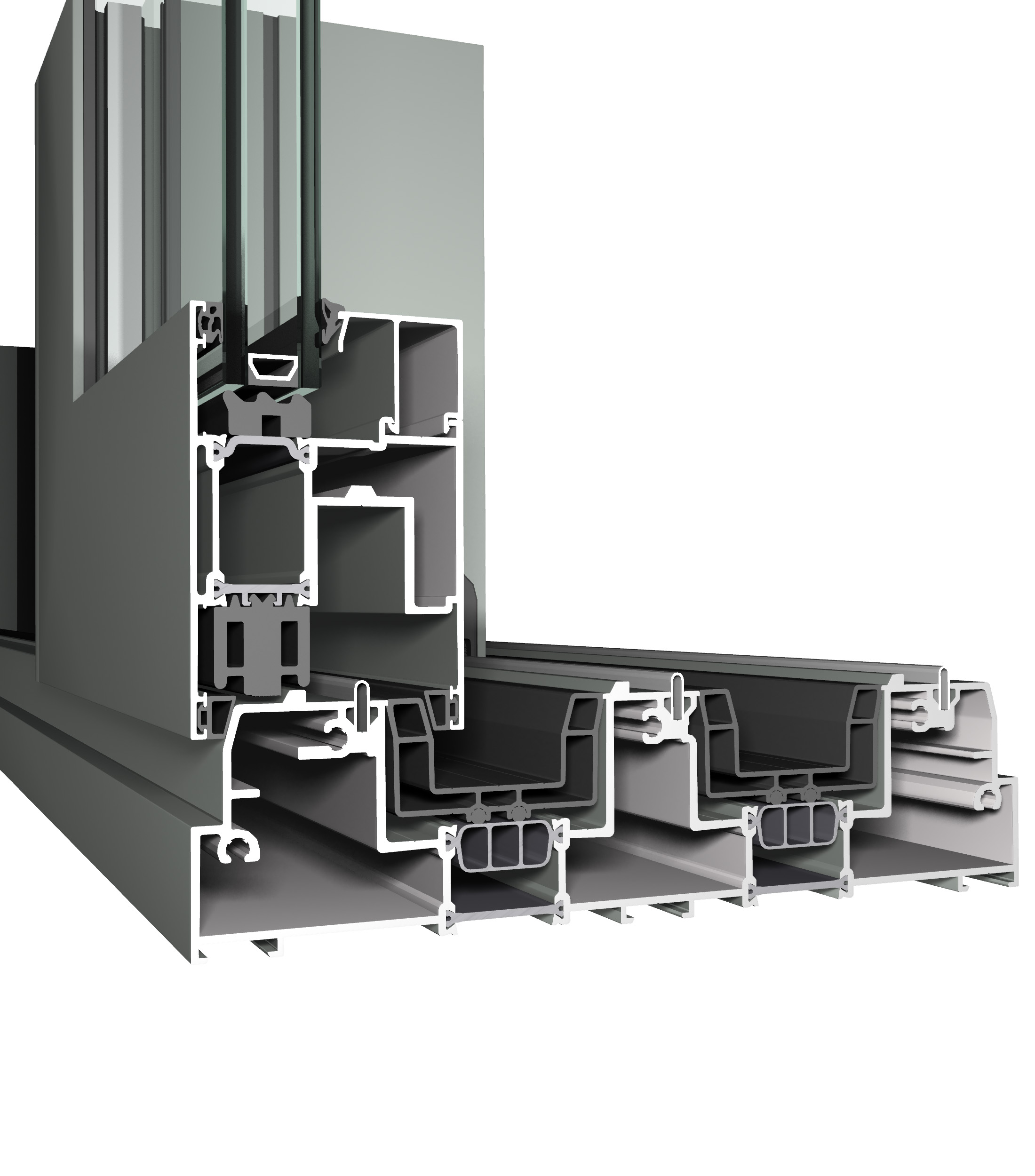

Depth frame 3-rail
242 mm
Min. glass thickness - vent
4 mm
Max. glass thickness - vent
52 mm
Rebate height
25 mm
