Reynaers ConceptFolding 77 aluminium folding door system
Thermal insulation
Uw = 1.3 W/m²K
Air permeability
Class 4 (600 Pa)
Watertightness
Class 9A (600 Pa)
Wind load resistance
Class C3 (1200 Pa)
Description

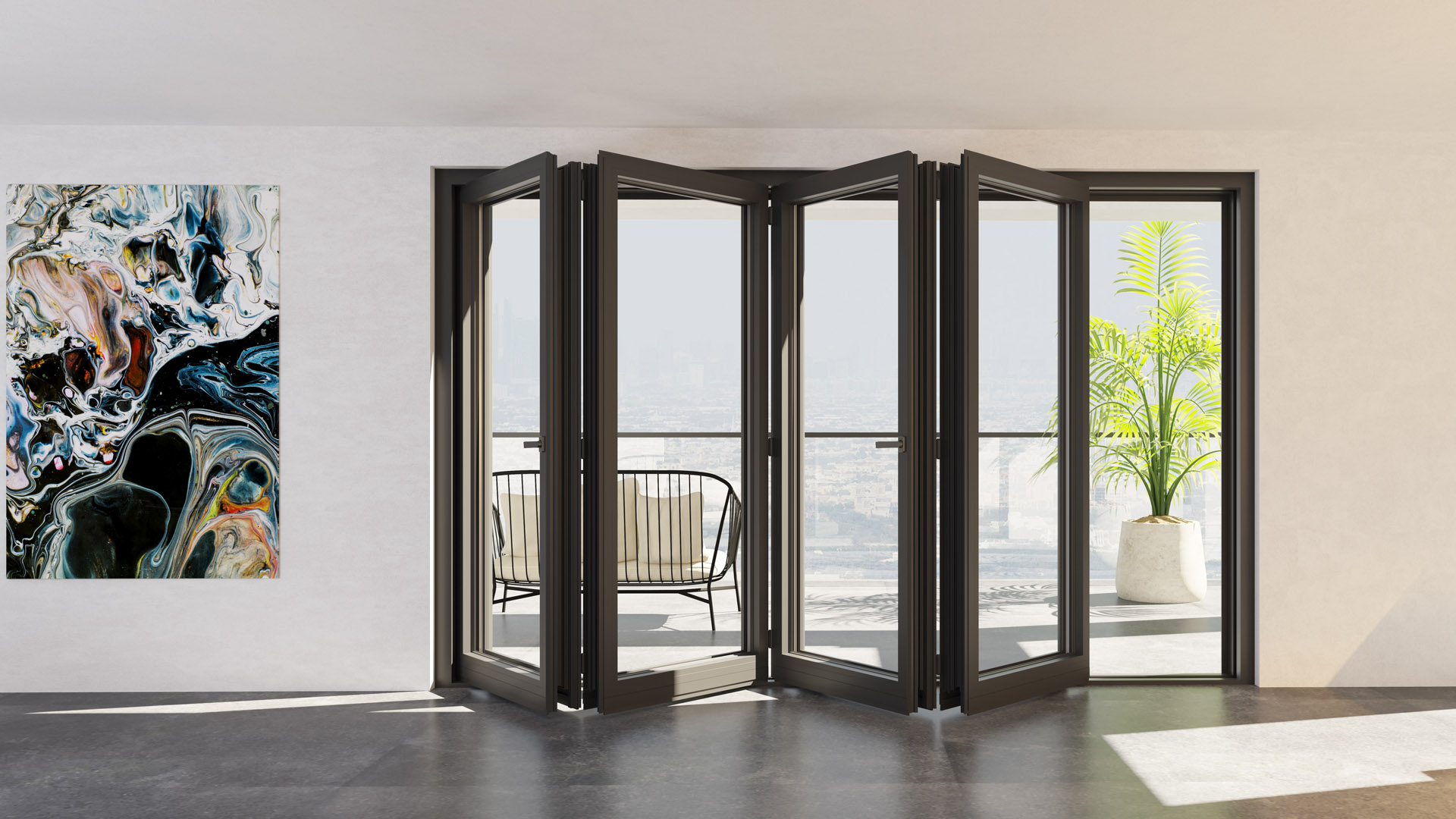

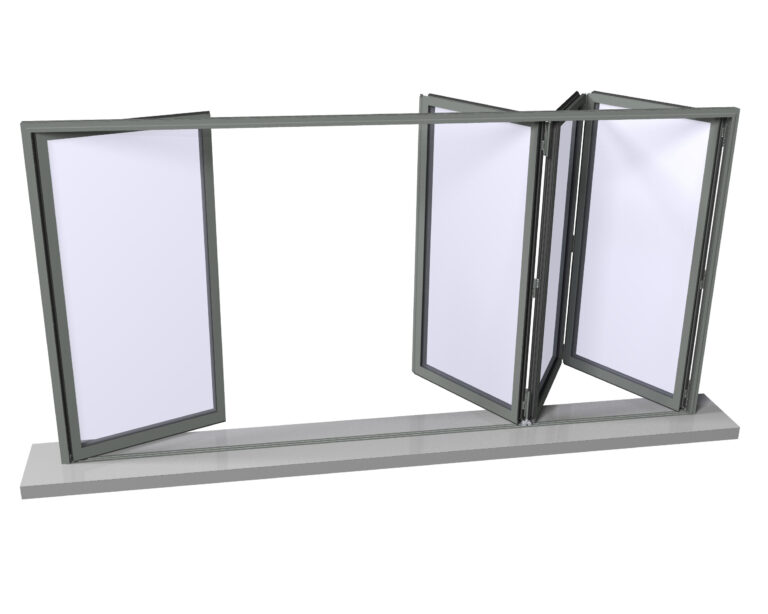

Reynaers ConceptFolding 77 – Elegance in Motion, Strength in Silence The Reynaers ConceptFolding 77 is a refined aluminum bi-fold door system that brings sophistication and engineering excellence into perfect alignment. With precision-crafted profiles and fluid folding mechanics, this system turns entire walls into graceful openings—seamlessly merging indoor luxury with outdoor freedom. Beyond its visual appeal, CF 77 excels in thermal performance, watertight sealing, and air control. Enhanced security elements further fortify its structure, making it a smart and stylish choice for upscale homes and demanding commercial venues alike.
Advantages
High thermal insulation with Uw values as low as 1.3 W/m²K, enhancing energy efficiency.

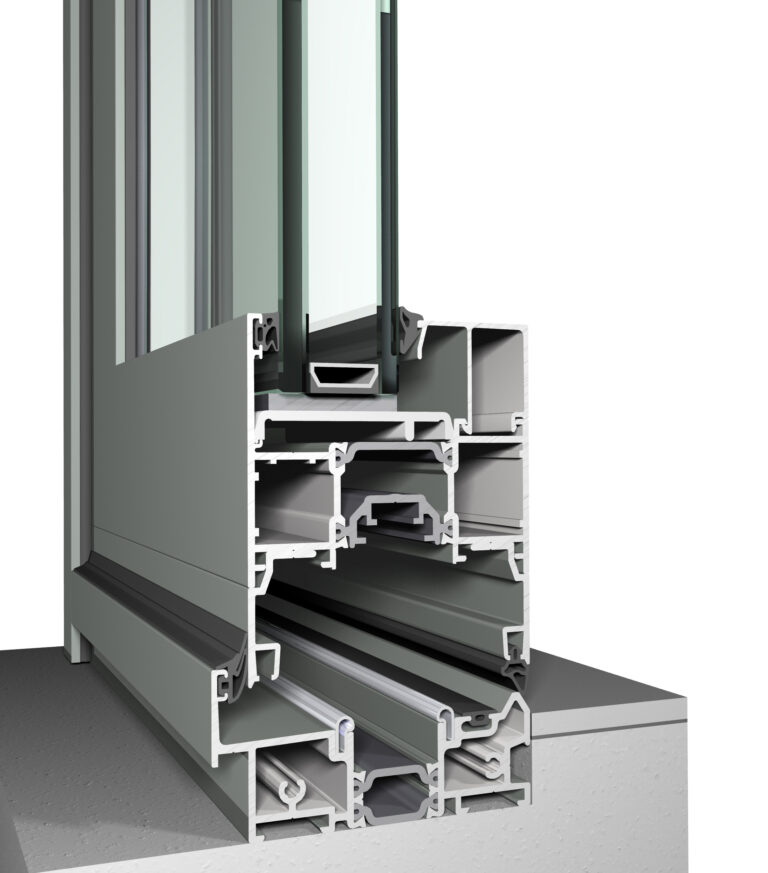

Excellent air, water, and wind resistance, ensuring durability in various weather conditions.
Enhanced security features with burglar resistance up to RC2, complying with PAS 24 standards.
Supports large vent sizes up to 3000 mm in height and 1200 mm in width, accommodating expansive glazing areas.
Compatible with various glazing methods and thicknesses up to 63 mm, allowing for diverse design and performance requirements.
Offers multiple design variants, including Functional and SlimLine, catering to diverse architectural styles.
Technical Characteristics
Min. height of vent
600 mm
Max. height of vent
3000 mm
Min. width of vent
400 mm
Max. width of vent
1200 mm
Max. weight of vent
120 kg

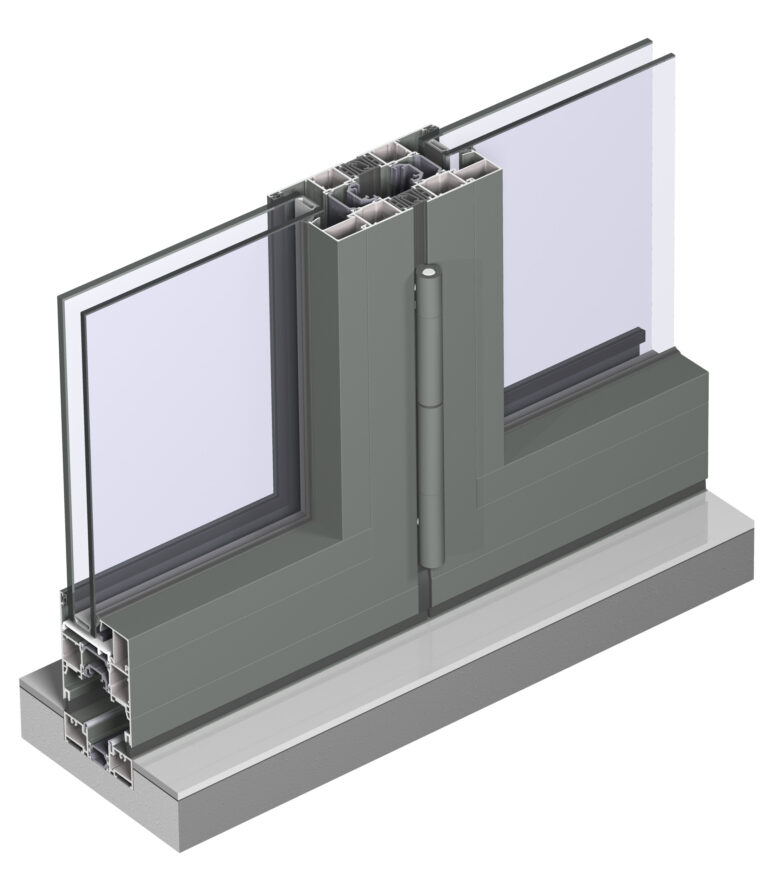

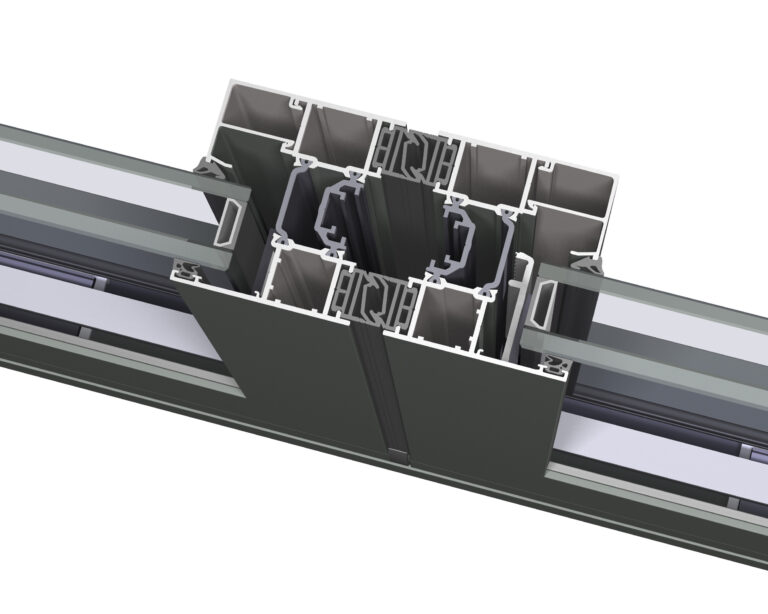

Min. width meeting section
122 mm
Min. width transom profile
48 mm
Min. height threshold
5 mm
Depth frame
77 mm
Depth Vent
77 mm
Depth frame-vent
77 mm
Min. glass thickness - vent
6 mm
Max. glass thickness - vent
63 mm
Rebate height
25 mm
Performance
Thermal insulation (Best) - Uf
2.2 W/m²K
Thermal insulation - Uw
1.3 W/m²K
Uw Dependencies
Ug 0.6W/m²K
Air tightness
Class 4 (600Pa)
Water tightness
Class 9A (600Pa)
Wind load resistance
Class C3 (1200Pa)
Acoustics - Rw(C;Ctr)
45(-1;-5) dB
Durability
Class 3 (20000 cycles)

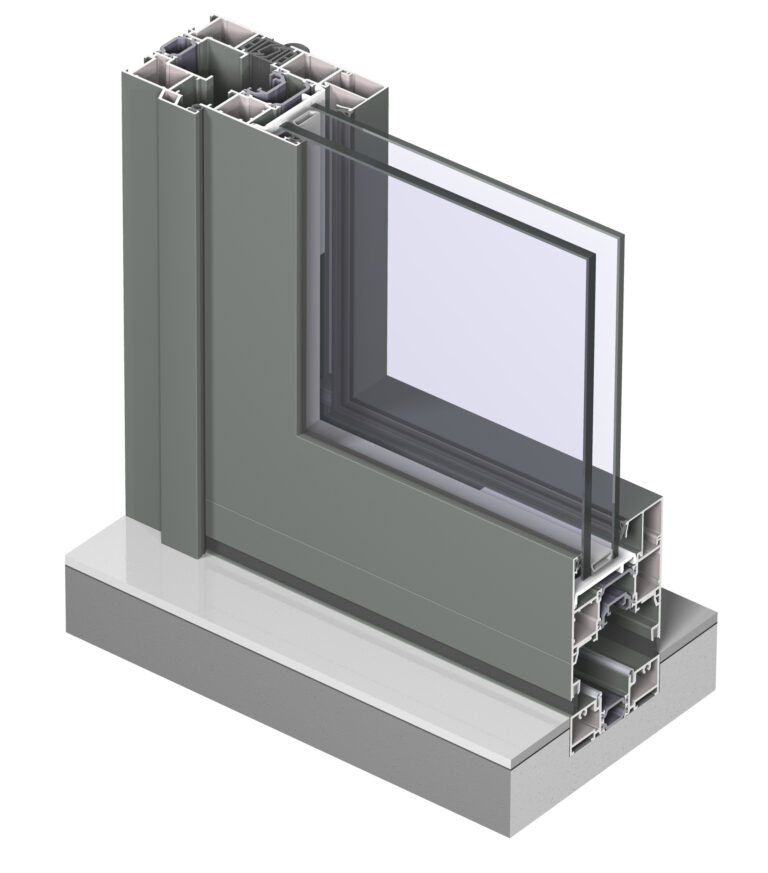

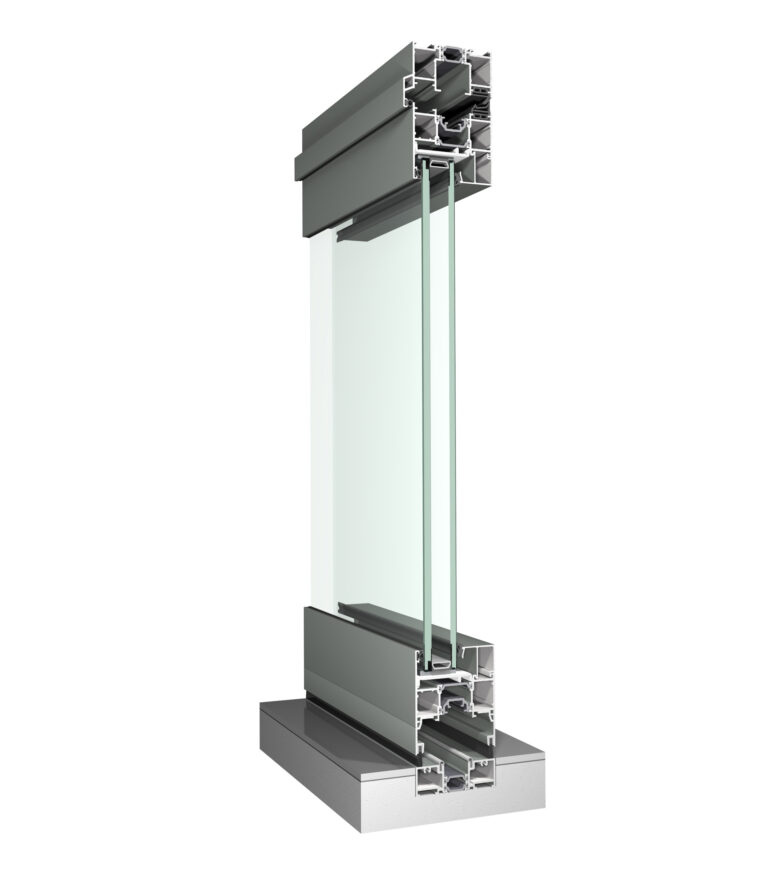

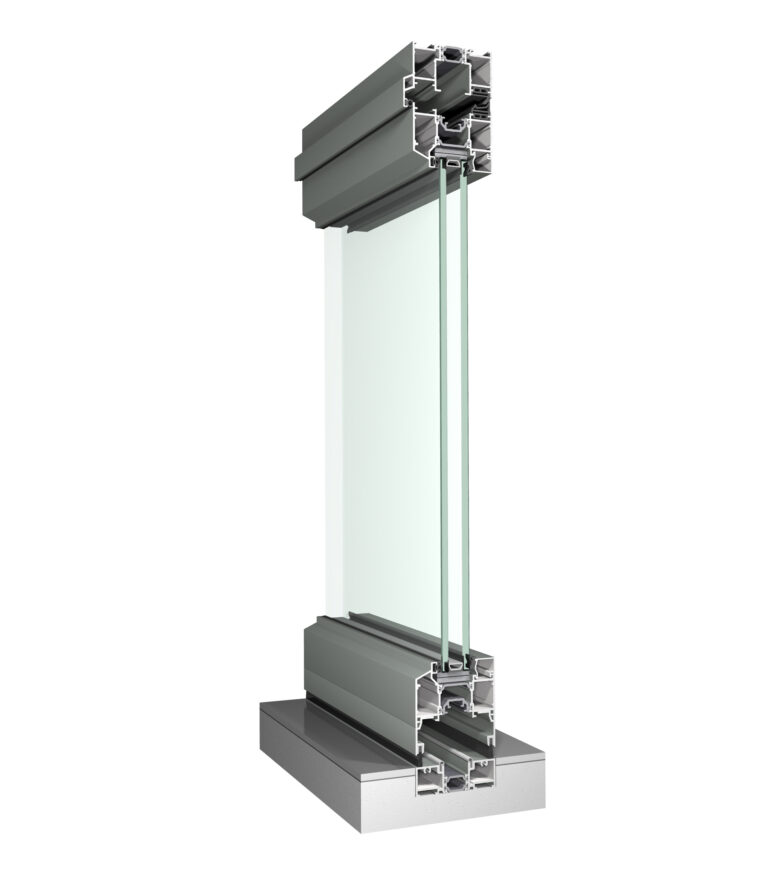

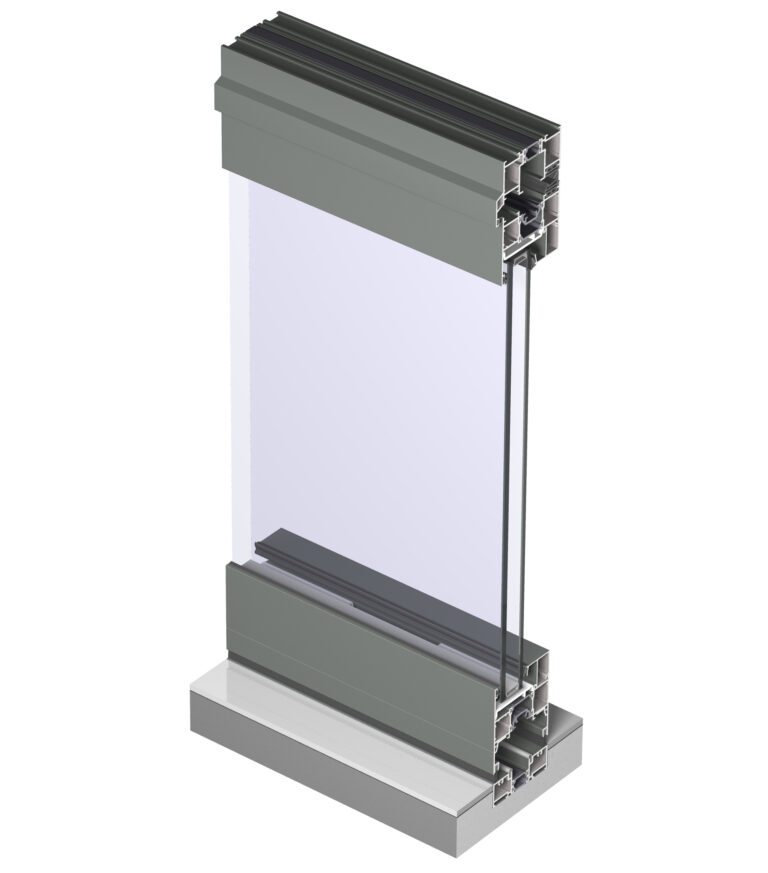

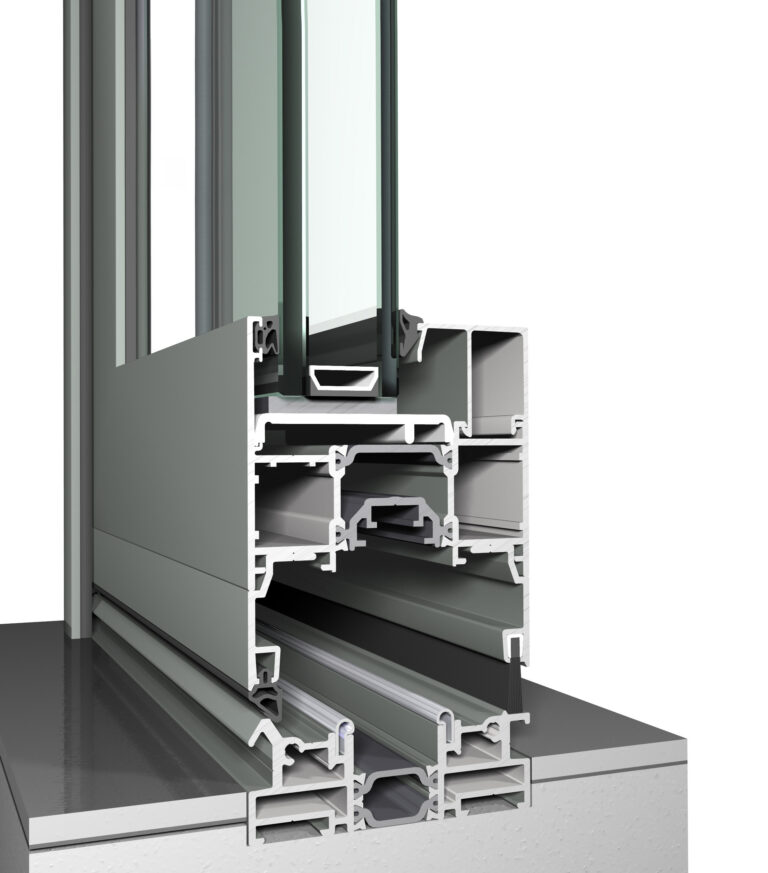

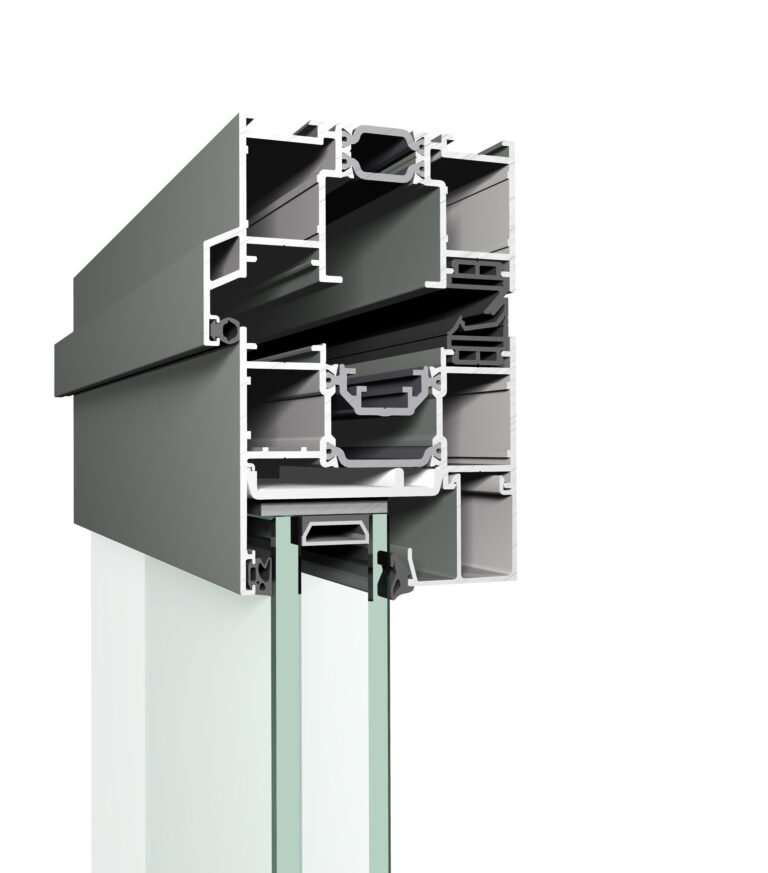

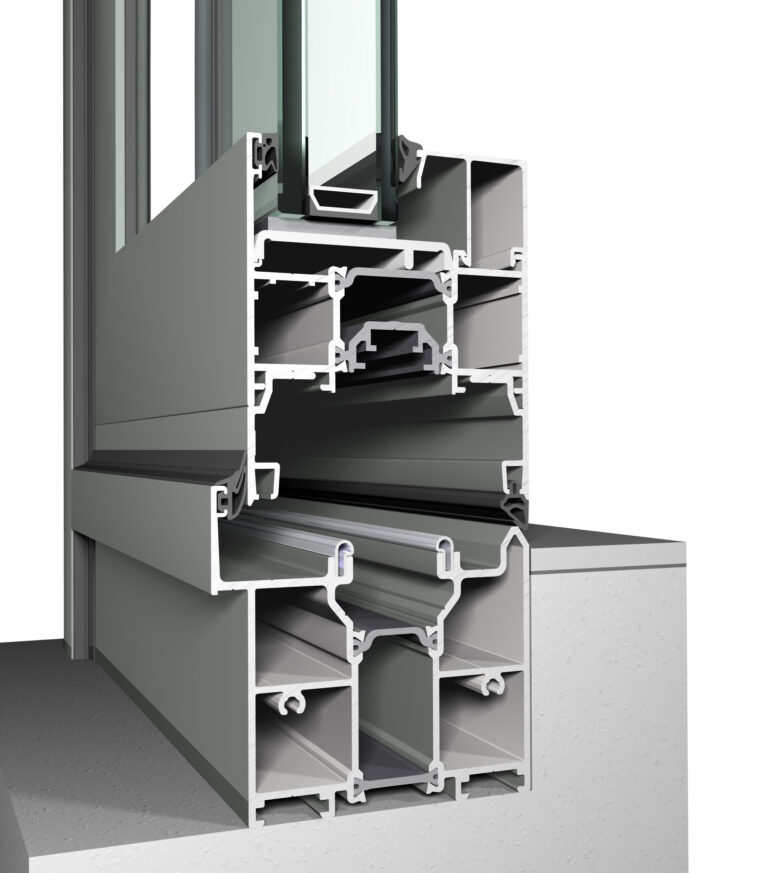

Sections
