Reynaers MasterLine 8 Pivot Doors
Thermal insulation
Uf = 1.3 W/m²K
Air permeability
Class 4 (600 Pa)
Watertightness
Class 7A (300Pa)
Wind load resistance
Class C3 (1200 Pa)
Description

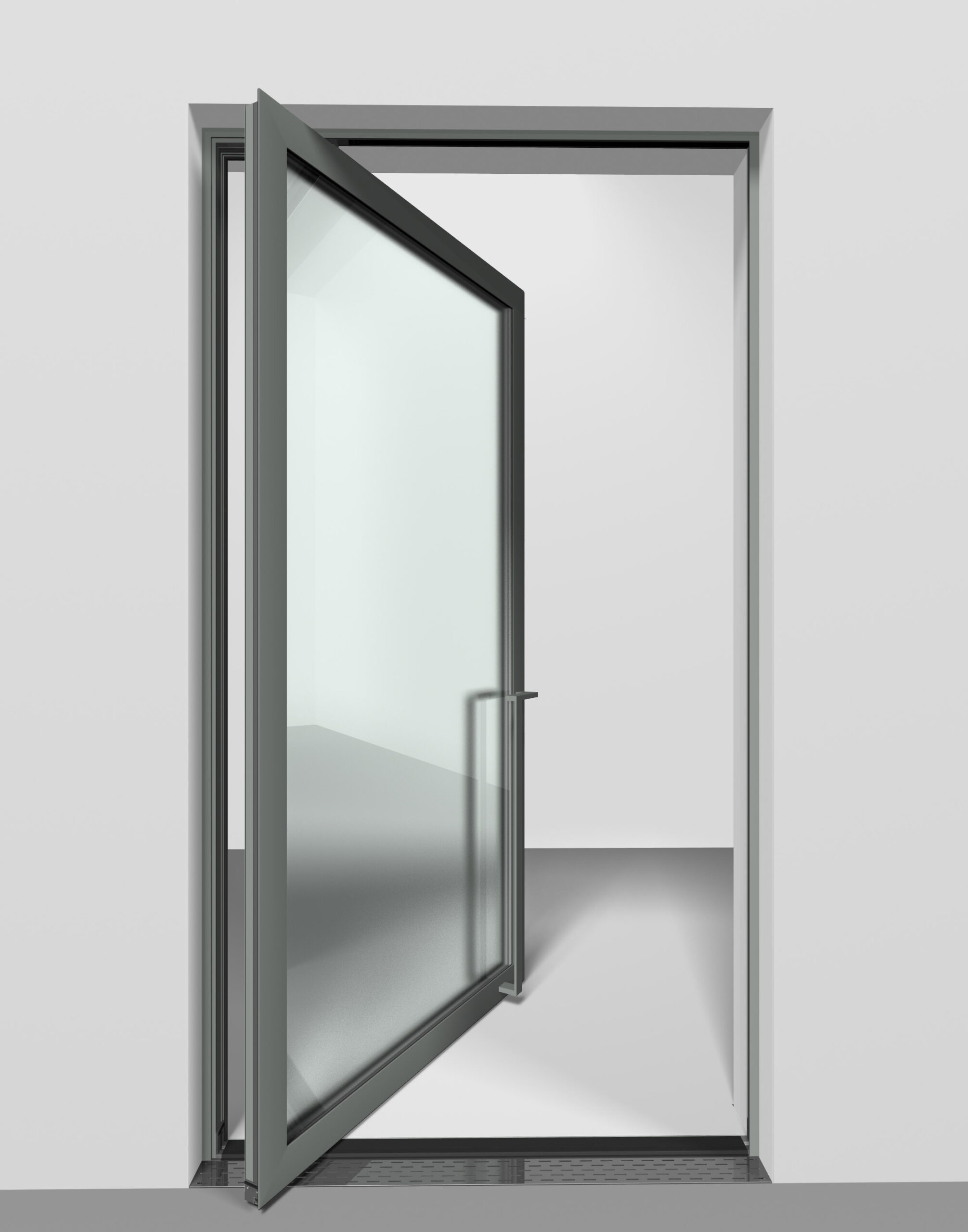

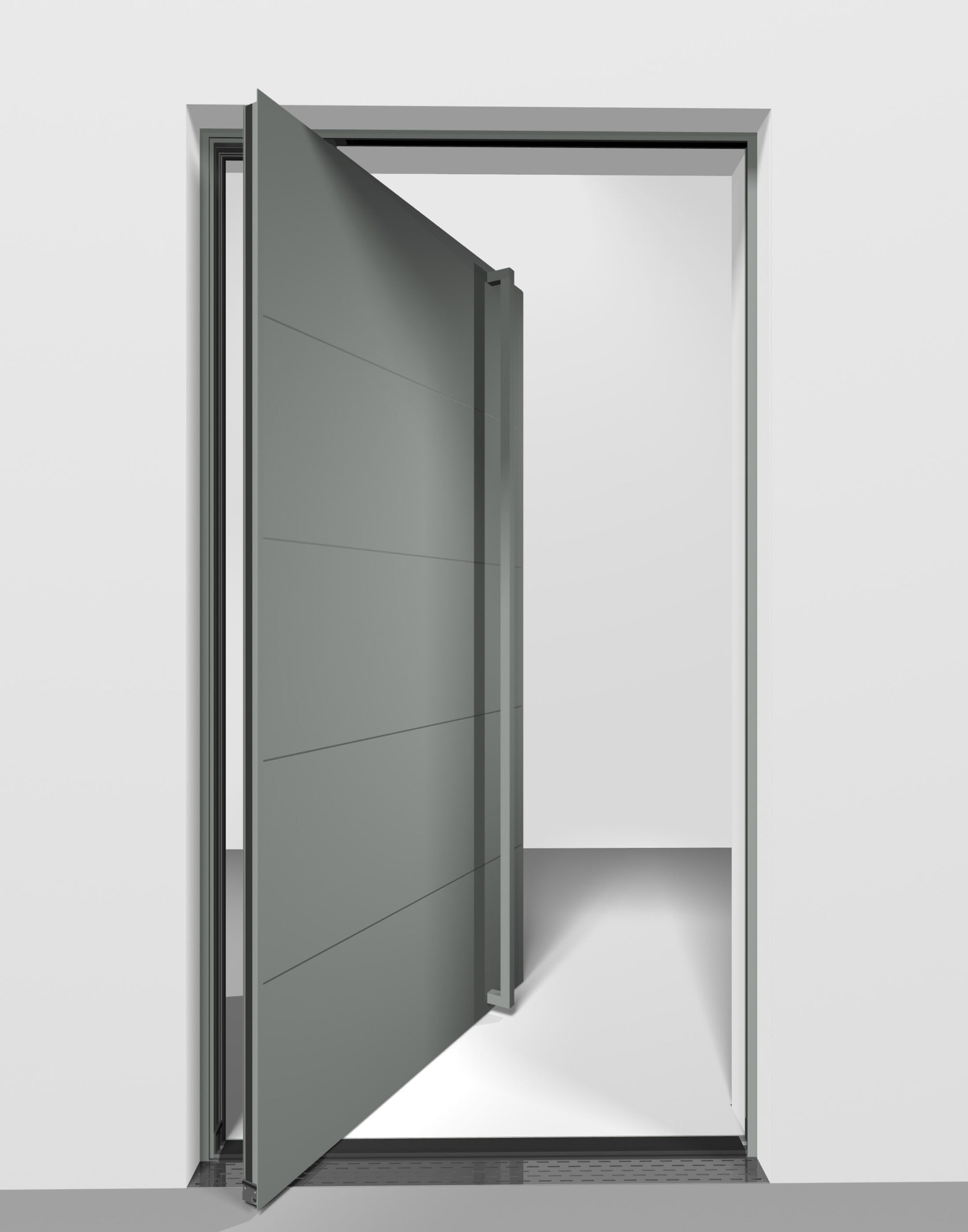

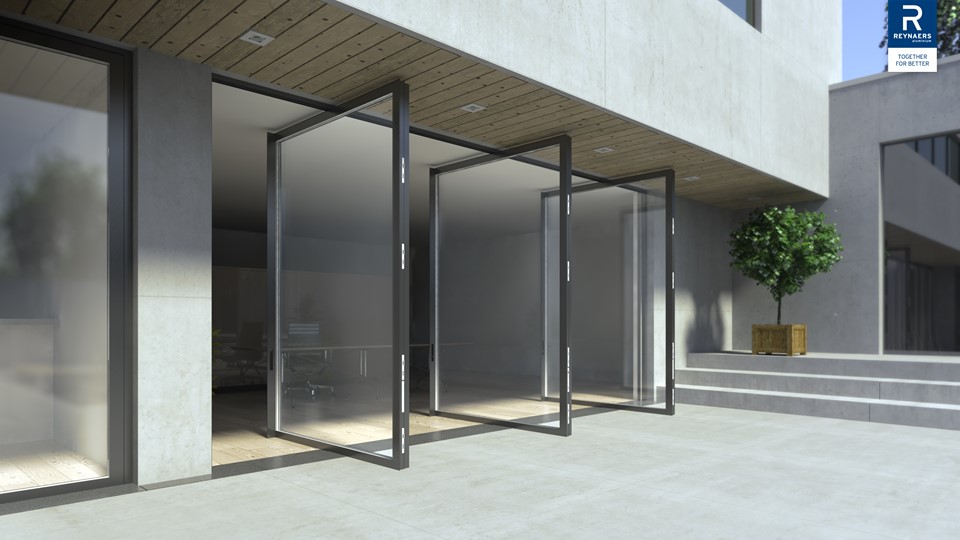

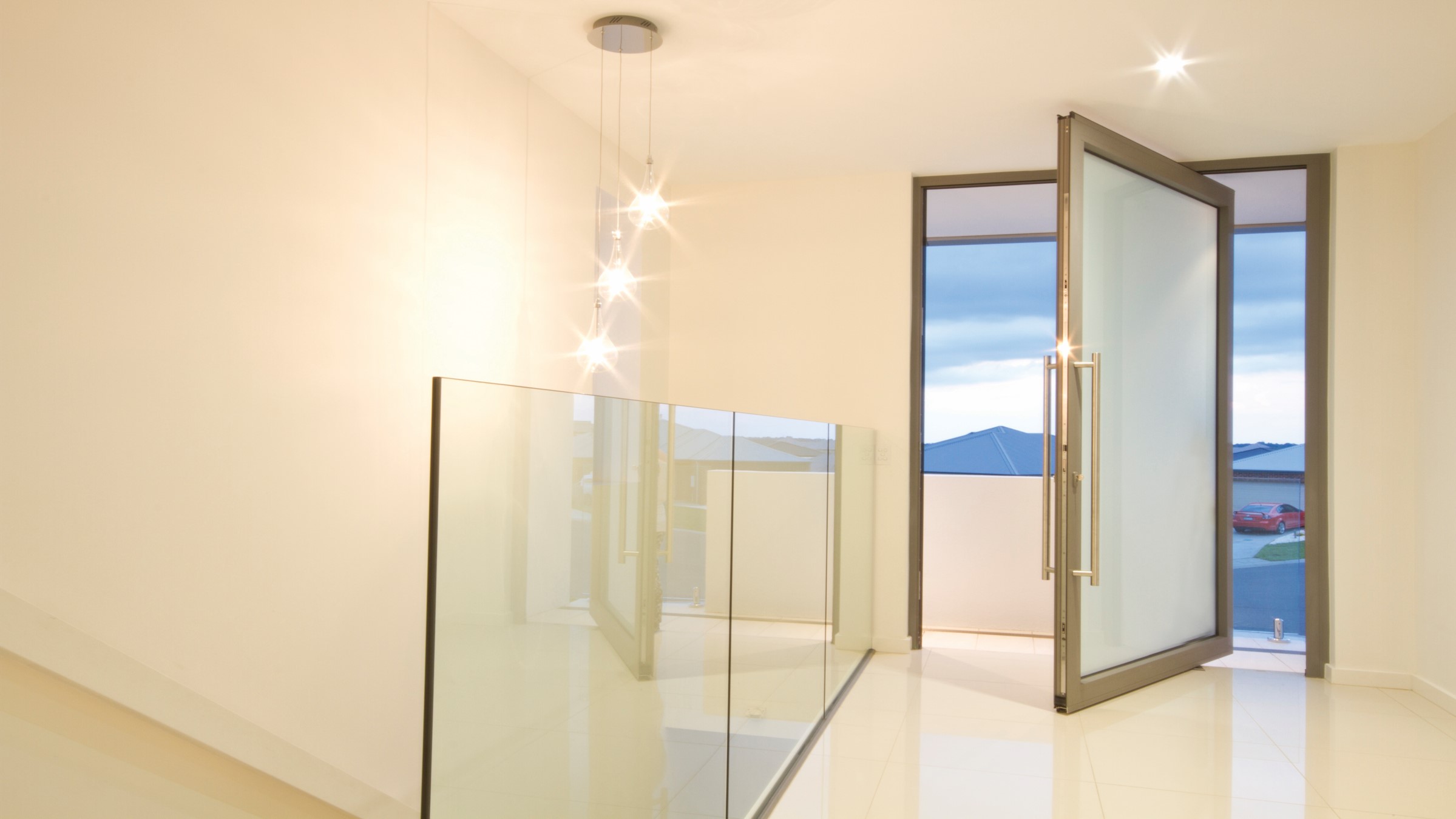

Reynaers MasterLine 8 Pivot Door – Grand Entrances, Seamlessly Engineered The MasterLine 8 Pivot Door by Reynaers transforms entrances into architectural statements, balancing monumental scale with precise performance. Crafted from premium-grade aluminium, this pivoting masterpiece merges aesthetic boldness with high thermal efficiency and fortified security—delivering a sophisticated solution for contemporary homes and commercial spaces alike. Designed for expansive dimensions without sacrificing stability or energy integrity, it creates a smooth, modern transition between indoors and out, while elevating the character of any façade with minimalist grandeur.
Advantages
Supports large dimensions: up to 4000 mm in height and 2500 mm in width, accommodating expansive entrance designs.
High thermal insulation with Uf values of 1.5 W/m²K and Ud values of 1.3 W/m²K, enhancing energy efficiency.
Excellent air, water, and wind resistance, ensuring durability and comfort in various weather conditions.
Enhanced security features with burglar resistance up to RC2, providing peace of mind.

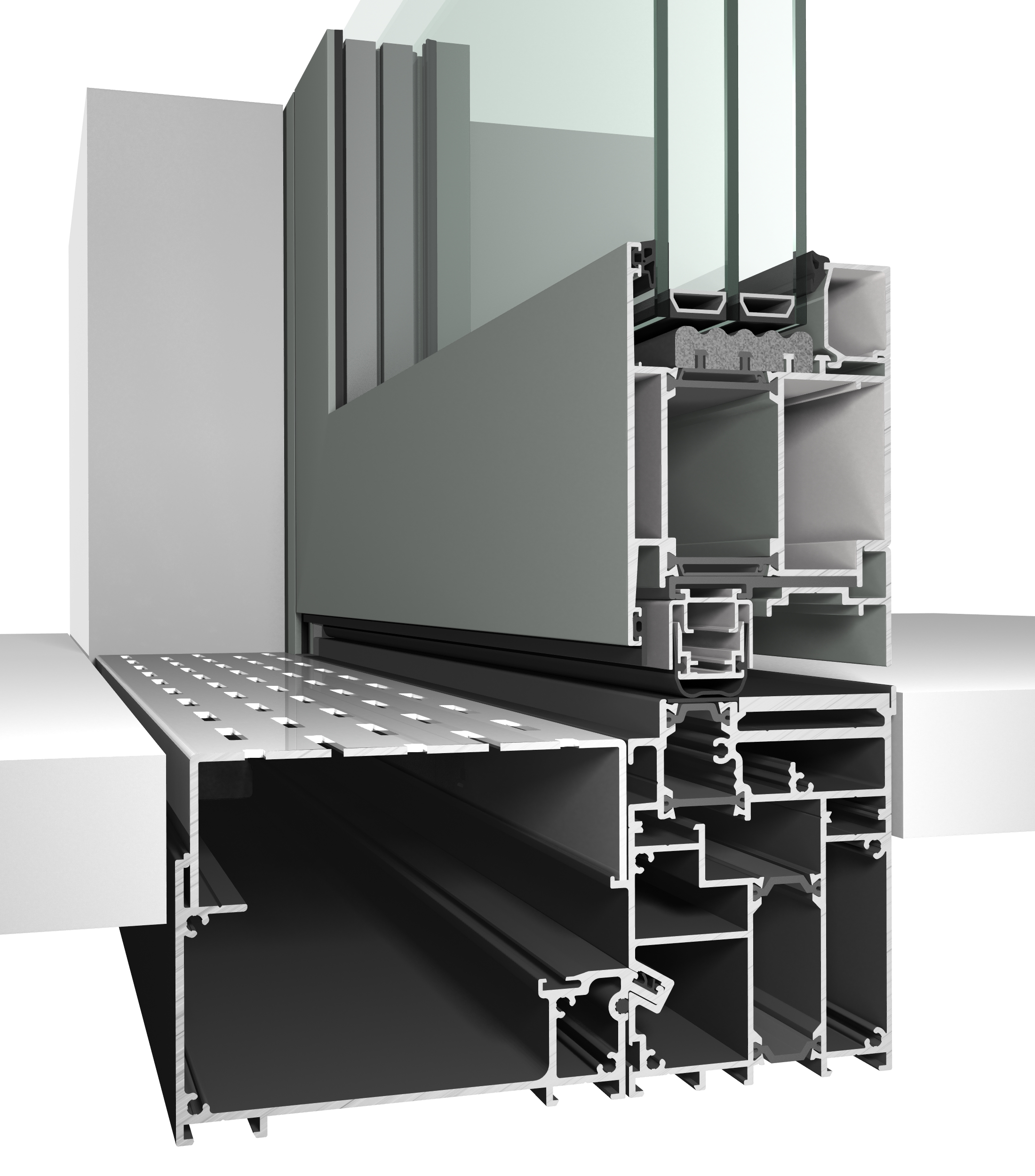

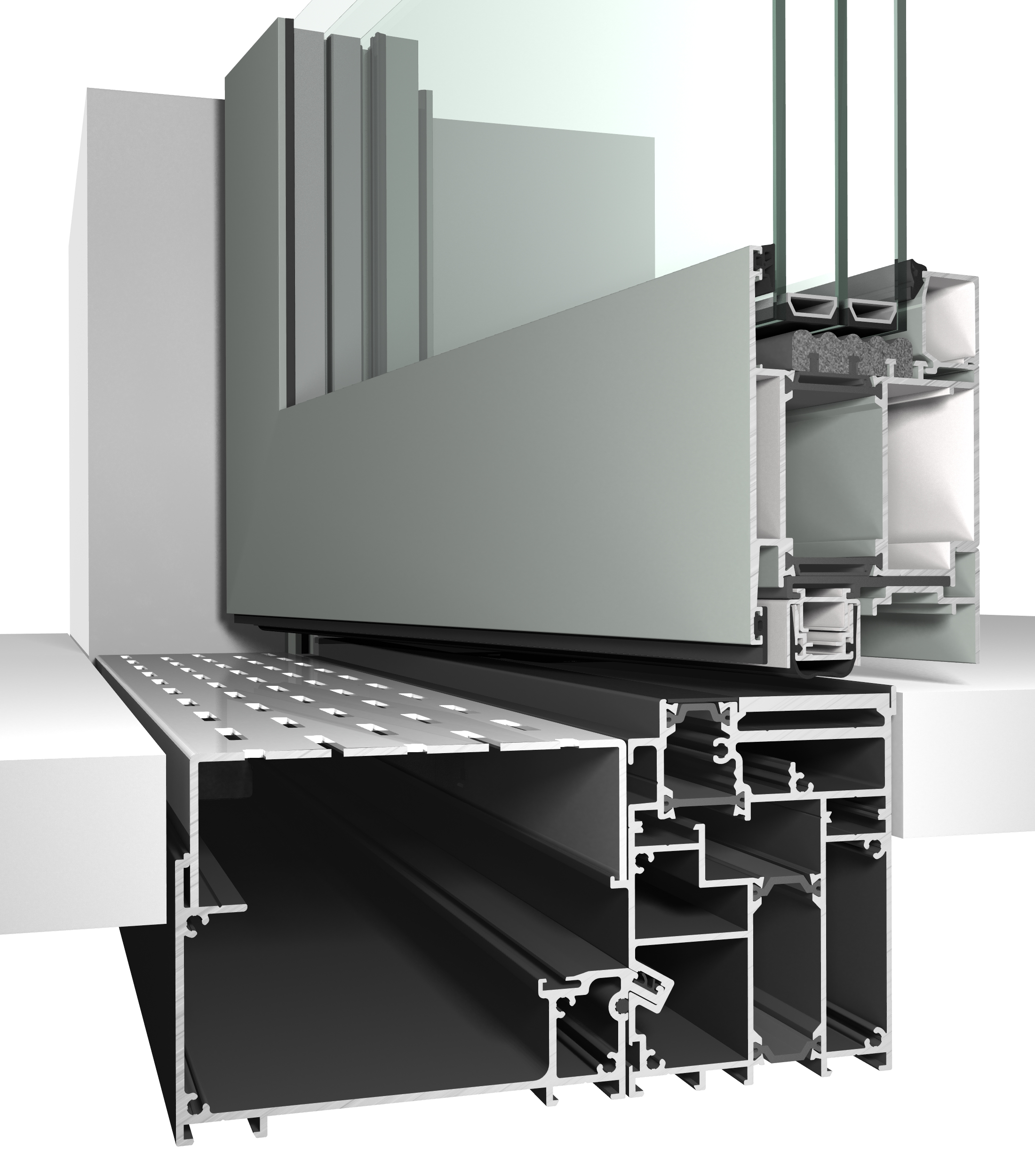

Offers design flexibility with options like low or zero thresholds, concealed drainage, and motorised operation.
Compatible with various glazing methods and thicknesses up to 62 mm, allowing for diverse aesthetic and performance requirements.
Certificates
Technical Characteristics
Min. height of vent
500 mm
Max. height of vent
3000 mm
Min. width of vent
500 mm
Max. width of vent
1400 mm
Max. weight of vent
250 kg
Max. weight of fixed vent
250 kg
Max. weight of glass
1200 kg
Min. frame width (inward opening)
68.5 mm
Min. vent width (inward opening)
78.5 mm
Min. frame-vent width (inward opening)
153 mm
Min. frame width (outward opening)
42.5 mm
Min. vent width (outward opening)
104.5 mm
Min. frame-vent width (outward opening)
153 mm
Min. width transom profile
50 mm
Min. height threshold
0 mm
Depth frame
77 mm
Depth Vent
77 mm
Depth frame-vent
77 mm
Rebate height
27 mm
Performance
Thermal insulation (Best) - Uf
1.3 W/m²K
Thermal insulation - Ud
0.98 W/m²K
Uw Dependencies
Ug 0.6W/m²K
Air tightness
Class 4 (600Pa)
Water tightness
Class 7A (300Pa)
Wind load resistance
Class C3 (1200Pa)
Acoustics - Rw(C;Ctr)
43(-1;-4) dB
Durability
Class 8 (1000000 cycles)
Burglar resistance
PAS 24
Impact resistance
I5 - E5
Fire resistance
EI₂ 30
