Description

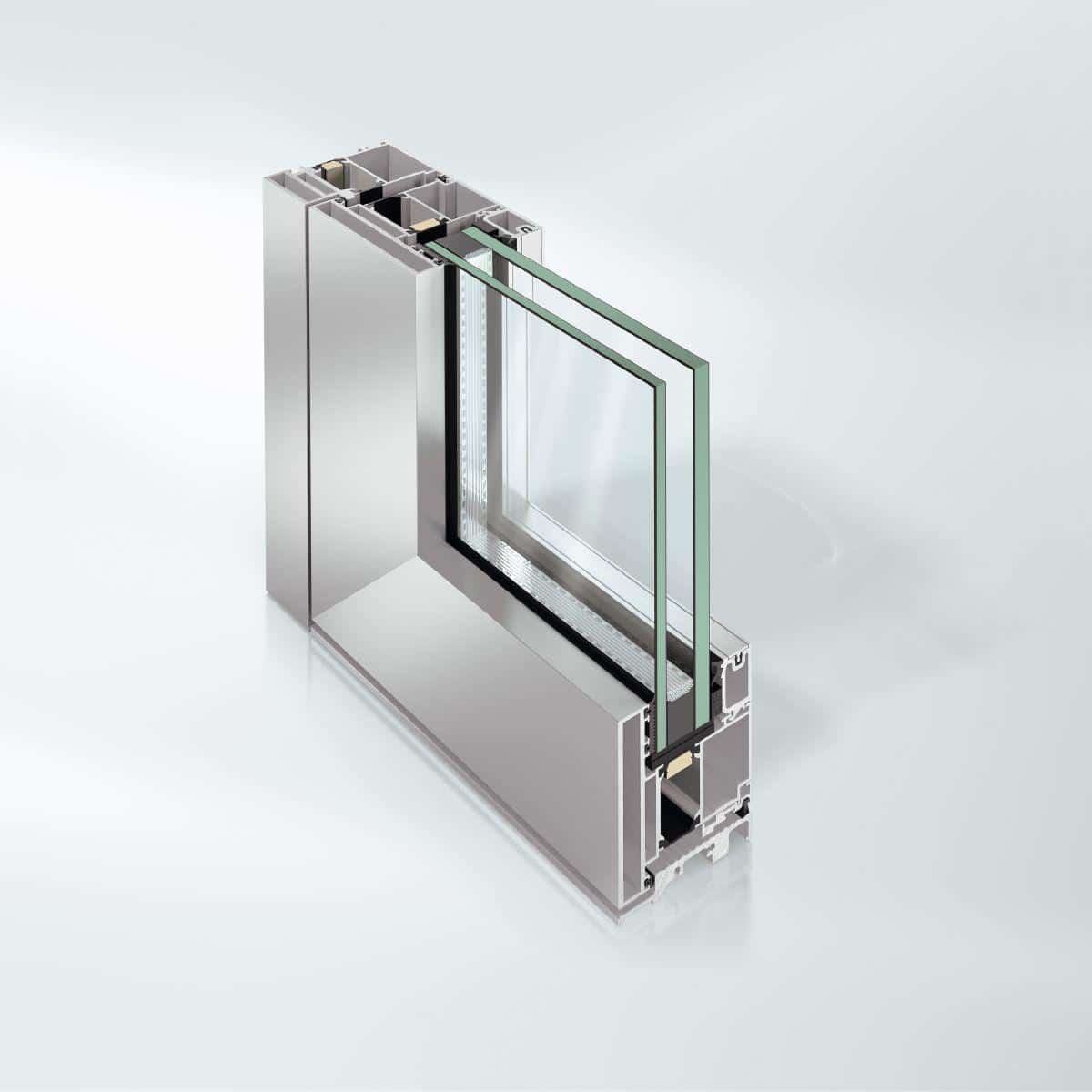

Schüco ADS 90 XR - Discreet Strength for High-Security Architecture The Schüco ADS 90 XR (Explosion-Resistant) door system delivers fortified protection without aesthetic compromise. Tested under the rigorous ISO 16933 arena air-blast protocol, it offers certified blast resistance while retaining the sleek appearance and functional elegance of standard Schüco door solutions. Developed for critical infrastructure and sensitive environments-ranging from military installations and embassies to petrochemical sites and banking institutions-this robust system supports both single- and double-leaf outward-opening configurations. Despite its reinforced construction, the ADS 90 XR does not sacrifice everyday performance. It upholds the highest standards in thermal insulation, acoustic attenuation, and weather resistance, maintaining visual consistency with non-resistant Schüco systems for cohesive architectural integration. The system's adaptability extends further, allowing installation within fixed wall configurations and seamless alignment with Schüco's blast-resistant façade solutions. For enhanced operational safety and compliance, only certified fabricators are authorized to produce this specialized system.

Advantages

Blast-resistant design tested in accordance with ISO 16933, achieving EXV 19 classification (hazard level E "low hazard").
Combines high security with modern architectural design, suitable for various applications including military and high-security areas.
Meets all requirements of standard doors regarding thermal insulation, sound reduction, and weathertightness.
Visually indistinguishable from standard Schüco doors, maintaining aesthetic consistency.
Wide range of installation positions, including fixed wall units and combinations with blast-resistant Schüco façade systems.
Optional panic function available: single-leaf doors with Schüco SafeMatic lock, double-leaf doors with Schüco claw bolt and pin lock.
Area of application: External use, Commercial projects
Direction of opening: Side-hung, Outward, Single and double-vent

Technical Characteristics

Min. face width
161 mm
Max. height
2563 mm
Max. width
2686 mm
Min.-max. glass/panel thickness
...38 mm
Max. weight
300 kg
Min.-max. width
810...2686 mm
Min.-max. height
1700...2563 mm
Min. clear opening dimension (w x h)
760 x 1918 mm
Max. clear opening dimension (w x h)
2540 x 2470 mm
Max. glass/panel thickness
38 mm

Performance

Uf value of frame (≥)
2.3 W/(m²·K)
Air permeability
Class 2
Watertightness
Class 5A
Wind load resistance
Class C3
Burglar resistance
Up to RC3

Characteristics

Blast resistance
Yes
Emergency exit door
Yes
Security system
Yes
