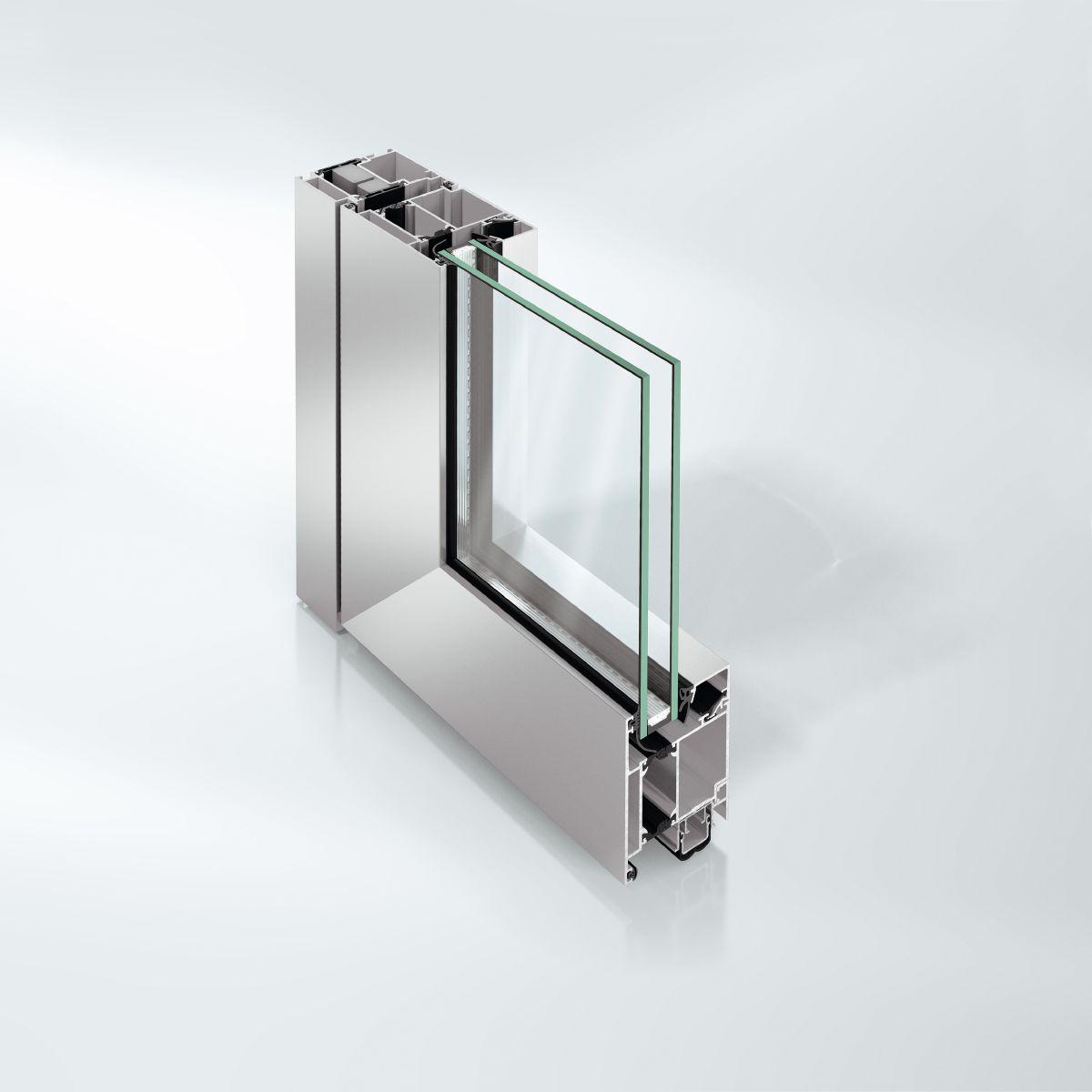

Schüco Door System ADS 70 HD
Thermal insulation
Uf = 2.3–2.5 W/(m²·K)
Air permeability
Class 2 (EN 12207)
Watertightness
Class 5A (EN 12208)
Wind load resistance
Class C2–C3 (EN 12210)
Burglar resistance
Up to RC3 (EN 1627)
Description
Schüco ADS 70 HD: the perfect combination of durability and elegance. The Schüco ADS 70 HD (Heavy Duty) door system is designed for durability and visual impact. It transforms building entrances into bold architectural statements. This system can accommodate large door sizes, making it both strong and sophisticated — perfect for high-traffic commercial environments. It is constructed from heavy-duty aluminum with a 70mm basic depth, and it supports generous opening widths and clear heights. This ensures ease of movement and a welcoming atmosphere in public spaces.
Advantages
High durability suitable for heavy usage in public buildings.
Supports large door sizes with heights up to 3000 mm and widths up to 1400 mm.
Enhanced security with burglar resistance up to RC3.
Thermally insulated design improving energy efficiency.
Compatible with various surface finishes including powder coating and anodizing.
Suitable for integration with building automation systems.
Area of application: Residential projects, Commercial projects
Opening type: Side-hung, Inward and outward, Single and double-vent
Certificates
Technical Characteristics
Max. height
3000 mm
Max. width
1400 mm
Max. glass/panel thickness
52 mm
Max. vent weight
200 kg
Min.-max. height
...3000 mm
Min.-max. width
...1400 mm
Min. face width
147 mm
Min.-max. glass/panel thickness
6...52 mm
Performance
Uf value of frame (≥)
2.3 W/(m²·K)
Air permeability
Class 2
Watertightness
Class 5A
Wind load resistance
Class C3
Burglar resistance
Up to RC3
Impact resistance
Class 1
Max. sound reduction index Rwp
43 dB(A)
Characteristics
DIN direction
DIN LH / RH
Mechanical strength
Class 3
Proof of durability
Class 8
CE marking
Yes
Typologies
