Description

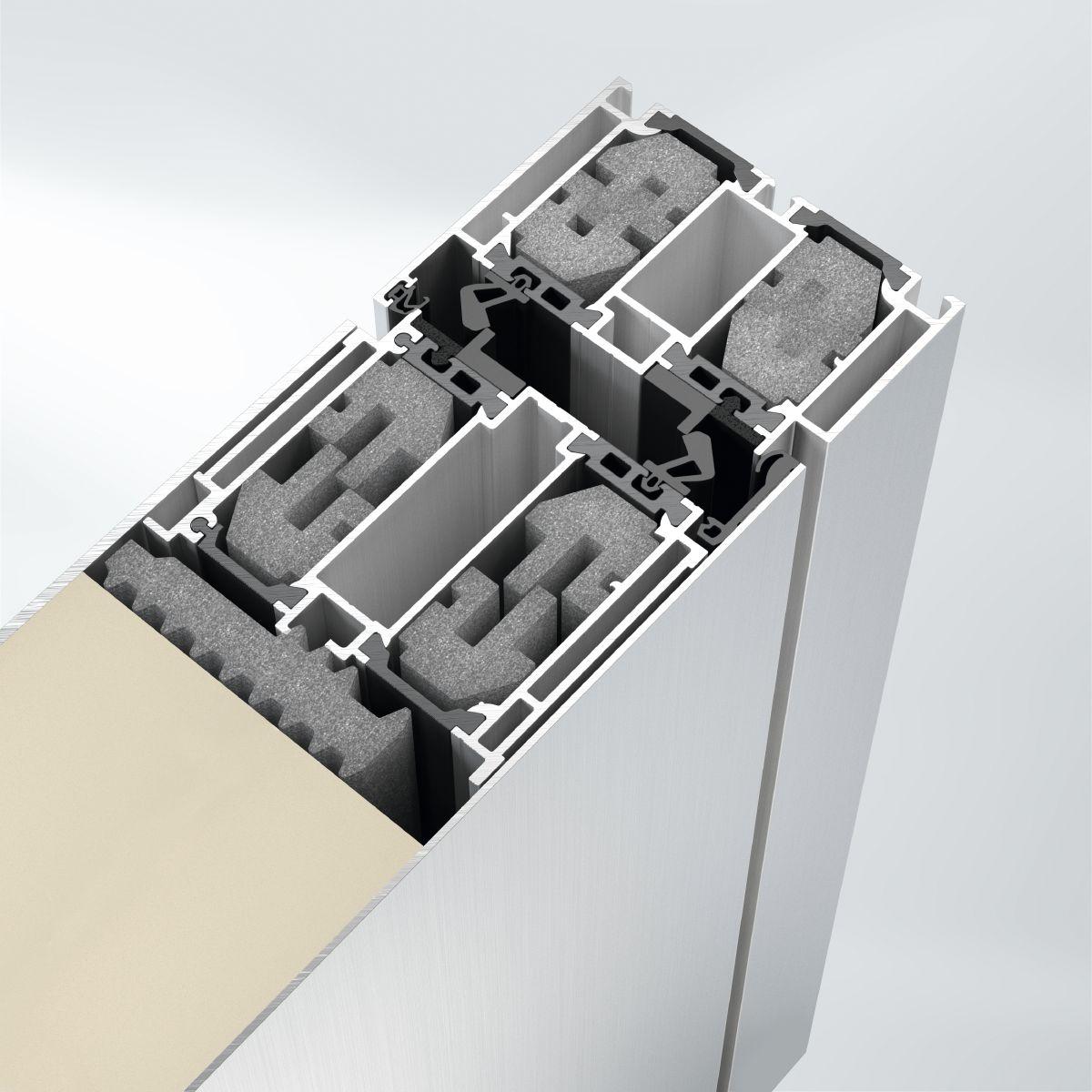

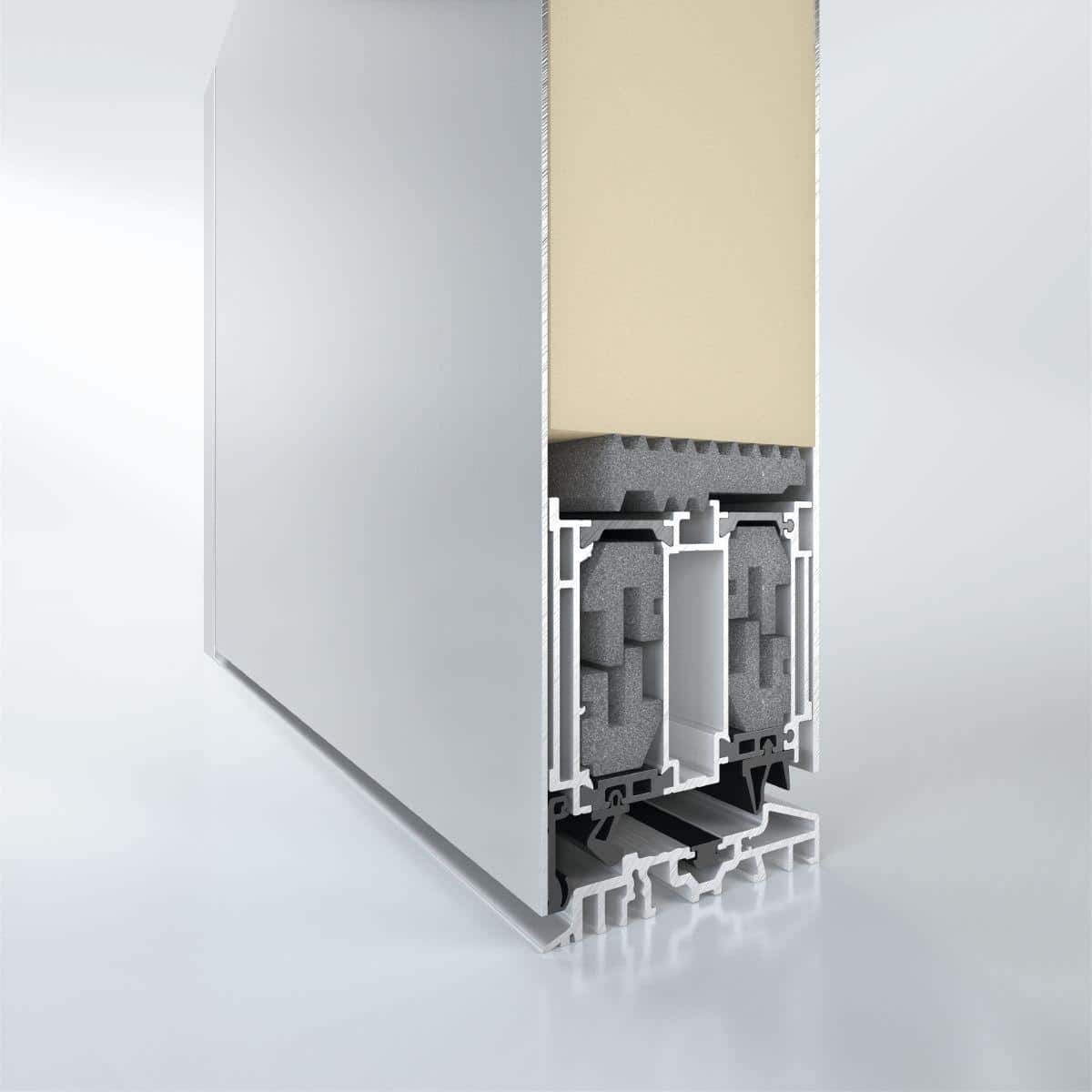

Schüco AD UP 90.SI - Elevating Efficiency to Passive House Standards Engineered for uncompromising thermal performance, the Schüco AD UP 90.SI door system stands as the pinnacle of the AD UP series-delivering insulation levels that meet the stringent criteria of passive house construction. Featuring the same advanced profile geometry across the platform, this system integrates modular foam inserts that dramatically enhance its thermal envelope. The result: ultra-low heat transmission values without compromising structural integrity or aesthetic appeal. Its compatibility with automation components and wide-ranging design options empowers architects and developers to realize visionary door concepts that blend energy efficiency with luxury and ease of use-perfectly suited to high-end residential or commercial applications where performance meets prestige.

Advantages

High thermal insulation with Uf values from 1.1 W/(m²·K).
Supports large door sizes with heights up to 2500 mm and widths up to 1250 mm.
Enhanced security with burglar resistance up to RC2.
Compatible with various surface finishes including powder coating and anodizing.
Suitable for integration with building automation and access control systems.
Designed for high-traffic areas, ensuring durability and longevity.

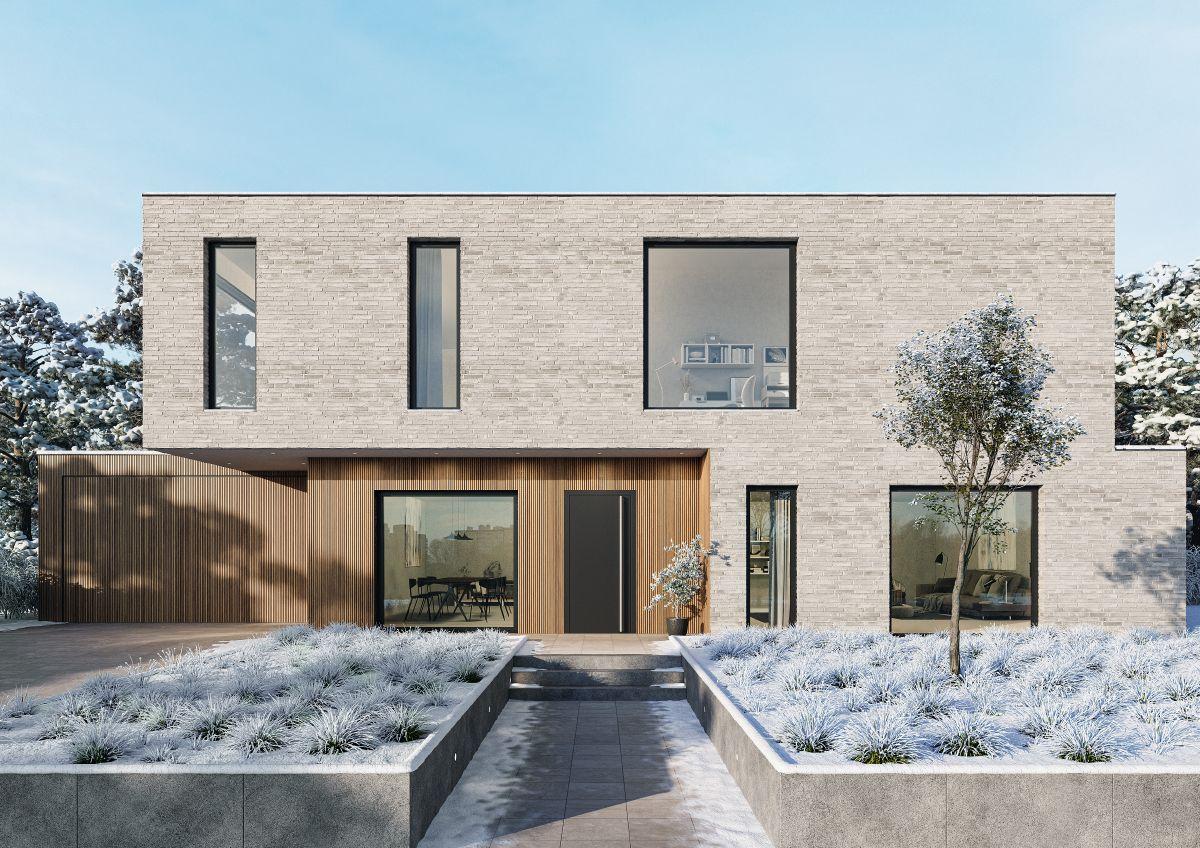

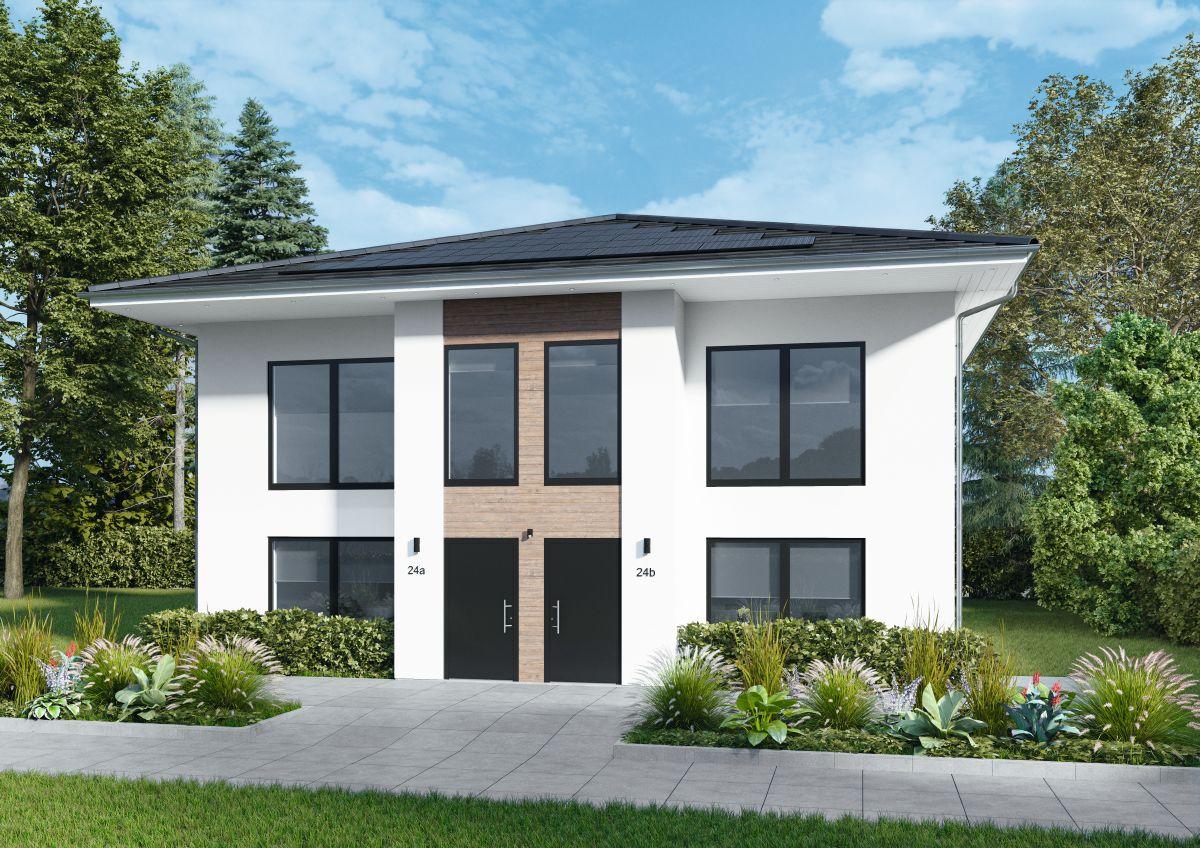

Area of application: Residential projects, Commercial projects
Opening type: Side-hung, Inward and outward, Single and double-vent

Certificates

Technical Characteristics

Max. height
2500 mm
Max. width
1250 mm
Max. glass/panel thickness
68 mm
Max. vent weight
160 kg
Min.-max. height
...2500 mm
Min.-max. width
...1250 mm
Min. face width
170 mm
Min.-max. glass/panel thickness
28...68 mm

Performance

Uf value of frame (≥)
1.1 W/(m²·K)
Air permeability
Class 4
Watertightness
Class 5A
Wind load resistance
Class C2 / B2
Burglar resistance
Up to RC 2
Impact resistance
Class 1
Max. sound reduction index Rwp
42 dB(A)

Characteristics

DIN direction
DIN LH / RH
Mechanical strength
Class 3
Proof of durability
Class 7, Class 8
CE marking
Yes

Choose color

RAL-1013
RAL-3005
RAL-5010
RAL-6005
RAL-6009
RAL-7005
RAL-7015
RAL-7016
RAL-7024
RAL-7030
RAL-7032
RAL-7035
RAL-7036
RAL-7037
RAL-7039
RAL-7040
RAL-7042
RAL-7043
RAL-8014
RAL-8017
RAL-9005
RAL-9006
RAL-9007
RAL-9010
RAL-9016
RAL-1013 MATT
RAL-1019 MATT
RAL-1035 MATT
RAL-5014 MATT
RAL-6009 MATT
RAL-6013 MATT
RAL-7006 MATT
RAL-7009 MATT
RAL-7015 MATT
RAL-7016 MATT
RAL-7021 MATT
RAL-7022 MATT
RAL-7024 MATT
RAL-7030 MATT
RAL-7035 MATT
RAL-7037 MATT
RAL-7039 MATT
RAL-7044 MATT
RAL-8011 MATT
RAL-8014 MATT
RAL-8019 MATT
RAL-9005 MATT
RAL-9010 MATT
RAL-9011 MATT
RAL-9016 MATT
window-color
RAL 3005
