Schüco Door System AD UP 75
Thermal insulation
Uf = 1.4 W/(m²·K)
Air permeability
Class 4 (EN 12207)
Watertightness
Class E750 (EN 12208)
Wind load resistance
Class C3/B3 (EN 12210)
Burglar resistance
Up to RC2 (EN 1627)
Description

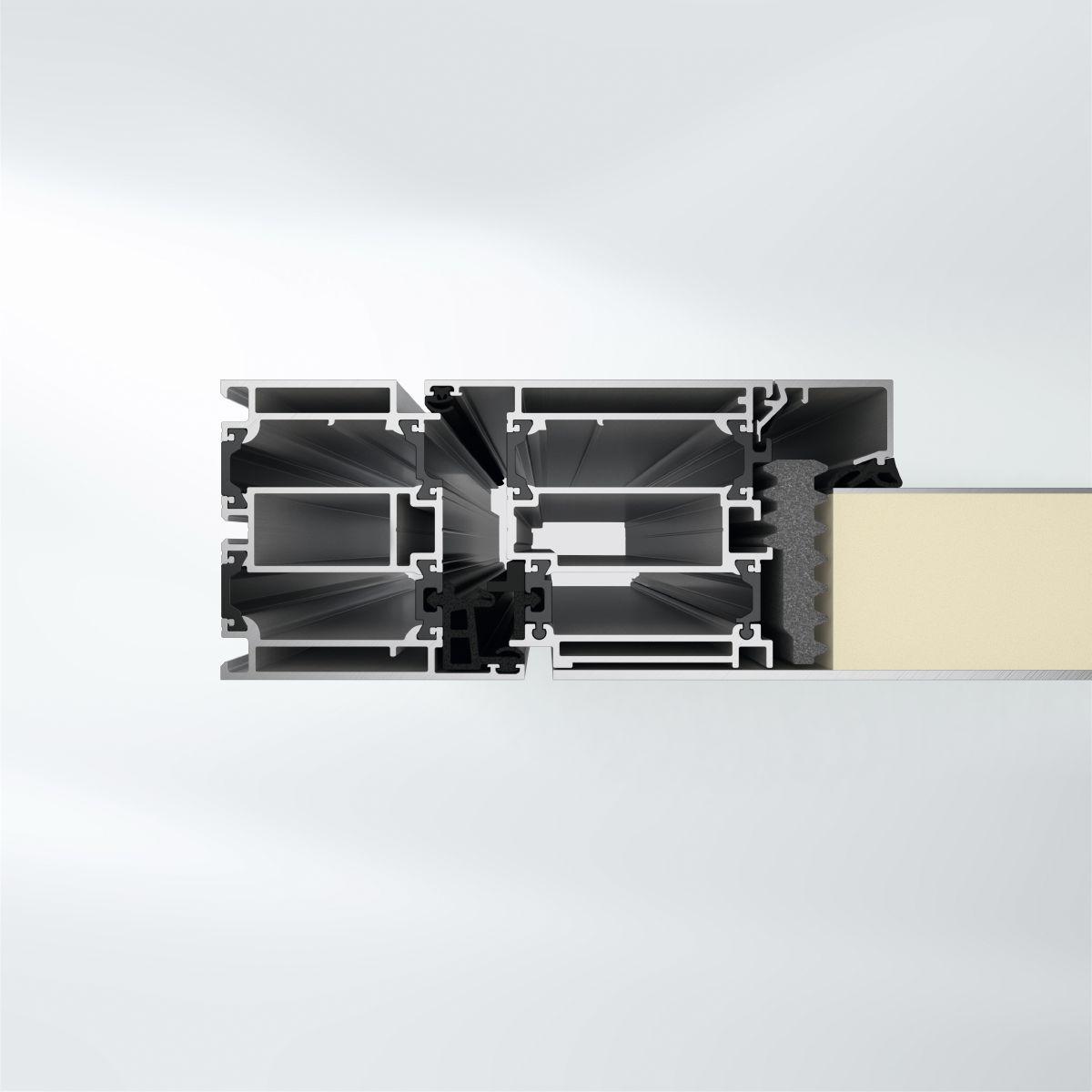

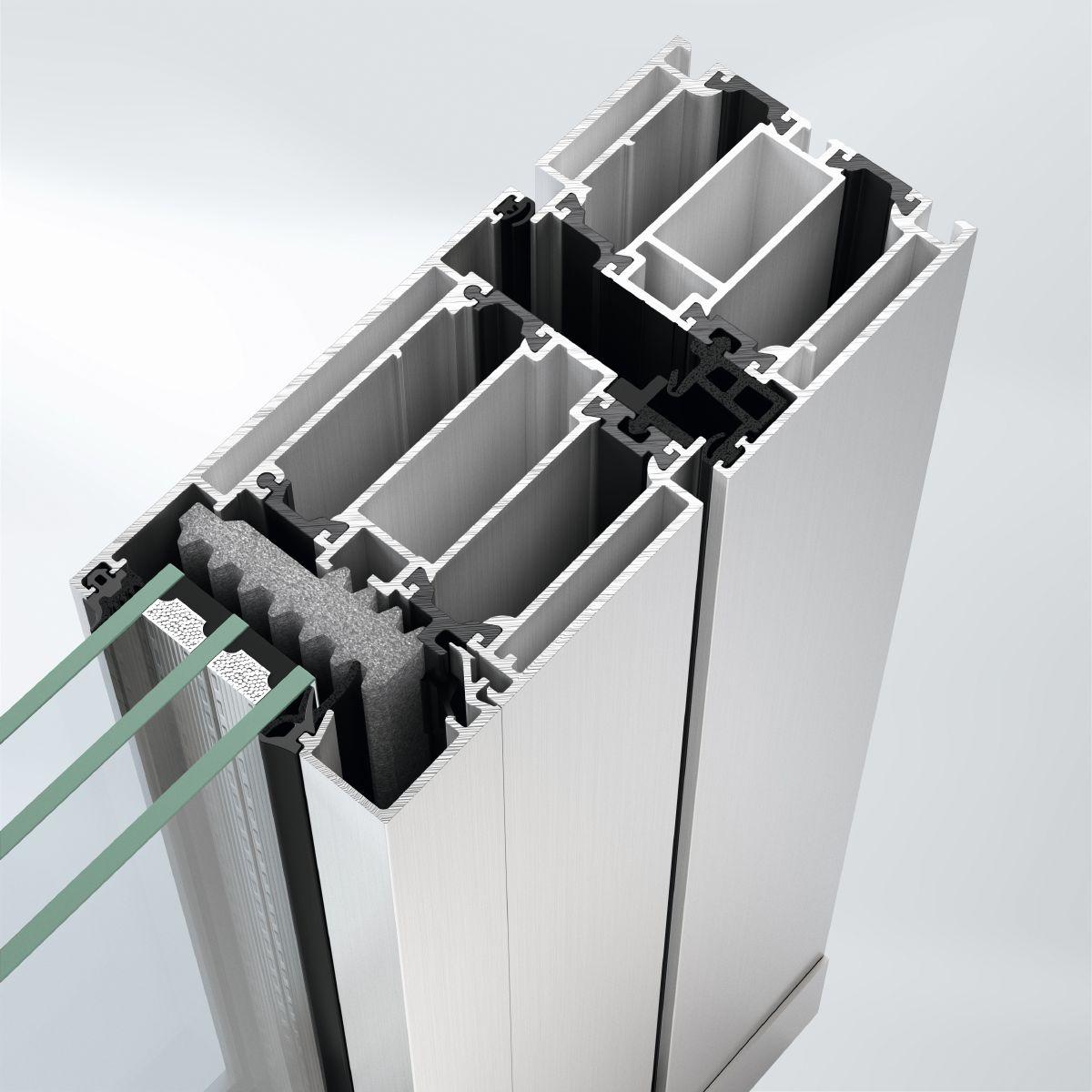

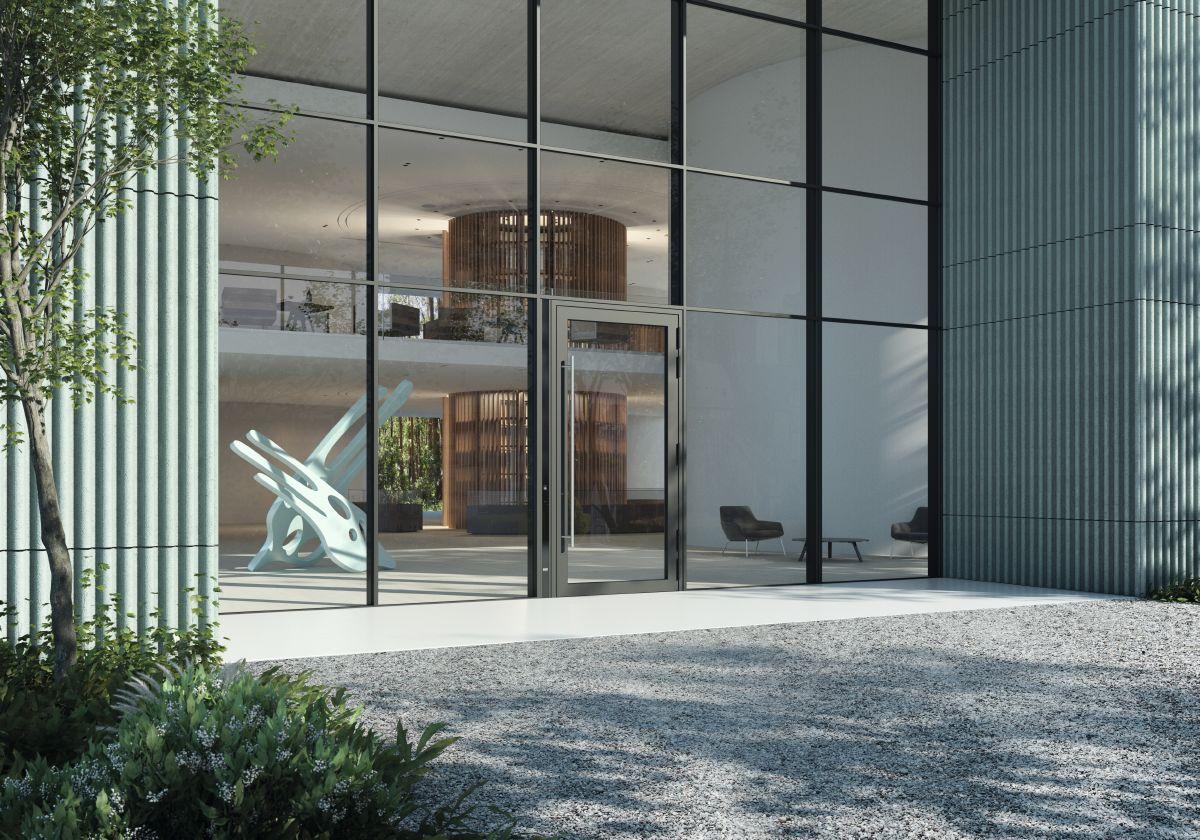

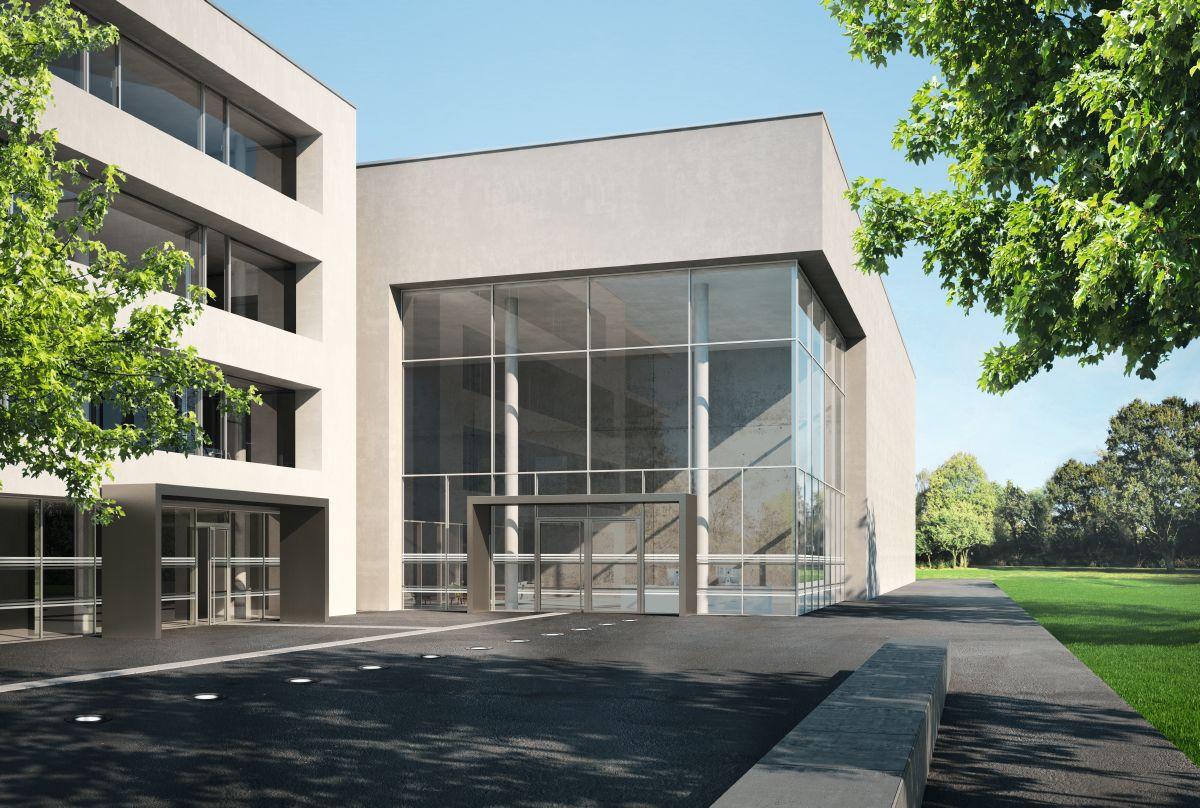

Schüco AD UP 75 - Thermal Performance Meets Structural Strength The Schüco AD UP 75 is a premium-grade thermally insulated aluminium door system, purpose-built for the rigorous demands of high-traffic commercial and residential environments. With a sturdy 75 mm basic depth, it delivers exceptional energy efficiency alongside robust mechanical strength. Designed for modern architectural needs, the system seamlessly integrates with advanced access control technologies, supporting intelligent building management and secure entry solutions. Its durable construction and refined aesthetics make it an ideal choice for projects requiring both performance and design excellence.
Advantages
High thermal insulation with Uf values from 1.6 W/(m²·K).
Supports large door sizes with heights up to 3000 mm and widths up to 1400 mm.
Enhanced security with burglar resistance up to RC2.
Compatible with various surface finishes including powder coating and anodizing.
Suitable for integration with building automation and access control systems.
Designed for high-traffic areas, ensuring durability and longevity.

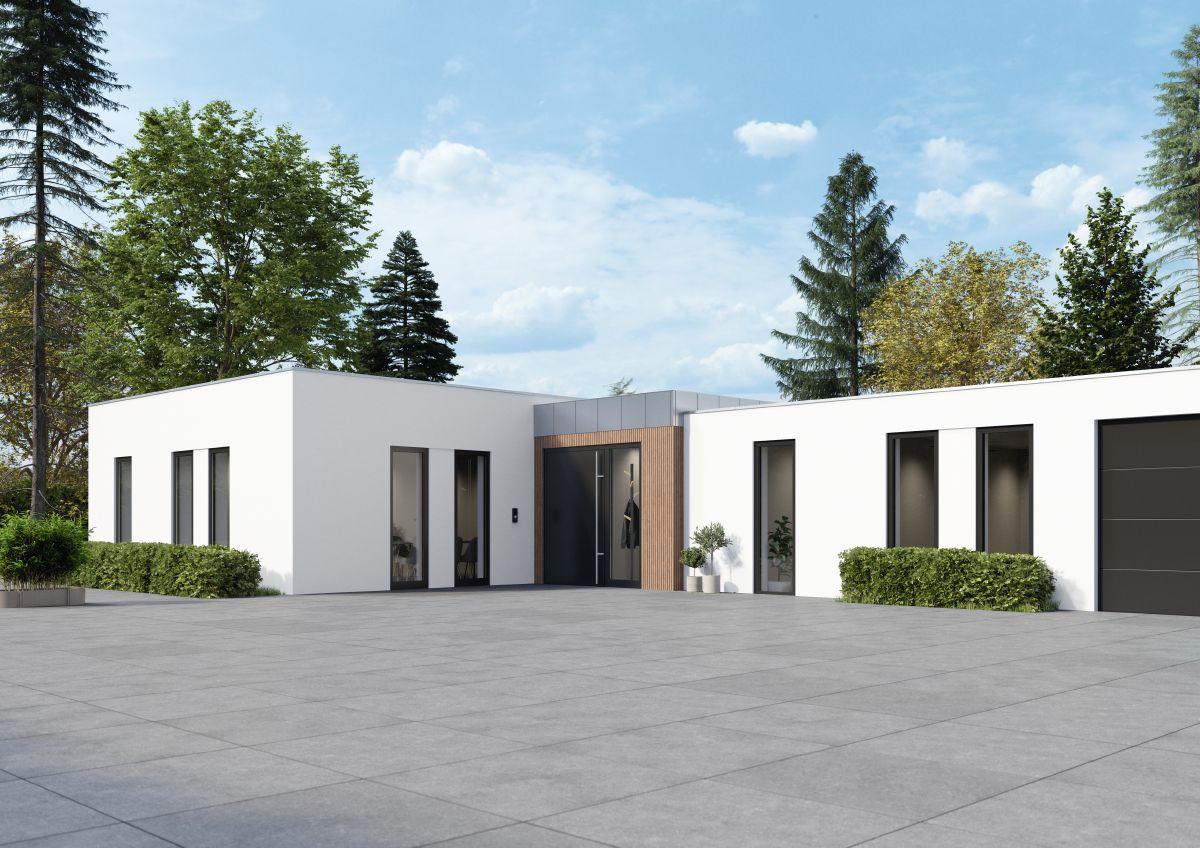

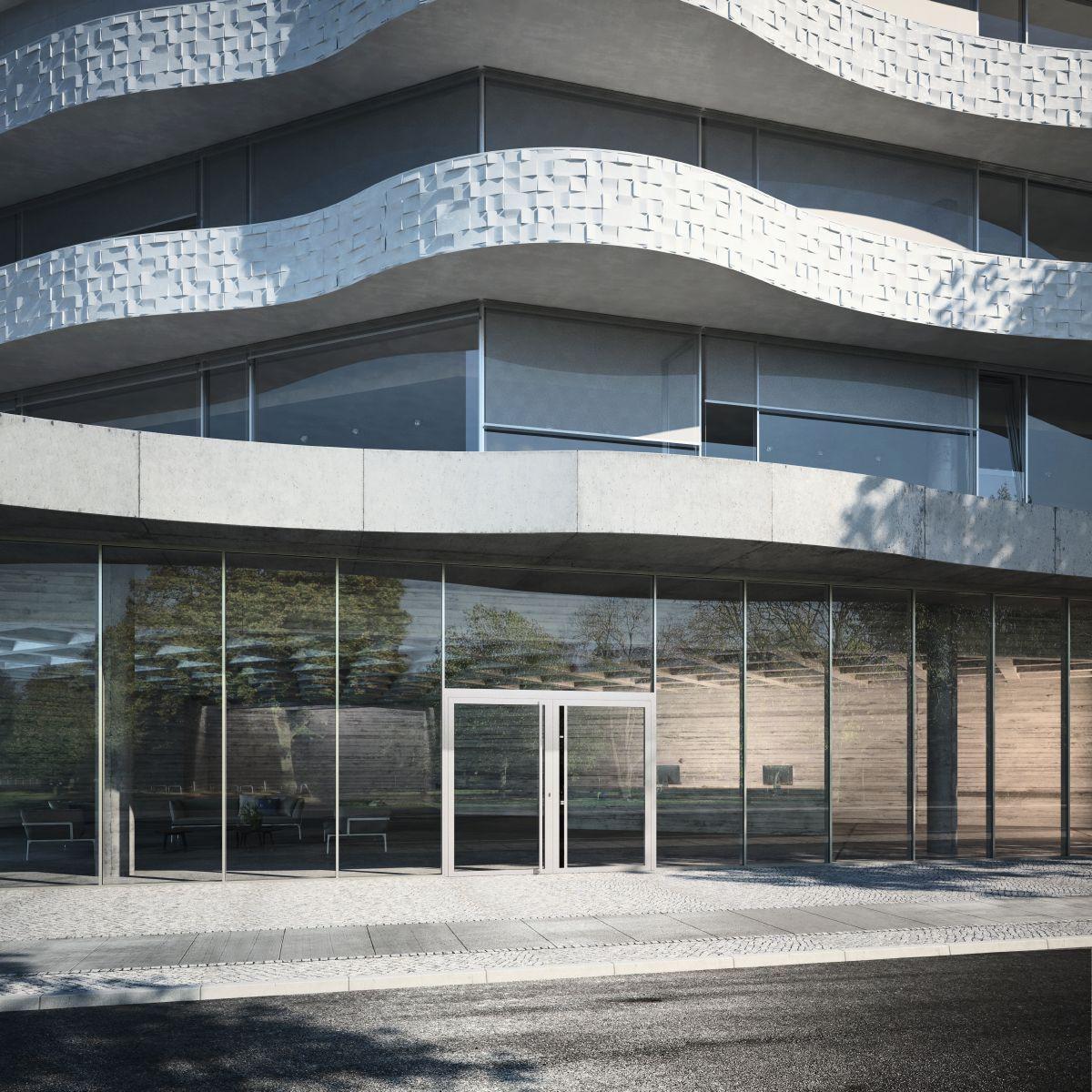

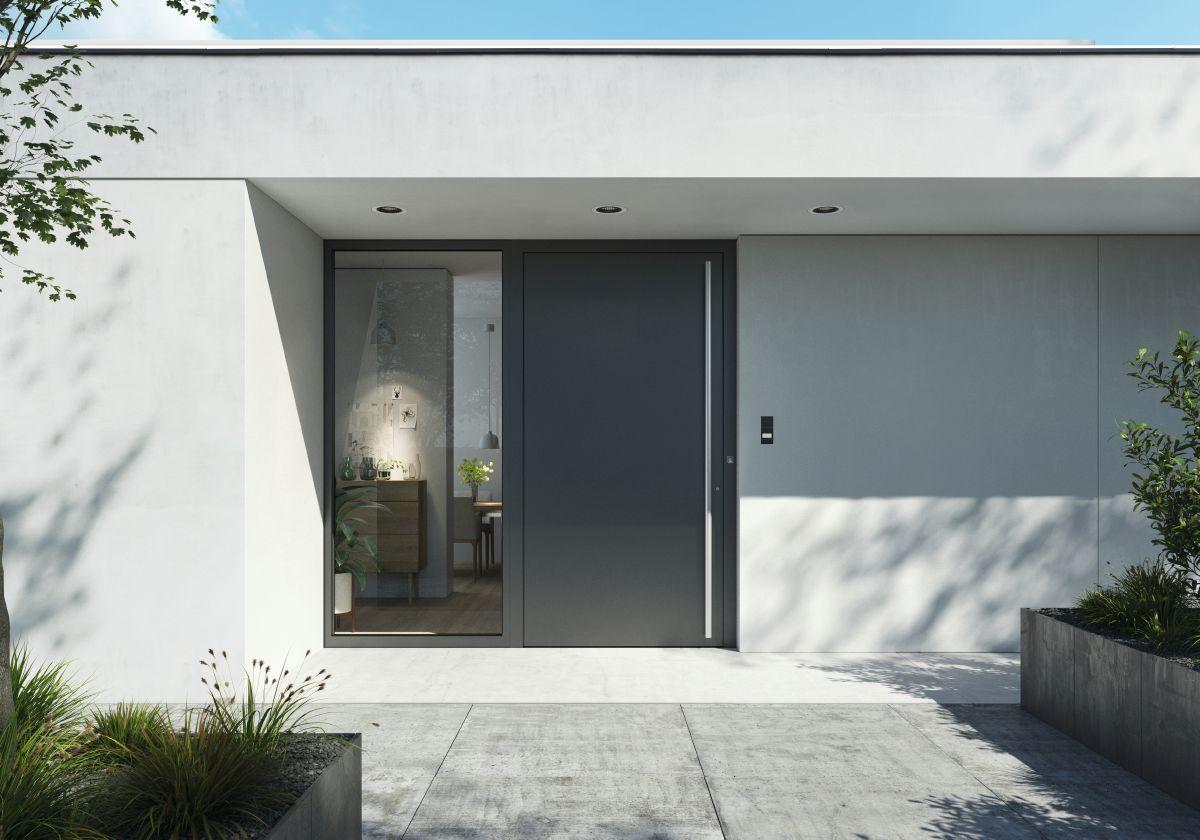

Area of application: Residential projects, Commercial projects

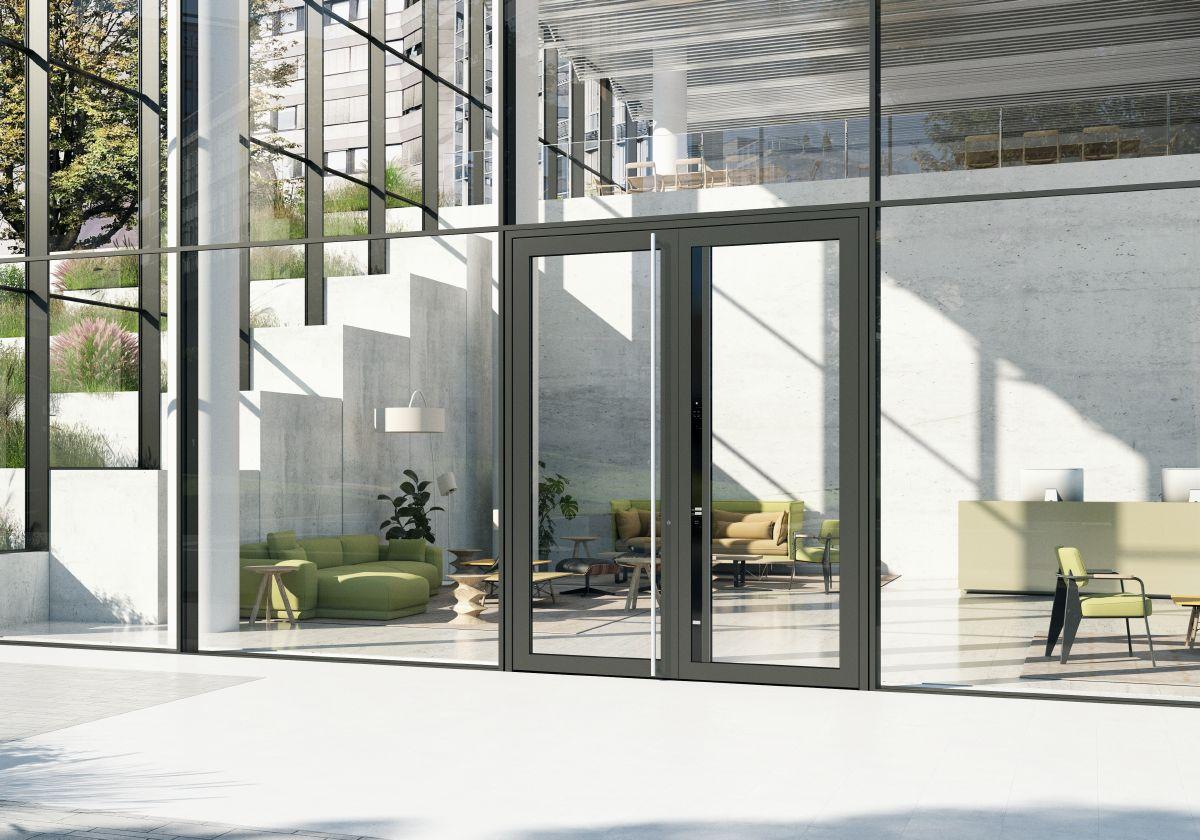

Opening type: Side-hung, Inward and outward, Single and double-vent
Certificates
Technical Characteristics
Max. height
3000 mm
Max. width
1400 mm
Max. glass/panel thickness
53 mm
Max. vent weight
200 kg
Min.-max. height
0...3000 mm
Min.-max. width
0...1400 mm
Min. face width
151 mm
Min.-max. glass/panel thickness
13...53 mm
Thick door leaf
75 mm
Performance
Uf value of frame (≥)
1.4 W/(m²·K)
Air permeability
Class 4
Watertightness
E 750
Wind load resistance
Class C3 / B3
Max. sound reduction index Rwp
42 dB(A)
Burglar resistance
Up to RC3
Impact resistance
Class 1
Mechanical strength
Class 3
Proof of durability
Class 7, Class 8
Characteristics

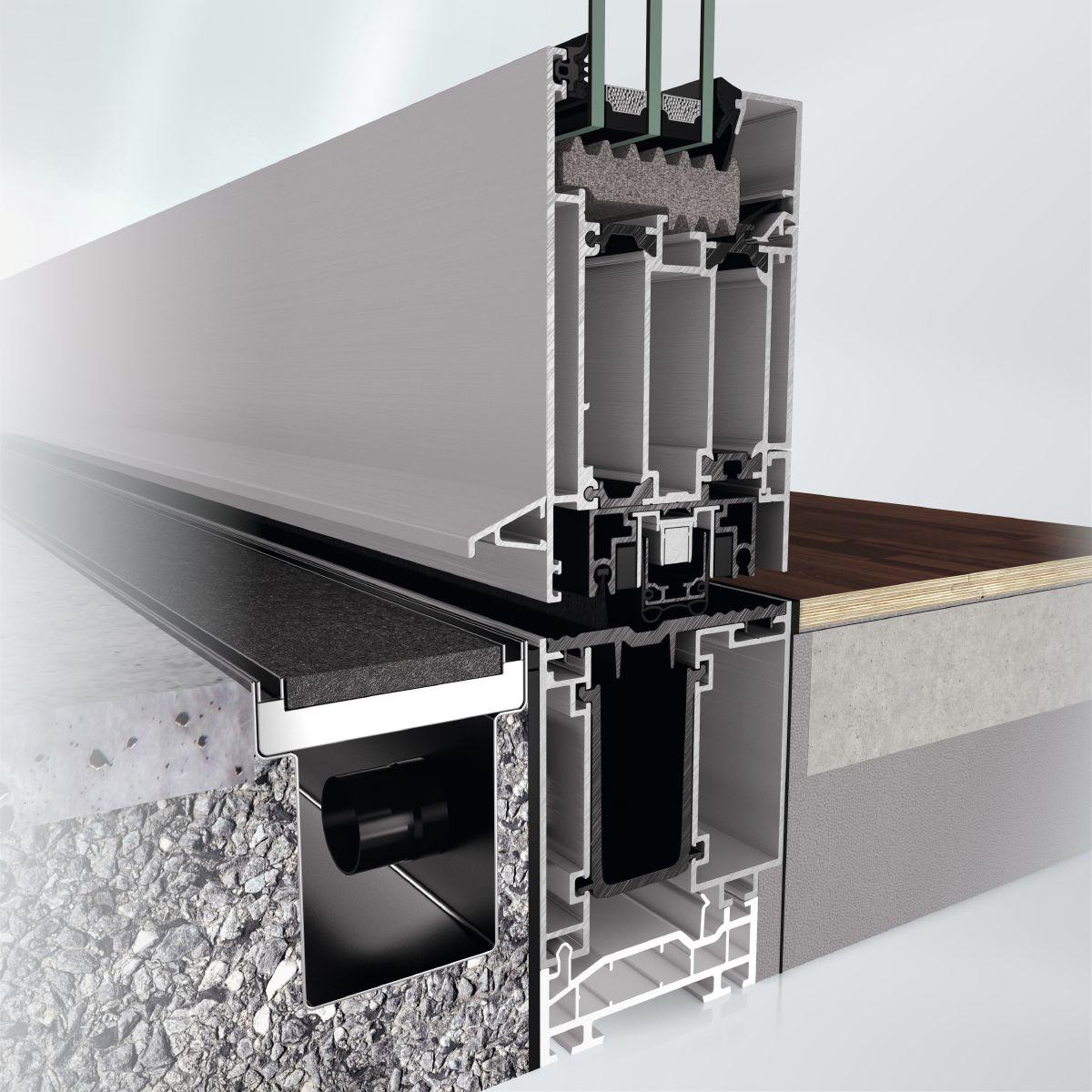

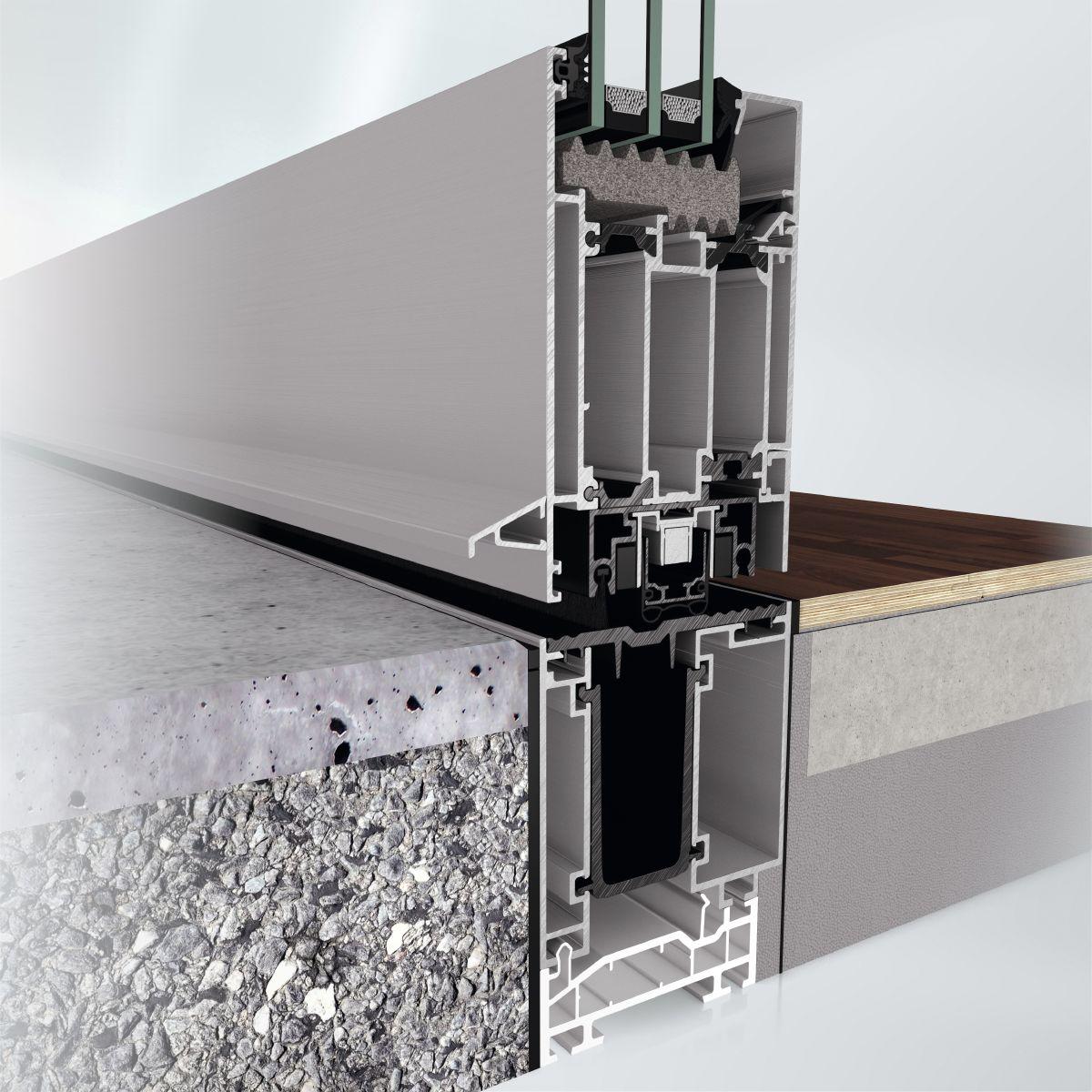

Zero-level threshold
Yes
Concealed fittings system
Yes
Neutral-colour fitting
Yes
Electric strikes
Yes
With panic function
Yes
Finger-trap protection
Yes
CE marking
Yes
Choose color
RAL 3005
